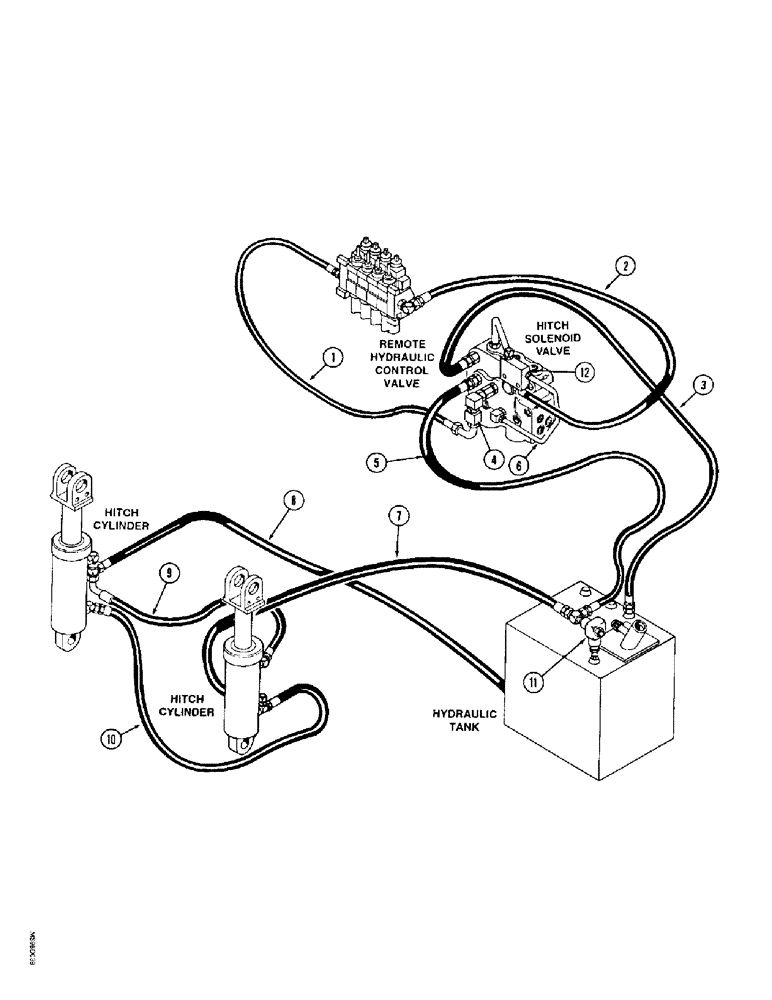

Запчасти Case IH 9350 (1-30) - PICTORIAL INDEX, THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, P.I.N. JEE0069665 AND AFTER (00) - PICTORIAL INDEX

1

Load Sense Line, 8-43

1шт.

2

Hitch Valve Supply Line, 8-43

1шт.

3

Hitch Valve Drain Hose, 8-43

1шт.

4

Shuttle Valve, 8-43

1шт.

5

Hitch Cylinder Supply Line, 8-43

1шт.

6

Pressure Reducing Valve Tube, 8-43

1шт.

7

Hitch Cylinder Supply Hose, 8-43, 8-45

1шт.

8

Hitch Cylinder Drain Hose, 8-43

1шт.

9

Hitch Cylinder to Hitch Cylinder Drain Hose, 8-43

1шт.

10

Hitch Cylinder to Hitch Cylinder Supply Hose, 8-43

1шт.

11

Relief Valve, 8-43, 8-57

1шт.

12

Pressure Relief Valve, 8-43, 8-57

1шт.
