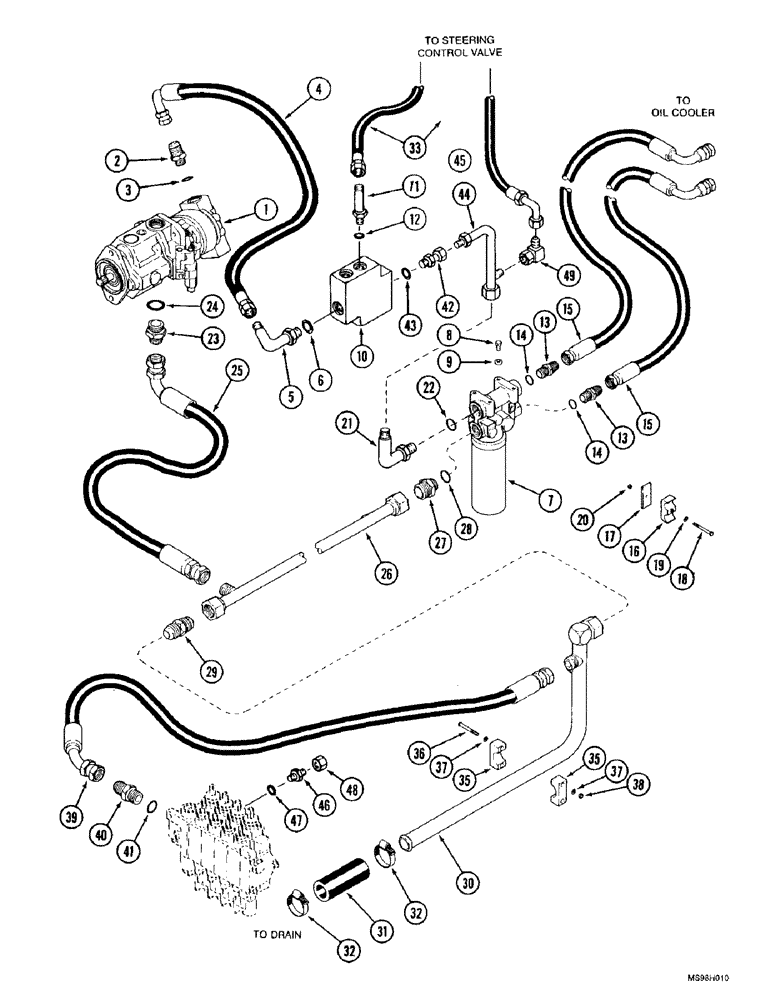

Запчасти Case IH 9350 (8-14) - HIGH OUTPUT HYDRAULIC SYSTEM, PUMP TO FILTER TO CONTROL VALVE (08) - HYDRAULICS

1

50-3548T93

PUMP

ASSEMBLY - tandem, parts list Figure 8-22

1шт.

1

50-3548T93R

REMAN-HYD PUMP

9350 CASE IH 4WD Tractor, Assembly, Tandem (6/95-8/00)

1шт.

1

50-3548T93C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

31-5053

HOSE

- 502 mm (19-3/4 inch) long, pump to priority valve

1шт.

5

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

7

50-3493T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-34

1шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

10

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-30

1шт.

11

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 12

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

31-2984

HOSE

- 3048 mm (120 inch) long, filter to oil cooler

2шт.

16

50-2534T1

CLAMP

- split, one-half

1шт.

17

50-2533T1

PLATE

- clamp support

1шт.

18

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

21

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

23

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8 inch O-ring, Includes: Ref. 24

1шт.

24

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

25

31-2990

HOSE

- 584 mm (23 inch) long, use with power shift tractor

1шт.

25

31-3066

HOSE ASSY.

HOSE - 627 mm (25 inch) long, use with synchroshift tractor

1шт.

26

50-3483T4

HYD TUBE

TUBE - hydraulic drain

1шт.

27

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

29

50-2565T1

VALVE

- check

1шт.

30

50-3484T1

HYD TUBE

TUBE - hydraulic, drain

1шт.

31

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

cut from 1-4482 bulk hose, see below 1.45" ID, 1.55" ID x 6.00"

1шт.

32

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adjustable

2шт.

33

31-2814

HOSE

- 711 mm (28 inch) long, steering sense line

1шт.

35

50-2884T1

CLAMP

- tube, set

1шт.

36

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

- hex, 1/4 NC x 3 inch, grade 8

2шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

38

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

39

31-2989

HOSE

- 737 mm (29 inch) long, Serial Range: valve-drain

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

42

31-3048

ADAPTER

- swivel, Includes: Ref. 43

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

44

50-2900T1

TUBE

- flow

1шт.

45

31-3013

HOSE

- 1118 mm (44 inch) long, priority valve to steering valve

1шт.

46

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss, Includes: Ref. 47

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

48

218-756

CAP,37 Degree, 7/8"-14

1шт.

49

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 7/8-14 flare x 1-1/16-12 inch swivel

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
