Запчасти Case IH 9350 (8-10) - HIGH OUTPUT HYDRAULIC SYSTEM, PUMP TO RESERVOIR, ROW CROP SPECIAL TRACTOR (08) - HYDRAULICS

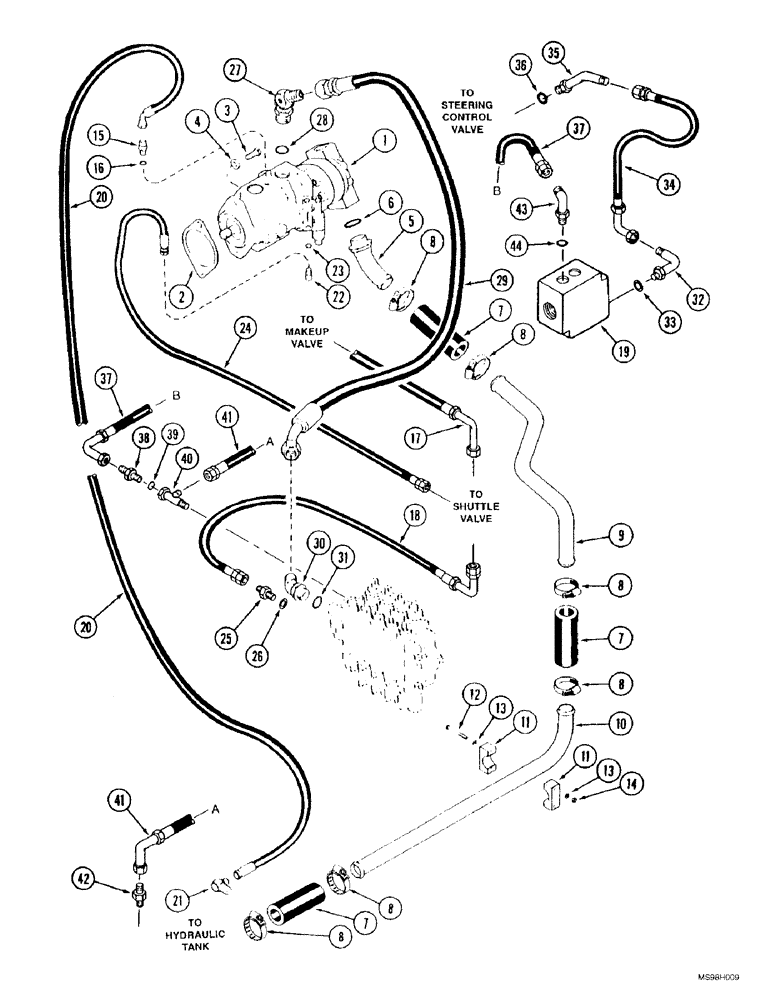

Схема запчастей Case IH 9350 - (8-10) - HIGH OUTPUT HYDRAULIC SYSTEM, PUMP TO RESERVOIR, ROW CROP SPECIAL TRACTOR (08) - HYDRAULICS
15
8
44
33
37
3
29
30
1
38
24
10
27
21
6
26
9
20
22
8
23
2
17
43
42
8
36
13
7
37
39
41
8
16
12
13
11
20
28
4
7
31
32
8
5
34
19
25
35
40
18
11
41
7
8
14

Артикул

Название

Примечание

Количество

1

50-3619T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, parts list Figure 8-22

1шт.

2

18-1176T1

GASKET

- pump

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

31-2529

TUBE

ELBOW - 45 degree, special, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

7

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

cut from 1-4482 bulk hose, see below 1.45" ID, 1.55" ID x 6.00"

3шт.

8

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adjustable

6шт.

9

50-2838T2

TUBE

-, Serial Range: pump-tank

1шт.

10

50-2840T1

TUBE

-, Serial Range: pump-tank

1шт.

11

50-2884T1

CLAMP

- tube, set

1шт.

12

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

- hex, 1/4 NC x 3 inch, grade 8

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

17

31-3019

HOSE ASSY.

HOSE - 1676 mm (66 inch) long, shuttle valve to makeup valve, see Figure 5-22 for correct orientation

1шт.

18

31-3209

HOSE

- 678 mm (27 inch) long, shuttle valve to control valve, see Figure 5-26 for correct orientation

1шт.

19

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-30

1шт.

20

31-3055

HOSE

- 1727 mm (68 inch) long, Serial Range: pump-tank

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

22

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring boss, Incl. Ref. 23

1шт.

24

31-3122

HOSE

- 1600 mm (63 inch) long, to shuttle valve

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 26

1шт.

27

31-2695

ELBOW

- 45 degree, adj, 1-5/16-12 O-ring x 1/8-27 inch flare PT, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

29

31-3054

HOSE

- 1372 mm (54 inch) long, Serial Range: pump-valve

1шт.

30

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

31-1041

HOSE,19.05mm ID x 838mm L

- 838 mm (33 inch) long, priority valve to steering valve

1шт.

35

218-5527

ELBOW,45 Degree, 1 1/16"-12 x 3/4"-16, 37 Degree

45º, 1-1/16-12 flare x 3/4-16 inch adj O-ring, Incl. Ref 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

31-3039

HOSE

- 1778 mm (70 inch) long, priority valve to remote valve

1шт.

38

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 39

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

40

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

41

31-1224

HOSE

- 559 mm (22 inch) long, remote, Serial Range: valve-tank

1шт.

42

218-1088

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/16-20 flare x 1/2 inch PT

1шт.

43

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 44

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

44

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 45
