Запчасти Case IH 9350 (8-02) - STANDARD HYDRAULIC SYSTEM, PUMP TO RESERVOIR, 9350 MODELS EXCEPT ROW CROP SPECIAL (08) - HYDRAULICS

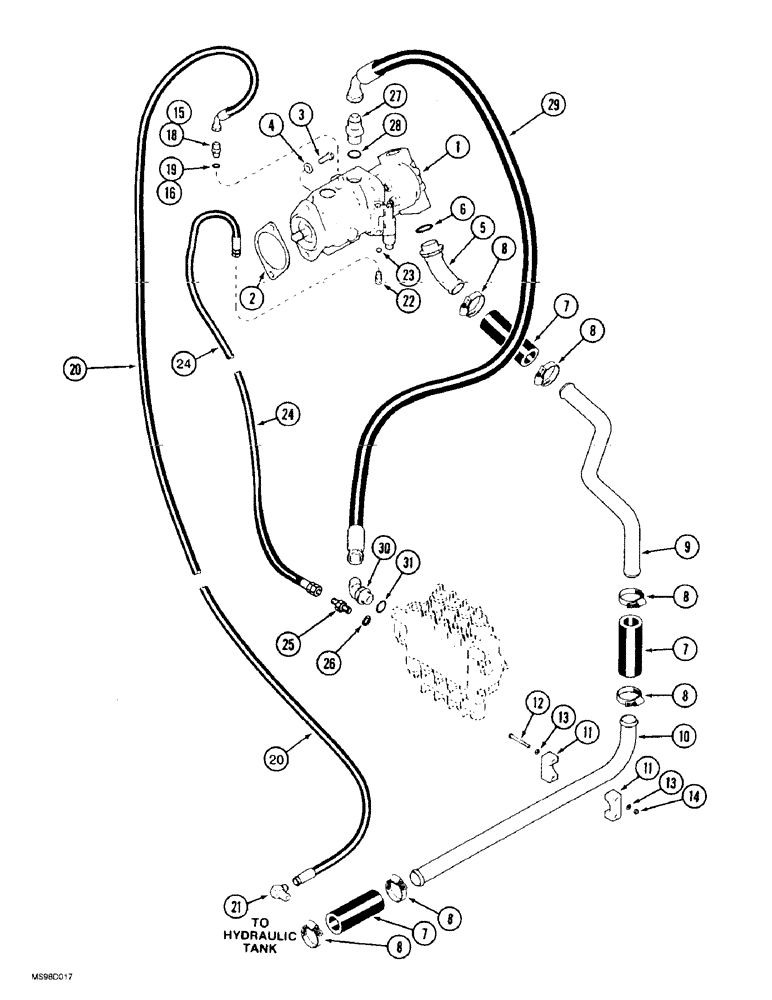

Схема запчастей Case IH 9350 - (8-02) - STANDARD HYDRAULIC SYSTEM, PUMP TO RESERVOIR, 9350 MODELS EXCEPT ROW CROP SPECIAL (08) - HYDRAULICS
27
8
6
10
7
11
29
16
26
18
19
25
24
8
4
13
7
5
20
22
9
24
31
8
14
21
8
8
3
20
1
2
11
28
15
12
8
13
7
30
23

Артикул

Название

Примечание

Количество

1

50-3548T93

PUMP

ASSEMBLY - tandem, parts list Figure 8-22

1шт.

1

50-3548T93R

REMAN-HYD PUMP

9350 Case IH 4WD Tractor, Assembly, Tandem (6/95-8/00)

1шт.

1

50-3548T93C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

18-1176T1

GASKET

- pump

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

31-2529

TUBE

ELBOW - 45 degree, special, at pump, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

7

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

cut from 1-4482 bulk hose, see below 1.45" ID, 1.55" ID x 6.00"

1шт.

8

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

6шт.

9

50-2838T2

TUBE

-, Serial Range: pump-tank

1шт.

10

50-2840T1

TUBE

-, Serial Range: pump-tank

1шт.

11

50-2884T1

CLAMP

- tube, set

1шт.

12

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, if used, Includes: Ref. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, if used, Incl. Ref 19 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

31-3021

HOSE

- breather, 1727 mm (68 inch) long, Serial Range: pump-tank

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

22

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring boss, Incl. Ref. 23

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

31-3122

HOSE

- 1600 mm (63 inch) long, control valve, replaces 31-3057 hose

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 26

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

29

31-3054

HOSE

- 1372 mm (54 inch) long, Serial Range: pump-valve

1шт.

30

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

Выбрано товаров: 33
