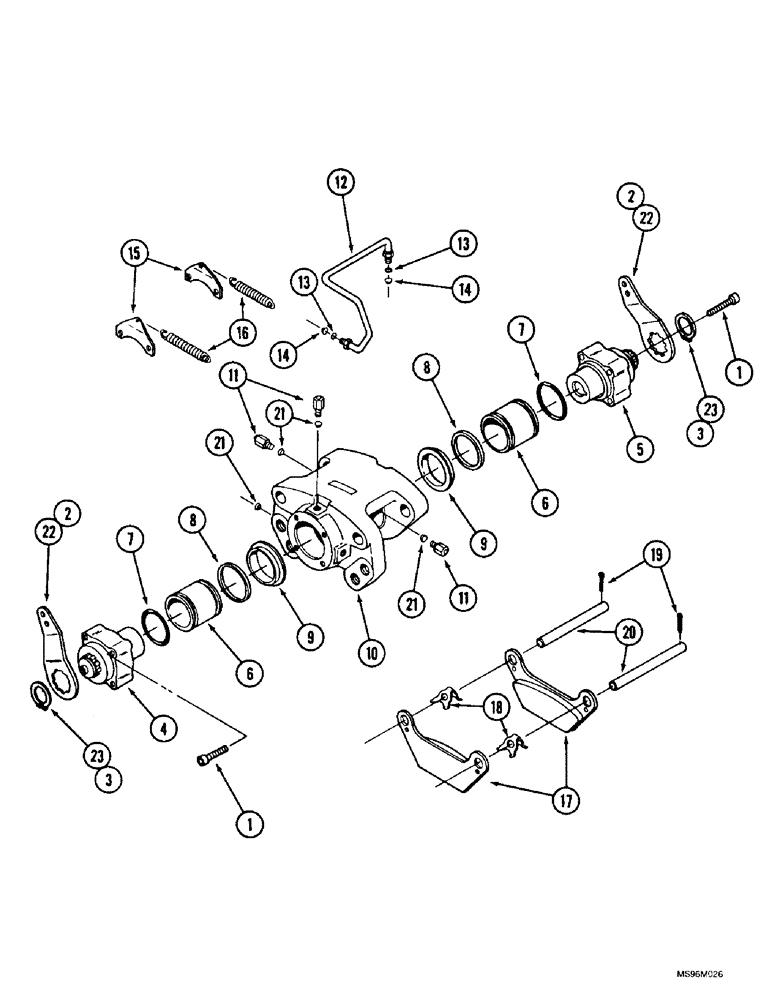

Запчасти Case IH 9350 (7-10) - BRAKE CALIPER ASSEMBLY (07) - BRAKES

90-8368T92

BRAKE CALIPER

CALIPER ASSEMBLY - brake, replaces 90-7650T91 caliper, Includes: Ref. 1 - 21

1шт.

For calipers prior to P.I.N. JEE0037591, replace the included parking brake levers with levers from the existing caliper or order 90-7656T2 lever kit.

1шт.

90-8368T92R

REMAN-BRAKE ASSY.

Reman For 9350

1шт.

90-8368T92C

CORE-BRAKE ASSY.

Return Number

1шт.

1

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

BOLT - hex socket, 3/8 NC x 2-1/4 inch

8шт.

2

90-8362T1

BRAKE LEVER

LEVER - parking brake, Start Serial: JEE0037591

1шт.

3

800-44035

SNAP RING,M35, Ext

RING - external retaining, No. 35

1шт.

4

90-7655T2

ACTUATOR

- parking brake, right-hand

1шт.

5

90-7654T2

ACTUATOR

- parking brake, left-hand

1шт.

90-7651T2

KIT

- piston, Includes one each of Ref. 6 - 9

2шт.

Includes solid fiber insulator disc, not illustrated and NSS. See print of kit for illustration.

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

90-7652T2

SEAL KIT

KIT - seal, includes Ref. not used in this caliper, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

8

A46968

SEAL

- piston

2шт.

9

A46969

BELLOWS

BOOT - dust

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - brake

1шт.

11

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

90-7632T2

SERVICE KIT

KIT - tube, brake, Includes: Ref. 12 - 14

1шт.

12

90-7631T1

TUBE

- brake, order 90-7632T2 kit

1шт.

13

90-7316T1

O-RING

- seal

2шт.

14

A46961

INSERT

SEAT - bleeder screw insert

2шт.

90-7653T2

KIT

- return spring, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

BRACKET - return

2шт.

16

90-2902T1

SPRING

- return

2шт.

90-7506T2

BRAKE LINING

KIT - pad and holder assembly, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PAD - brake

2шт.

18

90-7507T1

SPRING

- release, brake pad

2шт.

19

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

20

A46971

PIN

- brake pad mounting

2шт.

21

A46961

INSERT

SEAT - bleeder screw insert

4шт.

90-7656T2

LEVER

KIT - lever, parking brake, Includes: Ref. 22 and 23, Serial Range: -JEE0037591

2шт.

For calipers prior to P.I.N. JEE0037591, replace the included parking brake levers with levers from the existing caliper or order 90-7656T2 lever kit.

1шт.

22

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

23

800-44035

SNAP RING,M35, Ext

RING - external retaining, No. 35

1шт.
