Запчасти Case IH 9350 (7-06) - BRAKE SYSTEM, STEERING AND RIGID AXLES (07) - BRAKES

1

90-8368T92

BRAKE CALIPER

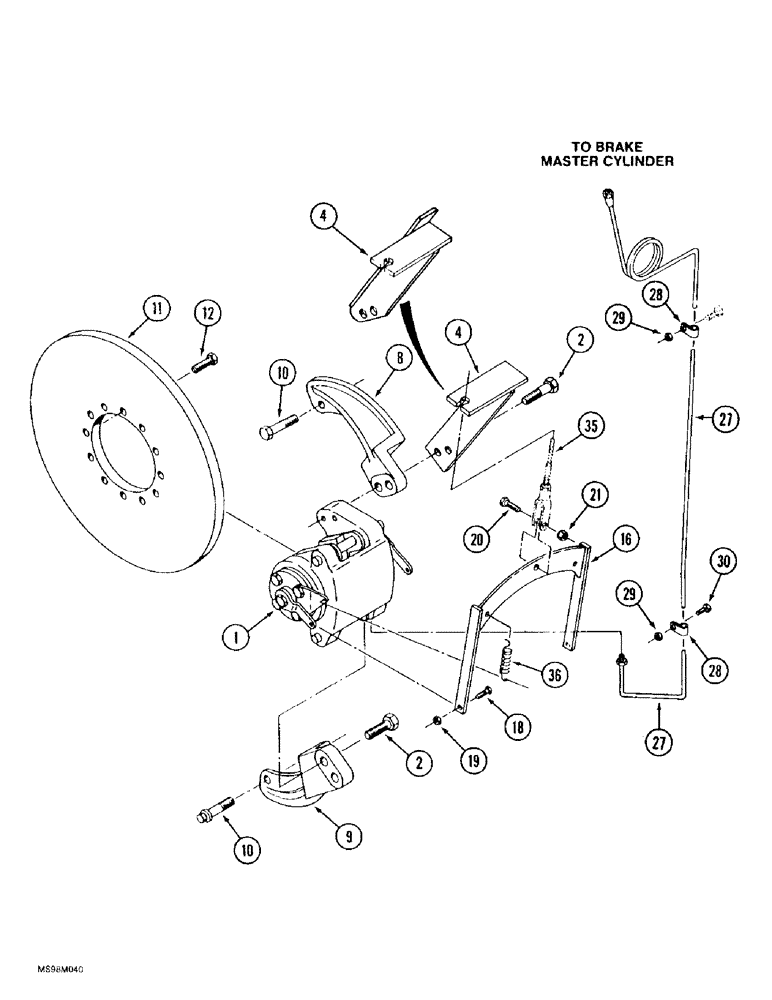

CALIPER ASSEMBLY - brake, replaces 90-7650T91 caliper, parts list Figure 7-10

1шт.

For calipers prior to P.I.N. JEE0037591, replace the included parking brake levers with levers from the existing caliper or order 90-7656T2 lever kit.

1шт.

90-8368T92R

REMAN-BRAKE ASSY.

Reman For 9350

1шт.

90-8368T92C

CORE-BRAKE ASSY.

Return Number

1шт.

2

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8

4шт.

4

90-6347T2

SUPPORT

BRACKET - retaining, parking brake cable, Serial Range: -JEE0037591

1шт.

4

90-8309T1

SUPPORT

BRACKET - retaining, parking brake cable, Start Serial: JEE0037591

1шт.

8

90-6909T1

SUPPORT

MOUNT - caliper, upper

1шт.

9

90-6907T1

SUPPORT

MOUNT - caliper, lower

1шт.

10

514-928

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

- hex, 14 - 1.5 x 60 mm, class 10.9

6шт.

11

90-4574T1

BRAKE DISC

DISC - brake

1шт.

12

428-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- hex, 1/2 NF x 1-1/2 inch, grade 8

12шт.

16

90-8381T1

SUPPORT

BRACKET - actuating, park brake

1шт.

18

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

27

90-7341T2

TUBE,0.25" OD x 51.66" L

- to brake master cylinder, use on 9350 RCS tractor

1шт.

27

90-7103T2

TUBE,0.25" OD x 51.65" L

- to brake master cylinder, use on 9350 standard tractor

1шт.

28

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

35

60-7004T1

CABLE,2529.33mm L

- actuating, parking brake, see Figure 7-4 for in-cab mounting

1шт.

36

90-2902T1

SPRING

- return, parking brake, part of Ref. 1 caliper assembly

1шт.
