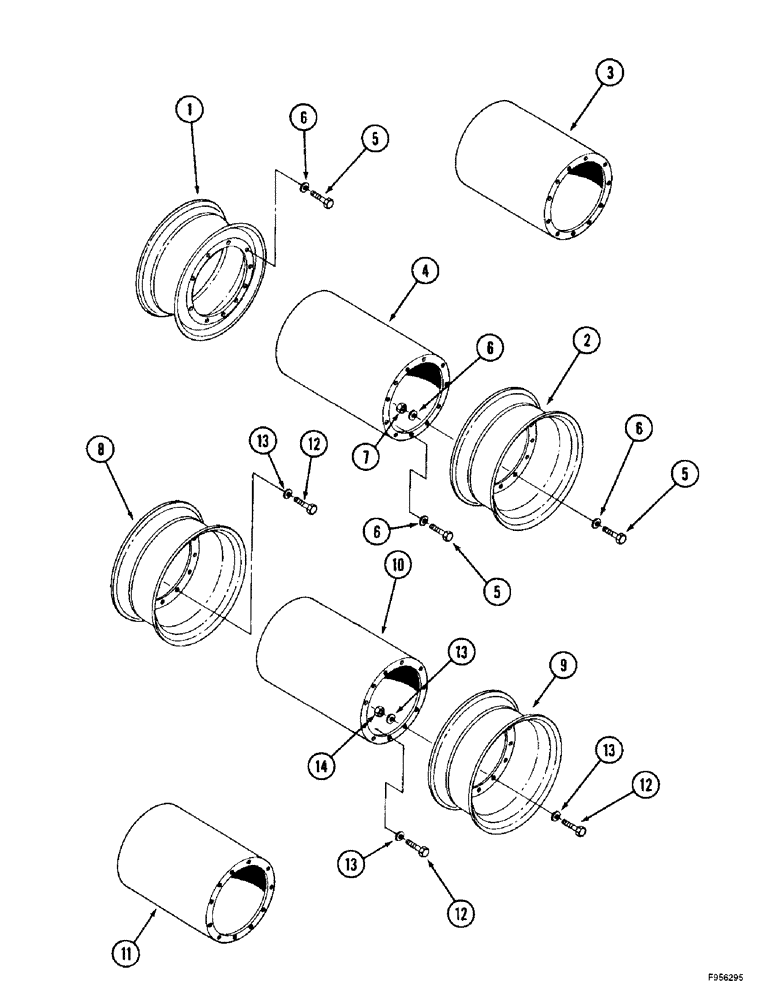

Запчасти Case IH 9350 (6-216) - WHEELS AND SPACERS, ONE METER ROWS, 18.4 X 42 INCH TIRES (06) - POWER TRAIN

1

30-1615T1

RIM

WHEEL - inner or dual, Front Axle, 18.4 x 42 inch, 16 inch width

2шт.

2

30-1616T1

RIM

WHEEL - inner or dual, Front Axle, 18.4 x 42 inch, 16 inch width

2шт.

3

30-1617T3

HUB

SPACER - wheel, dual mounting, Front Axle

2шт.

4

30-1618T3

HUB

SPACER - wheel, dual mounting, Front Axle

2шт.

5

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Front Axle

40шт.

6

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened, Front Axle

60шт.

7

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8, Front Axle

20шт.

8

30-1616T1

RIM

WHEEL - inner or dual, Rear Axle, 18.4 x 42 inch, 16 inch width

2шт.

9

30-1615T1

RIM

WHEEL - inner or dual, Rear Axle, 18.4 x 42 inch, 16 inch width

2шт.

10

30-1617T1

SPACER

- wheel, dual mounting, 18-3/4 inch width, Rear Axle

2шт.

11

30-1618T1

SPACER

- wheel, dual mounting, 32-1/4 inch width, Rear Axle

2шт.

12

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Rear Axle

40шт.

13

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened, Rear Axle

60шт.

14

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8, Rear Axle

20шт.
