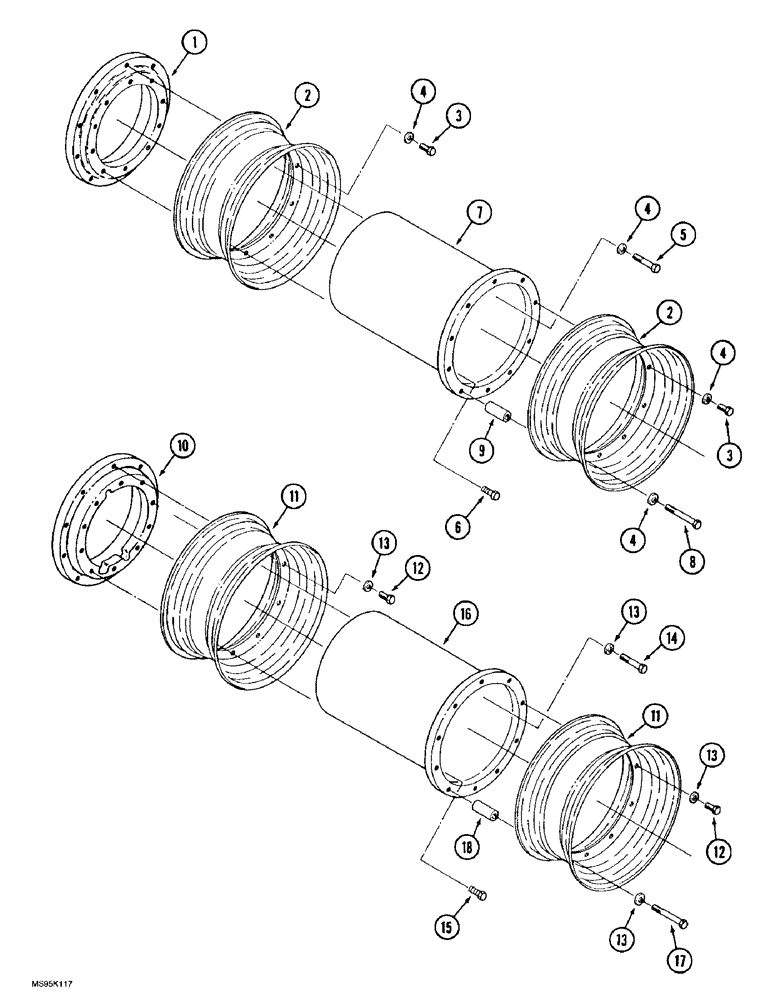

Запчасти Case IH 9350 (6-214) - WHEELS, HUBS AND SPACERS, 36, 38, AND 40 INCH ROWS, ROW CROP SPECIAL TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
30-1442T1
HUB
- mounting, wheel, Front Axle
2шт.
2
30-1524T1
RIM
WHEEL - inner or dual, Front Axle, 18.4 x 38, 16 inch width
4шт.
2
30-1533T1
RIM
WHEEL - inner and outer, Front Axle, 18.4 x 42, 16 inch width
4шт.
2
30-1527T1
RIM
WHEEL - inner or dual, Front Axle, 20.8 x 38, 18 inch width
4шт.
2
30-1483T1
RIM
WHEEL - row crop, Front Axle, 14.9 x 46 inch, or M420/80R46
4шт.
3
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Front Axle
40шт.
4
70-5535T1
WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk
- flat, hardened, Front Axle
60шт.
5
426-1472
BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8
- hex, 7/8 NC x 4-1/2 inch, grade 8, Front Axle
16шт.
6
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Front Axle
4шт.
7
30-1461T2
SPACER
- wheel, dual mounting, Front Axle
2шт.
8
426-14104
BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 8
- hex, 7/8 NC x 6-1/2 inch, grade 8, Front Axle
20шт.
9
30-1471T1
SPACER
- mounting, wheel, wide spacing, Front Axle
20шт.
10
30-1628T1
HUB
- mounting, wheel, Rear Axle
2шт.
11
30-1524T1
RIM
WHEEL - inner or dual, Rear Axle, 18.4 x 38, 16 inch width
4шт.
11
30-1533T1
RIM
WHEEL - inner and outer, Rear Axle, 18.4 x 42, 16 inch width
4шт.
11
30-1527T1
RIM
WHEEL - inner or dual, Rear Axle, 20.8 x 38, 18 inch width
4шт.
11
30-1483T1
RIM
WHEEL - row crop, Rear Axle, 14.9 x 46 inch, or M420/80R46
4шт.
12
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Rear Axle
40шт.
13
70-5535T1
WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk
- flat, hardened, 7/8 x 1-3/4 x1/4 inch, Rear Axle
60шт.
14
426-1472
BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8
- hex, 7/8 NC x 4-1/2 inch, grade 8, Rear Axle
16шт.
15
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, Rear Axle
4шт.
16
30-1626T1
SPACER
- wheel, dual mounting, Rear Axle
2шт.
17
426-14104
BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 8
- hex, 7/8 NC x 6-1/2 inch, grade 8, Rear Axle
20шт.
18
30-1471T1
SPACER
- mounting, wheel, wide spacing, Rear Axle
20шт.
Выбрано товаров: 24
