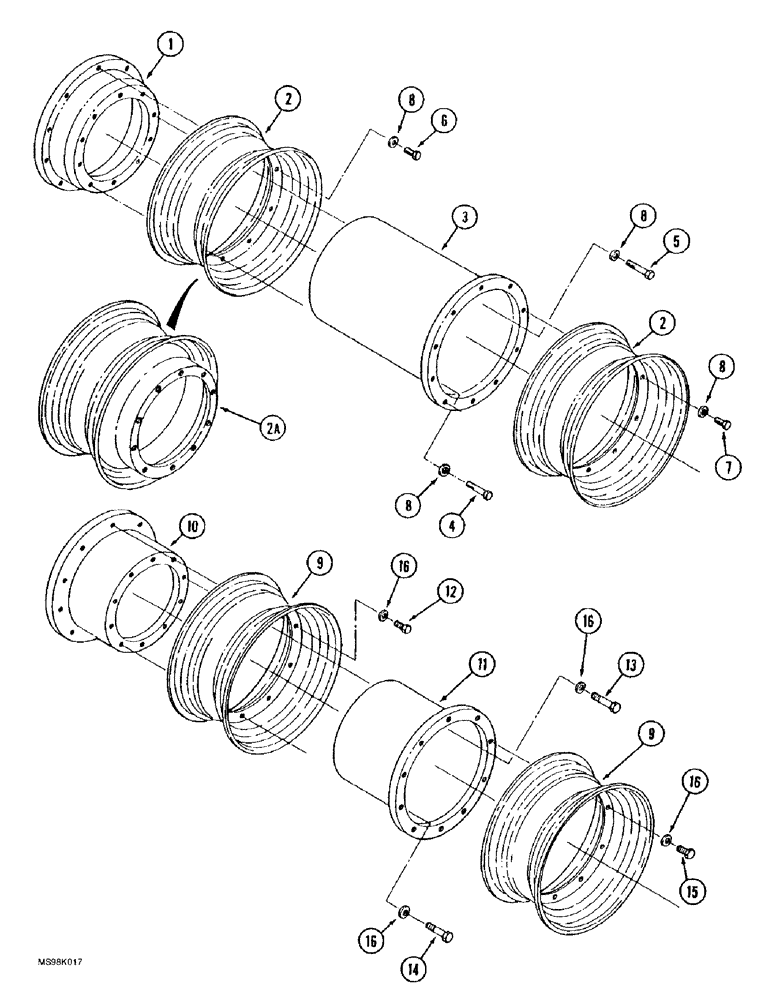

Запчасти Case IH 9350 (6-210) - WHEELS, HUBS, AND SPACERS, ROW CROP SPECIAL TRACTOR, 30 INCH ROWS, 18.4 X 42 INCH TIRES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
30-1442T1
HUB
- mounting, wheel, and spacer, Front Axle, Serial Range: -JEE0071042
2шт.
2
30-1533T1
RIM
WHEEL - inner and outer, Front Axle, Serial Range: -JEE0071042
4шт.
2a
30-1647T1
WHEEL
- inner, Front Axle, Start Serial: JEE0071042
2шт.
3
30-1654T1
WHEEL
SPACER - wheel, dual mounting, replaces 30-1596T2 spacer, Front Axle
2шт.
4
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, 2-1/2 inch thread length, wheel mounting hub to axle hub, Front Axle
4шт.
5
426-1472
BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8
- hex, 7/8 NC x 4-1/2 inch, grade 8, spacer and wheel mounting hub to axle hub, Front Axle, Serial Range: -JEE0071042
16шт.
5
426-1456
BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8
- hex, 7/8 NC x 3-1/2 inch, grade 8, Front Axle, Start Serial: JEE0071042
16шт.
6
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, 2-1/2 inch thread length, inner wheel to wheel mounting hub, Front Axle
20шт.
7
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, outer wheel to dual wheel spacer, Front Axle
20шт.
8
70-5535T1
WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk
- flat, hardened, 7/8 x 1/4 inch, Front Axle
60шт.
9
30-1533T1
RIM
WHEEL - inner and outer, Rear Axle
4шт.
10
30-1582T2
SPACER
- wheel, inner, dual mounting, Rear Axle, 11-7/16 inch wide
2шт.
11
30-1585T2
SPACER
- wheel, outer, dual mounting, Rear Axle, 15-15/16 inch wide
2шт.
12
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, 2-1/2 inch thread length, inner spacer to axle hub, Rear Axle
4шт.
13
426-1472
BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8
- hex, 7/8 NC x 4-1/2 inch, grade 8, inner and outer spacer to axle hub, Rear Axle
16шт.
14
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, 2-1/2 inch thread length, inner wheel to inner spacer, Rear Axle
20шт.
15
70-6402T1
SCREW
BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8, outer wheel to outer spacer, Rear Axle
20шт.
16
70-5535T1
WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk
- flat, hardened, 7/8 x 1-3/4 x 1/4 inch, Rear Axle
60шт.
Выбрано товаров: 18
