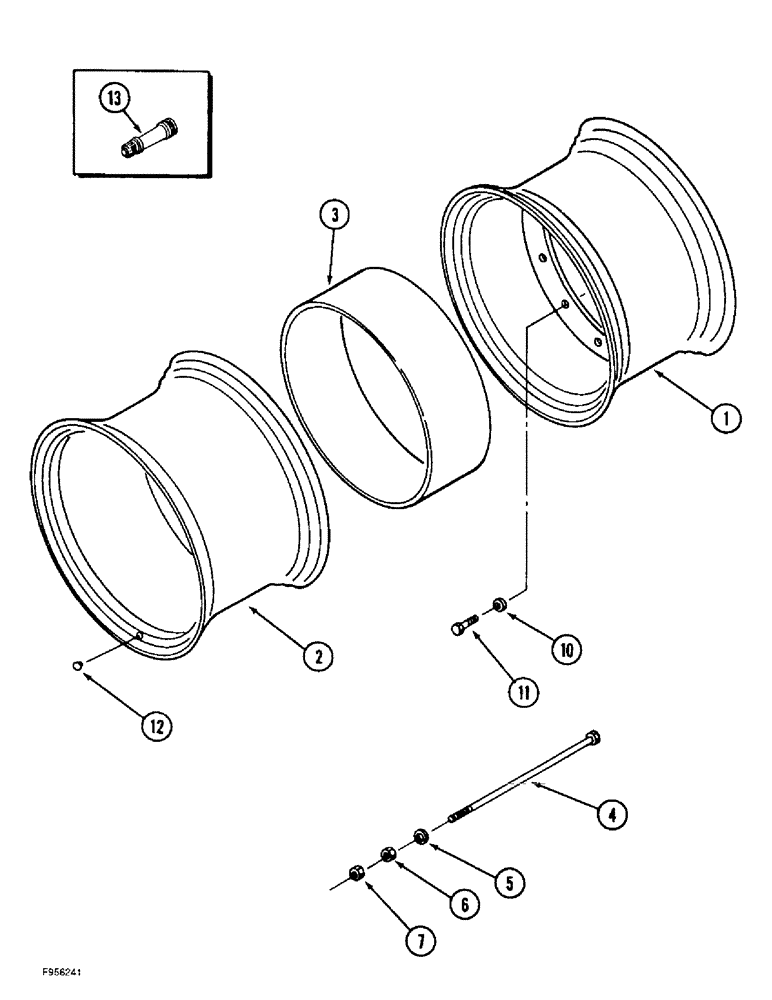

Запчасти Case IH 9350 (6-206) - WHEELS, SPACER BAND DUALS (06) - POWER TRAIN

1

30-1523T2

RIM

WHEEL - inner or dual, 18.4 x 38, 16 inch width

4шт.

1

30-1532T2

RIM

WHEEL - inner or dual, 18.4 x 42, 16 inch width

4шт.

1

30-1526T2

RIM

WHEEL - inner or dual, 20.8 x 38, 18 inch width

4шт.

1

30-1535T2

RIM

WHEEL - inner or dual, 20.8 x 42, 18 inch width

4шт.

1

30-1516T2

RIM

WHEEL - inner or dual, 23.1 x 34, 20 inch width

4шт.

1

30-1501T2

RIM

WHEEL - inner or dual, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1505T2

RIM

WHEEL - inner or dual, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1510T2

RIM

WHEEL - inner or dual, 30.5 x 32, 27 inch width, singles only

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1541T2

RIM

WHEEL - inner or dual, 30.5 x 32, 30 inch width, singles only

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

2

30-1525T1

RIM

WHEEL - dual, 18.4 x 38, 16 inch width

4шт.

2

30-1534T1

RIM

WHEEL - dual, 18.4 x 42, 16 inch width

4шт.

2

30-1528T1

RIM

WHEEL - dual, 20.8 x 38, 18 inch width

4шт.

2

30-1537T1

RIM

WHEEL - dual, 18.4 x 42, 18 inch width

4шт.

2

30-1518T1

RIM

WHEEL - dual, 23.1 x 34, 20 inch width

4шт.

2

30-1503T1

RIM

WHEEL - dual, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

2

30-1507T1

RIM

WHEEL - dual, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

3

20-839T1

SPACER

BAND - spacer, 32 x 15 inch wide

4шт.

3

20-397T1

SPACER

BAND - spacer, 34 x 15 inch wide

4шт.

3

20-1001T1

SPACER

BAND - spacer, 38 x 15 inch wide

4шт.

3

30-1318T1

SPACER

BAND - spacer, 42 x 15 inch wide

4шт.

4

19-5744

THREADED ROD,Hex, 7/8" - 9 x 34"

BOLT - tie, 7/8 NC x 34 inch

24шт.

4

19-5747

BOLT

- tie, 7/8 NC x 36 inch

24шт.

5

20-62

WASHER

- flat, 7/8 x 3 x 1/4 inch

24шт.

6

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

24шт.

7

425-1414

JAM NUT,Jam, 7/8"-9, G5

24шт.

10

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

40шт.

11

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

40шт.

12

30-1631T1

PLUG

- wheel hole

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

13

A20058

VALVE STEM

VALVE - stem, used with tubeless tires only

8шт.
