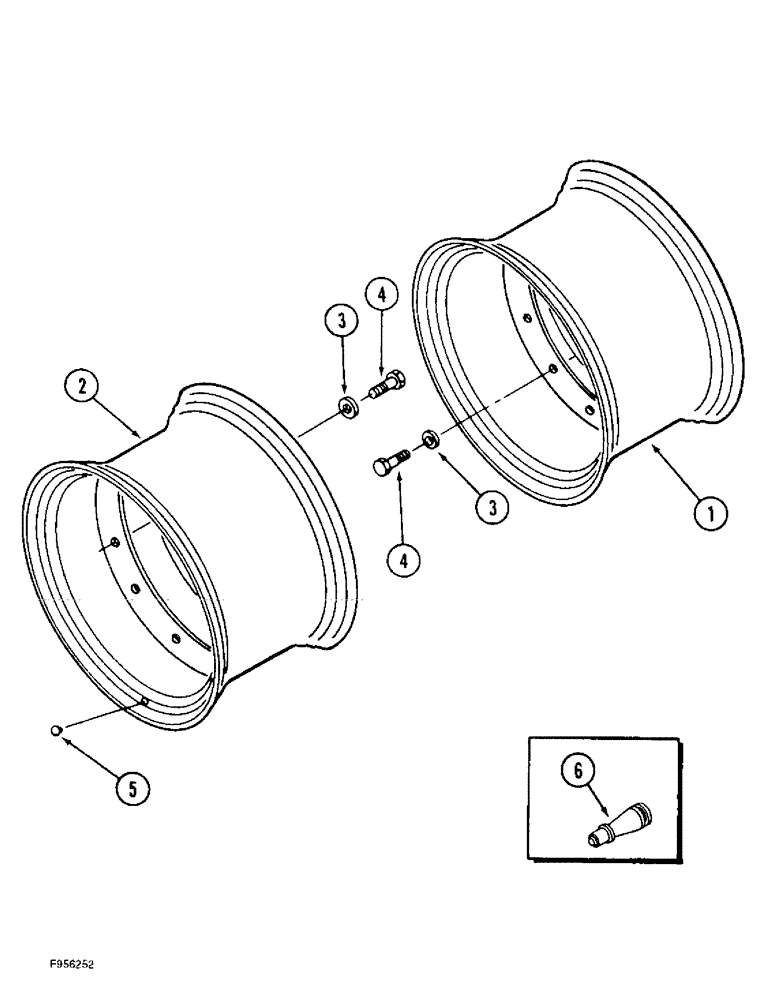

Запчасти Case IH 9350 (6-204) - WHEELS, HUB MOUNTED DUALS, BAR AXLE (06) - POWER TRAIN

1

30-1532T2

RIM

WHEEL - inner or dual, 18.4 x 42, 16 inch width

4шт.

1

30-1632T2

RIM

WHEEL - inner or dual, 18.4 x 46, 16 inch width

4шт.

1

30-1526T2

RIM

WHEEL - inner or dual, 20.8 x 38, 18 inch width

4шт.

1

30-1535T2

RIM

WHEEL - inner or dual, 20.8 x 42, 18 inch width

4шт.

1

30-1516T2

RIM

WHEEL - inner or dual, 23.1 x 34, 20 inch width

4шт.

1

30-1501T2

RIM

WHEEL - inner or dual, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1505T2

RIM

WHEEL - inner or dual, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1510T2

RIM

WHEEL - inner or dual, 30.5 x 32, 27 inch width, singles only

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1541T2

RIM

WHEEL - inner or dual, 30.5 x 32, 30 inch width, singles only

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

1

30-1482T1

RIM

WHEEL - inner or dual, 14.9 x 46, 12 inch width

4шт.

2

30-1532T2

RIM

WHEEL - inner or dual, 18.4 x 42, 16 inch width

4шт.

2

30-1632T2

RIM

WHEEL - inner or dual, 18.4 x 46, 16 inch width

4шт.

2

30-1526T2

RIM

WHEEL - inner or dual, 20.8 x 38, 18 inch width

4шт.

2

30-1535T2

RIM

WHEEL - inner or dual, 20.8 x 42, 18 inch width

4шт.

2

30-1516T2

RIM

WHEEL - inner or dual, 23.1 x 34, 20 inch width

4шт.

2

30-1501T2

RIM

WHEEL - inner or dual, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

2

30-1505T2

RIM

WHEEL - inner or dual, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

2

30-1482T1

RIM

WHEEL - inner or dual, 14.9 x 46, 12 inch width

4шт.

3

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

80шт.

4

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

80шт.

5

30-1631T1

PLUG

- wheel hole

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32 and 30.5 x 32 wheel.

1шт.

6

A20058

VALVE STEM

VALVE - stem, used with tubeless tires only

8шт.
