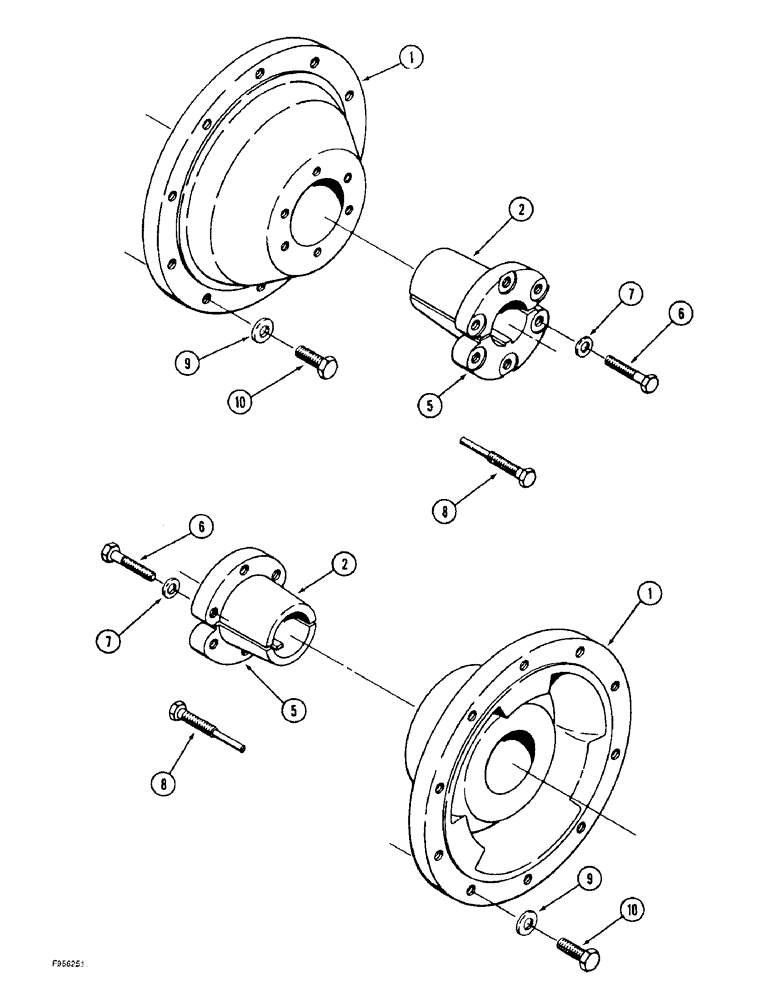

Запчасти Case IH 9350 (6-202) - WHEEL HUBS, BAR AXLE (06) - POWER TRAIN

1

30-1434T2

HUB

- wheel

4шт.

2

30-1327T1

HALF-BUSHING

BUSHING - half, axle

4шт.

5

30-1402T2

HALF-BUSHING

BUSHING - half, axle

4шт.

6

426-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8

24шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

24шт.

8

30-1331T2

BOLT,Hex, 7/8" - 12 x 6-3/8", Gr 8

BOLT - hex, special, bushing removal

4шт.

9

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

40шт.

10

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

40шт.
