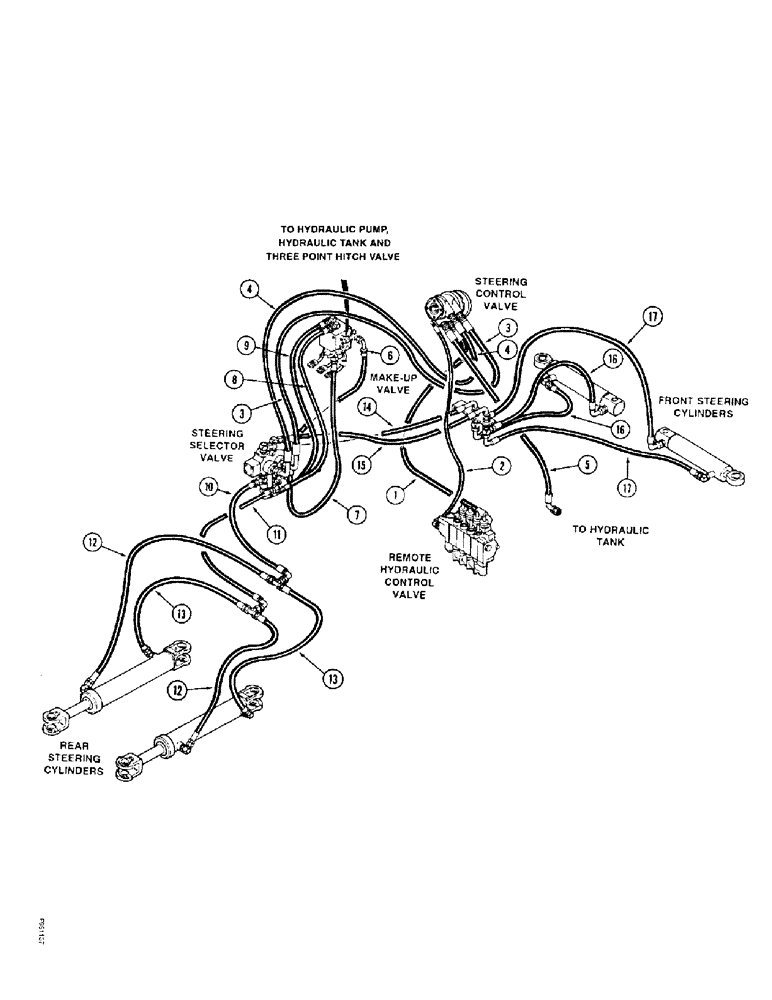

Запчасти Case IH 9350 (1-26) - PICTORIAL INDEX, STEERING HYDRAULICS, ROW CROP SPECIAL TRACTOR (00) - PICTORIAL INDEX

1

Steering Supply Hose, 5-19, 5-21

1шт.

2

Steering Pressure Sensing Hose, 5-19, 5-21

1шт.

3

Steering Control Valve To Selector Valve Hose, 5-19, 5-21

1шт.

4

Steering Control Valve To Selector Valve Hose, 5-19, 5-21

1шт.

5

Steering Control Valve Drain Hose, 5-19, 5-21

1шт.

6

Selector Valve External Drain Hose, 5-25

1шт.

7

Selector Valve Pilot Port Hose, 5-25

1шт.

8

Selector Valve Front Port To Make Up Valve Hose, 5-25

1шт.

9

Selector Valve Rear Port To Make Up Valve Hose, 5-25

1шт.

10

Selector Valve To Upper Bulkhead Tee Hose, 5-25

1шт.

11

Selector Valve To Lower Bulkhead Tee Hose, 5-25

1шт.

12

Tee To Rear Steering Cylinder Rod End Hoses, 5-11

1шт.

13

Tee To Rear Steering Cylinder Base End Hoses, 5-11

1шт.

14

Selector Valve Rear Port To Bulkhead Tee Hose, 5-23

1шт.

15

Selector Valve Front Port To Bulkhead Tee Hose, 5-23

1шт.

16

Left Front Steering Cylinder Hoses, 5-23

1шт.

17

Right Front Steering Cylinder Hoses, 5-23

1шт.
