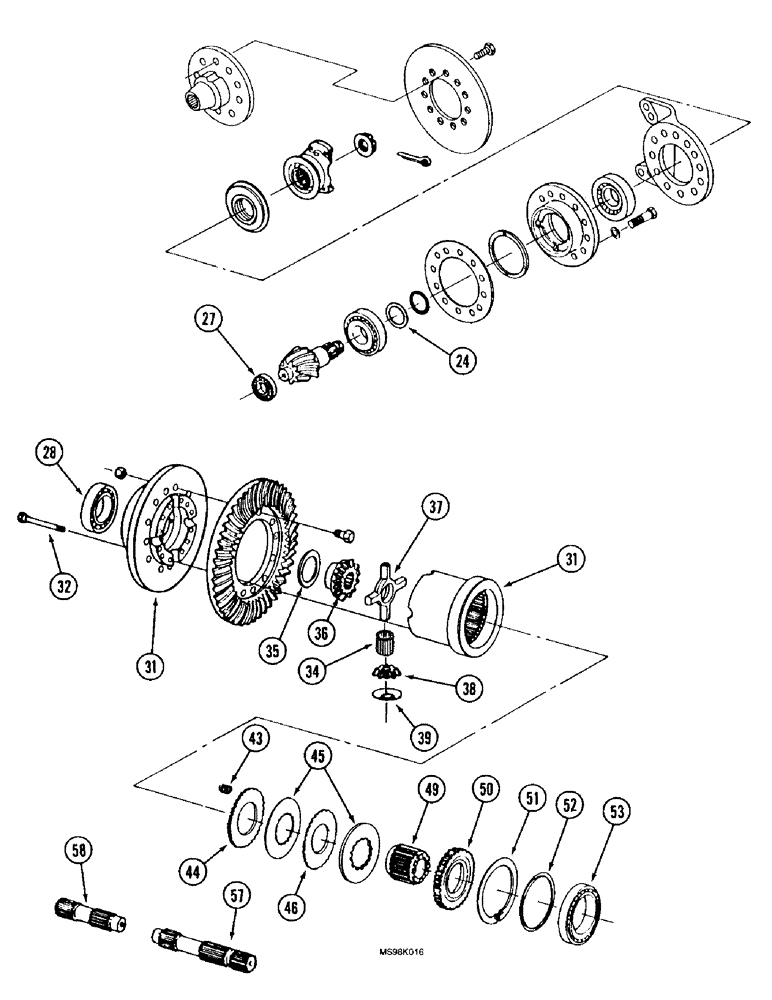

Запчасти Case IH 9350 (6-198) - BAR AXLE ASSEMBLY, DIFFERENTIAL WITH AND WITHOUT LIMITED SLIP, (CONT) (06) - POWER TRAIN

90-7806T91

AXLE, FRONT

AXLE ASSEMBLY - front, without differential lock, 692.52, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 39 - 58, 24 - 38 on Fig. 6-196 , and 1 - 23 on Fig. 6-194

1шт.

90-7807T91

AXLE, REAR

AXLE ASSEMBLY - rear, without differential lock, 692.42, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 39 - 58, 24 - 38 on Fig. 6-196, and 1 - 23 on Fig. 6-194

1шт.

90-7808T91

AXLE, FRONT

AXLE ASSEMBLY - front, with differential lock, 692.50, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 39 - 58, 24 - 38 on Fig. 6-196, and 1 - 23 on Fig. 6-194

1шт.

90-7809T91

AXLE, REAR

AXLE ASSEMBLY - rear, with differential lock, 692.40, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 39 - 58, 24 - 38 on Fig. 6-196, and 1 - 23 on Fig. 6-194

1шт.

90-8462T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - case, continued, Includes: Ref. 39 - 51

1шт.

90-8463T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - case, continued, Includes: Ref. 39 - 51

1шт.

39

90-7857T1

WASHER

- thrust, gear wear, prior to P.I.N. JEE0038009 used with 90-7806T91 and 90-7807T91 assemblies; prior to P.I.N. JEE0068323 used with 90-7808T91 and 90-7809T91 assemblies

4шт.

39

90-8435T1

THRUST WASHER

WASHER - thrust, 1.5 mm, gear wear, P.I.N. JEE0038009 and after used with 90-7806T91 and 90-7807T91 assemblies; P.I.N. JEE0068323 used with 90-7808T91 and 90-7809T91 assemblies

4шт.

43

33-1230T1

SPRING

- compression, with differential lock

17шт.

44

90-8168T1

DISC

DISK - thrust, with differential lock

1шт.

45

33-1493T1

DISC

DISK - inner, with differential lock

14шт.

46

33-1494T1

DISC

DISK - outer, with differential lock

15шт.

49

90-8169T1

HUB

- splined, with differential lock

1шт.

50

90-8170T1

GEAR

PLATE - backing, with differential lock

1шт.

51

1-6727

RING, SNAP

RING - snap

1шт.

52

33-1236T1

WASHER

- bearing spacer

1шт.

53

33-1237T1

TAPERED BEARING

- tapered roller

1шт.

57

33-1238T1

SHAFT

- axle, long inner

1шт.

58

33-1239T1

SHAFT

- axle, short inner

1шт.
