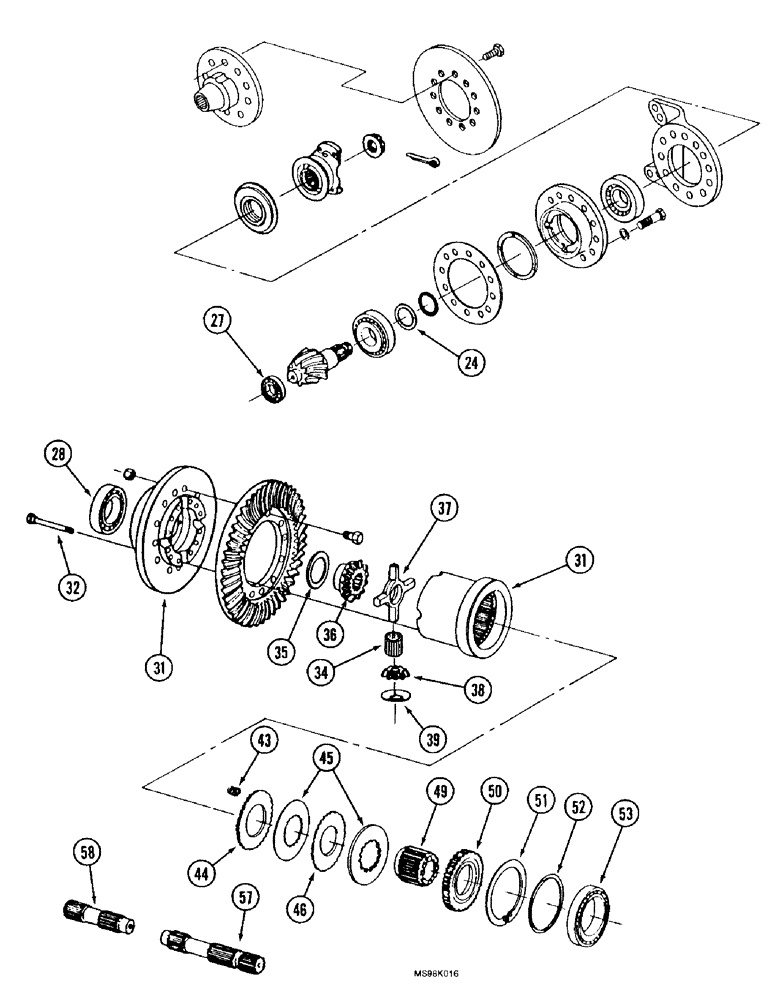

Запчасти Case IH 9350 (6-196) - BAR AXLE ASSEMBLY, DIFFERENTIAL WITH AND WITHOUT LIMITED SLIP, (CONT) (06) - POWER TRAIN

90-7806T91

AXLE, FRONT

AXLE ASSEMBLY - front, without differential lock, 692.52, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 24 - 38, 1 - 23 on Fig. 6-194 and 39 - 58 on Fig. 6-198

1шт.

90-7807T91

AXLE, REAR

AXLE ASSEMBLY - rear, without differential lock, 692.42, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 24 - 38, 1 - 23 on Fig. 6-194 and 39 - 58 on Fig. 6-198

1шт.

90-7808T91

AXLE, FRONT

AXLE ASSEMBLY - front, with differential lock, 692.50, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 24 - 38, 1 - 23 on Fig. 6-194 and 39 - 58 on Fig. 6-198

1шт.

90-7809T91

AXLE, REAR

AXLE ASSEMBLY - rear, with differential lock, 692.40, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 24 - 38, 1 - 23 on Fig. 6-194 and 39 - 58 on Fig. 6-198

1шт.

24

33-1202T1

SPACER

- bearing, 6.90 mm thick

1шт.

24

33-1203T1

SPACER

- bearing, 7.00 mm thick

1шт.

24

33-1204T1

SPACER

- bearing, 7.02 mm thick

1шт.

24

33-1205T1

SPACER

- bearing, 7.04 mm thick

1шт.

24

33-1206T1

SPACER

- bearing, 7.06 mm thick

1шт.

24

33-1207T1

SPACER

- bearing, 7.08 mm thick

1шт.

24

33-1208T1

SPACER

- bearing, 7.10 mm thick

1шт.

24

33-1209T1

SPACER

- bearing, 7.20 mm thick

1шт.

24

33-1210T1

SPACER

- bearing, 7.32 mm thick

1шт.

24

33-1211T1

SPACER

- bearing, 7.44 mm thick

1шт.

24

33-1212T1

SPACER

- bearing, 7.56 mm thick

1шт.

24

33-1213T1

SPACER

- bearing, 7.88 mm thick

1шт.

24

33-1214T1

SPACER

- bearing, 7.80 mm thick

1шт.

24

33-1215T1

SPACER

- bearing, 7.92 mm thick

1шт.

27

90-8147T1

ROLLER BEARING

- roller

1шт.

28

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapered roller

1шт.

90-8462T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - case, Includes: Ref. 31 - 38

1шт.

90-8463T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - case, Includes: Ref. 31 - 38

1шт.

90-8460T91

CASE ASSY.

CASE ASSEMBLY - differential halves, replaces 90-8150T91 case, Includes: Ref. 31 and 32

1шт.

90-8461T91

CASE ASSY.

CASE ASSEMBLY - differential halves, replaces 90-8198T91 case, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

CASE - differetial halves

1шт.

32

90-8149T1

BOLT

BOLT - hex, special

12шт.

34

90-7870T1

BEARING, NEEDLE

NEEDLE - bearing, 29 per gear

116шт.

35

90-8112T1

WASHER

- pinion gear, thrust, prior to P.I.N JEE0072258 used with 90-7806T91 and 90-7807T91 assemblies; prior to P.I.N. JEE0072375 used with 90-7808T91 and 90-7809T91 assemblies

2шт.

35

90-8439T1

WASHER

- pinion gear, thrust, prior to JEE0072258 used with 90-7806T91 and 90-7807T91 assemblies; P.I.N. JEE0072375 and after used with 90-7808T91 and 90-7809T91 assemblies

2шт.

36

90-8079T1

PINION

GEAR - pinion

2шт.

37

90-8078T1

DIFF. SPIDER

SPIDER - gear

1шт.

38

90-7856T1

PINION

GEAR - pinion

4шт.
