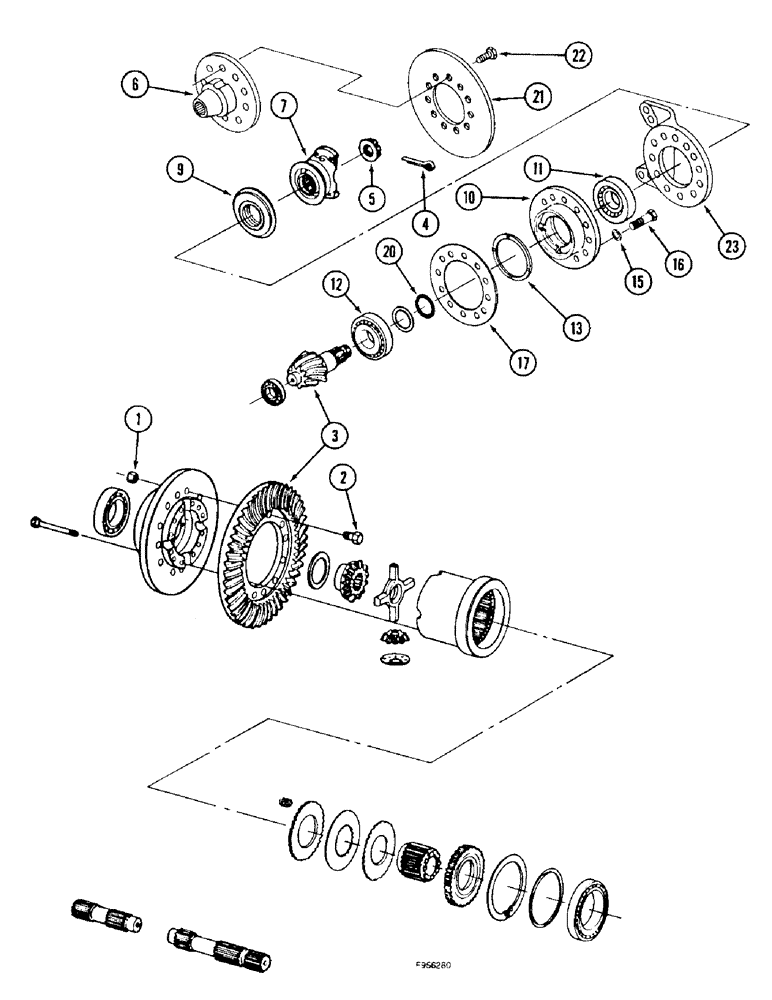

Запчасти Case IH 9350 (6-194) - BAR AXLE ASSEMBLY, DIFFERENTIAL WITH AND WITHOUT LIMITED SLIP (06) - POWER TRAIN

90-7806T91

AXLE, FRONT

AXLE ASSEMBLY - front, without differential lock, 692.52, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 1 - 23, 24 - 38 on Fig. 6-196 and 39 - 58 on Fig. 6-198

1шт.

90-7807T91

AXLE, REAR

AXLE ASSEMBLY - rear, without differential lock, 692.42, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 1 - 23, 24 - 38 on Fig. 6-196 and 39 - 58 on Fig. 6-198

1шт.

90-7808T91

AXLE, FRONT

AXLE ASSEMBLY - front, with differential lock, 692.50, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 1 - 23, 24 - 38 on Fig. 6-196 and 39 - 58 on Fig. 6-198

1шт.

90-7809T91

AXLE, REAR

AXLE ASSEMBLY - rear, with differential lock, 692.40, parts list Figures 6-190 - 6-198, continued, Includes: Ref. 1 - 23, 24 - 38 on Fig. 6-196 and 39 - 58 on Fig. 6-198

1шт.

90-8146T91

GEAR-SET

GEAR - set, ring and pinion, front, Includes: Ref. 1 - 5

1шт.

90-8145T91

GEAR-SET

GEAR - set, ring and pinion, rear, Includes: Ref. 1 - 5

1шт.

1

90-8148T1

NUT

- hex, special

12шт.

2

90-8167T1

BOLT

BOLT - hex

12шт.

3

NSS

NOT SOLD SEPARAT

GEAR SET - ring and pinion

1шт.

4

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

5

16-1589

NUT

NUT - hex slotted, special

1шт.

6

90-8137T1

FLANGE

- brake, front axle only

1шт.

7

90-8136T1

YOKE

- input, rear axle only

1шт.

9

33-1178T1

OIL SEAL

- oil

1шт.

90-8139T91

HOUSING ASSY.

HOUSING ASSEMBLY - bearing, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - cage

1шт.

11

33-1179T1

TAPERED BEARING

BEARING - tapered roller

1шт.

12

90-8144T1

TAPERED BEARING

- tapered roller

1шт.

13

90-8138T1

OIL SCRAPER RING

RING - oil distribution

1шт.

15

33-1182T1

LOCK WASHER

- lock, 14 mm, rear axle

12шт.

16

33-1181T1

SCREW

BOLT - hex, 14 - 1.5 x 55 mm, class 10.9, front axle

12шт.

16

33-1180T1

SCREW

BOLT - hex, 14 - 1.5 x 35 mm, class 10.9, rear axle

12шт.

17

90-8140T1

SHIM

- bearing housing, 0.1 mm thick

1шт.

17

90-8141T1

SHIM

- bearing housing, 0.15 mm thick

1шт.

17

90-8142T1

SHIM

- bearing housing, 0.25 mm thick

1шт.

17

90-8143T1

SHIM

- bearing housing, 0.7 mm thick

1шт.

20

33-1188T1

SPACER

- bearing, 6.90 mm thick

1шт.

20

33-1189T1

SPACER

- bearing, 7.00 mm thick

1шт.

20

33-1190T1

SPACER

- bearing, 7.02 mm thick

1шт.

20

33-1191T1

SPACER

- bearing, 7.04 mm thick

1шт.

20

33-1192T1

SPACER

- bearing, 7.06 mm thick

1шт.

20

33-1193T1

SPACER

- bearing, 7.08 mm thick

1шт.

20

33-1194T1

SPACER

- bearing, 7.10 mm thick

1шт.

20

33-1195T1

SPACER

- bearing, 7.20 mm thick

1шт.

20

33-1196T1

SPACER

- bearing, 7.32 mm thick

1шт.

20

33-1197T1

SPACER

- bearing, 7.44 mm thick

1шт.

20

33-1198T1

SPACER

- bearing, 7.56 mm thick

1шт.

20

33-1199T1

SPACER

- bearing, 7.88 mm thick

1шт.

20

33-1200T1

SPACER

- bearing, 7.80 mm thick

1шт.

20

33-1201T1

SPACER

- bearing, 7.92 mm thick

1шт.

21

90-4574T1

BRAKE DISC

DISC - brake, front axle only

1шт.

22

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

12шт.

23

90-8171T1

SUPPORT

- brake, front axle only, continued

1шт.
