(9350) - CASE IH 4WD TRACTOR (1/96-8/00)
/
(06) - POWER TRAIN
/

(6-188) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITH LIMITED SLIP, (CONT)

Запчасти Case IH 9350 (6-188) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITH LIMITED SLIP, (CONT) (06) - POWER TRAIN

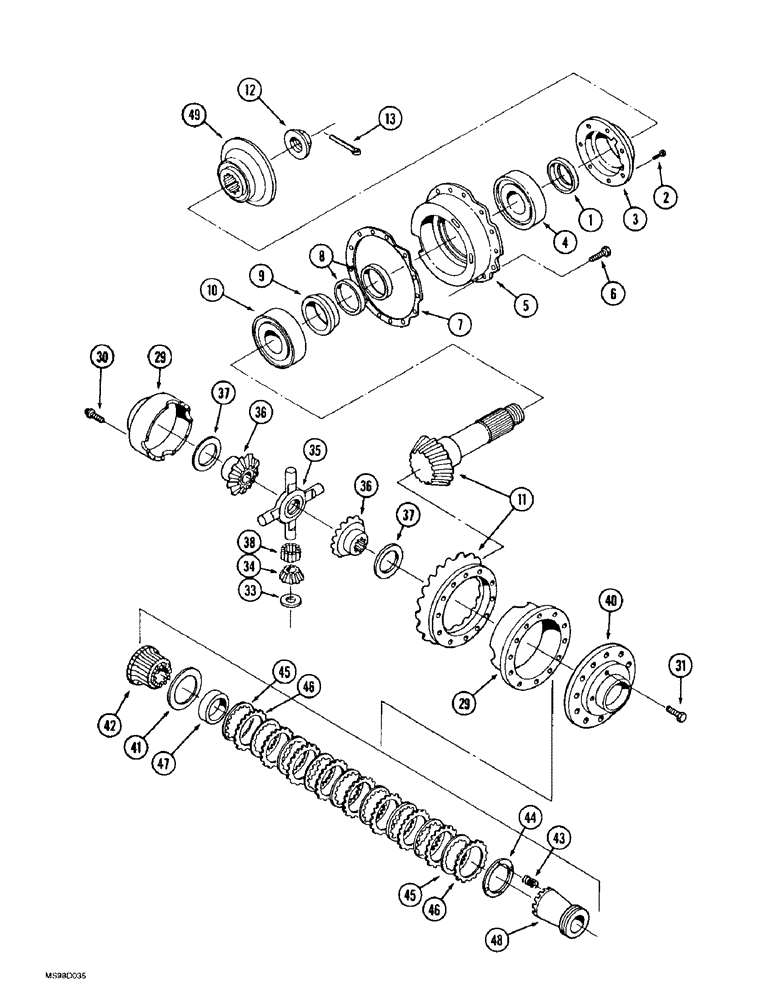

Схема запчастей Case IH 9350 - (6-188) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITH LIMITED SLIP, (CONT) (06) - POWER TRAIN
7
31
47
8
35
37
48
4
37
29
36
42
13
6
46
29
33
40
12
38
49
45
10
36
46
45
9
44
5
43
3
11
34
2
30
1
41

№

Артикул

Название

Примечание

Количество

90-7804T91

AXLE

ASSEMBLY - front, with limited slip differential, 694.70 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 29 - 50 and 1 -13 on Fig. 6-186

1шт.

90-7805T91

AXLE

ASSEMBLY - rear, with limited slip differential, 694.60 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 29 - 50 and 1 - 13 on Fig. 6-186

1шт.

90-8063T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, front, use with 694.70 axle, parts list Figures 6-184 - 6-188, continued, Includes: Ref. 29 - 48

1шт.

90-8062T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, rear, use with 694.60 axle, parts list Figures 6-184 - 6-188, continued, Includes: Ref. 29 - 48

1шт.

90-8438T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - axle, front or rear, replaces 90-8074T1 differential, Includes: Ref. 29 - 46

1шт.

29

90-8436T91

HOUSING

ASSEMBLY - differential, replaces 90-8075T91 housing, Includes: Ref. 30

1шт.

30

90-8077T1

FLANGE BOLT

BOLT - hex flange, special

12шт.

32

90-8082T1

BOLT,M18 x 1.5 x 50mm, Cl 10.9

1шт.

31

90-8087T1

HEX SOC SCREW,M10 x 20mm

BOLT - hex socket, special

2шт.

33

90-8435T1

THRUST WASHER

WASHER - thrust, 1.5 mm

4шт.

34

90-7856T1

PINION

GEAR - pinion

4шт.

35

90-8078T1

DIFF. SPIDER

SPIDER - gear

1шт.

36

90-8079T1

PINION

GEAR - pinion

2шт.

37

90-8439T1

WASHER

- pinion gear

2шт.

38

90-7870T1

BEARING, NEEDLE

NEEDLE - bearing, 29 per gear

116шт.

40

90-8076T1

HOUSING

- half, flanged

1шт.

41

90-8086T1

WASHER

- thrust

1шт.

42

90-8084T1

HUB

- splined

1шт.

43

33-1230T1

SPRING

- compression

1шт.

44

90-8085T1

THRUST WASHER

- thrust

1шт.

45

33-1493T1

DISC

DISK - inner

8шт.

46

33-1494T1

DISC

DISK - outer

9шт.

47

33-1278T1

RING

BUSHING - clutch alignment

1шт.

48

90-8083T1

TRANSMISSION SLEEVE

SLEEVE - clutch

1шт.

49

90-7823T1

FORK

YOKE - flanged, 8C, use with front axle (Replaces 90-7824T1)

1шт.

50

90-7821T1

FORK

YOKE - 7C, use with rear axle, not shown (Replaces 90-7822T1)

1шт.

Выбрано товаров: 26
