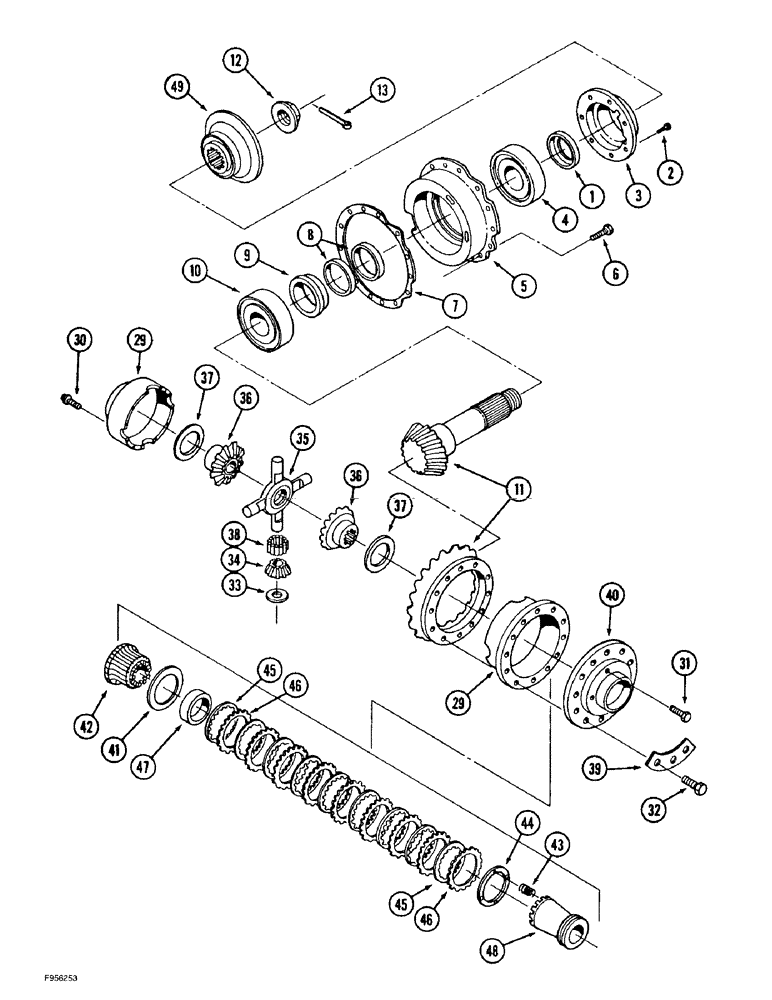

Запчасти Case IH 9350 (6-186) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITH LIMITED SLIP (06) - POWER TRAIN

90-7804T91

AXLE

ASSEMBLY - front, with limited slip differential, 694.70 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 1 - 13 and 29 - 50 on Fig. 6-188

1шт.

90-7805T91

AXLE

ASSEMBLY - rear, with limited slip differential, 694.60 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 1 - 13 and 29 - 50 on Fig. 6-188

1шт.

90-8063T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, front, use with 694.70 axle, parts list Figures 6-184 - 6-188, continued, Includes: Ref. 1 - 13

1шт.

90-8062T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, rear, use with 694.60 axle, parts list Figures 6-184 - 6-188, continued, Includes: Ref. 1 - 13

1шт.

1

90-2509T2

SEALING RING,85mm ID x 110.35mm OD x 12mm Thk

SEAL - oil

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

6шт.

3

90-4517T1

COVER

- seal retainer

1шт.

4

16-1582

TAPERED BEARING

BEARING - tapered roller

1шт.

5

90-4515T1

HOUSING

- bearing

1шт.

6

16-1621T1

BOLT,Flng, M14 x 1.5 x 45mm, Cl 10.9

BOLT - hex flange, 14 - 1.5 x 45 mm, grade 10.9

12шт.

7

16-1569

SHIM

- housing, 0.2 mm thick

1шт.

7

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

7

16-1568

SHIM

- housing, 0.3 mm thick

1шт.

7

16-1567

SHIM

- housing, 0.5 mm thick

1шт.

7

16-1566

SHIM

- housing, 1.0 mm thick

1шт.

8

90-4504T1

SPACER

- bearing, 4.00 mm thick

1шт.

8

90-4505T1

SPACER

- bearing, 4.04 mm thick

1шт.

8

90-4506T1

SPACER

- bearing, 4.08 mm thick

1шт.

8

90-4507T1

SPACER

- bearing, 4.12 mm thick

1шт.

8

90-4508T1

SPACER

- bearing, 4.16 mm thick

1шт.

8

90-4509T1

SPACER

- bearing, 4.20 mm thick

1шт.

8

90-4510T1

SPACER

- bearing, 4.40 mm thick

1шт.

8

90-4511T1

SPACER

- bearing, 4.60 mm thick

1шт.

8

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

8

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

8

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

9

90-4503T1

SPACER

SLEEVE - bearing spacer

1шт.

10

16-1565

TAPERED BEARING

BEARING - tapered roller

1шт.

11

90-8080T91

GEAR-SET

GEAR - set, ring and pinion, rear axle

1шт.

11

90-8081T91

GEAR-SET

GEAR - set, ring and pinion, front axle

1шт.

12

16-1589

NUT

NUT - hex slotted, special

1шт.

13

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , continued 1/4" x 2 1/2"

1шт.
