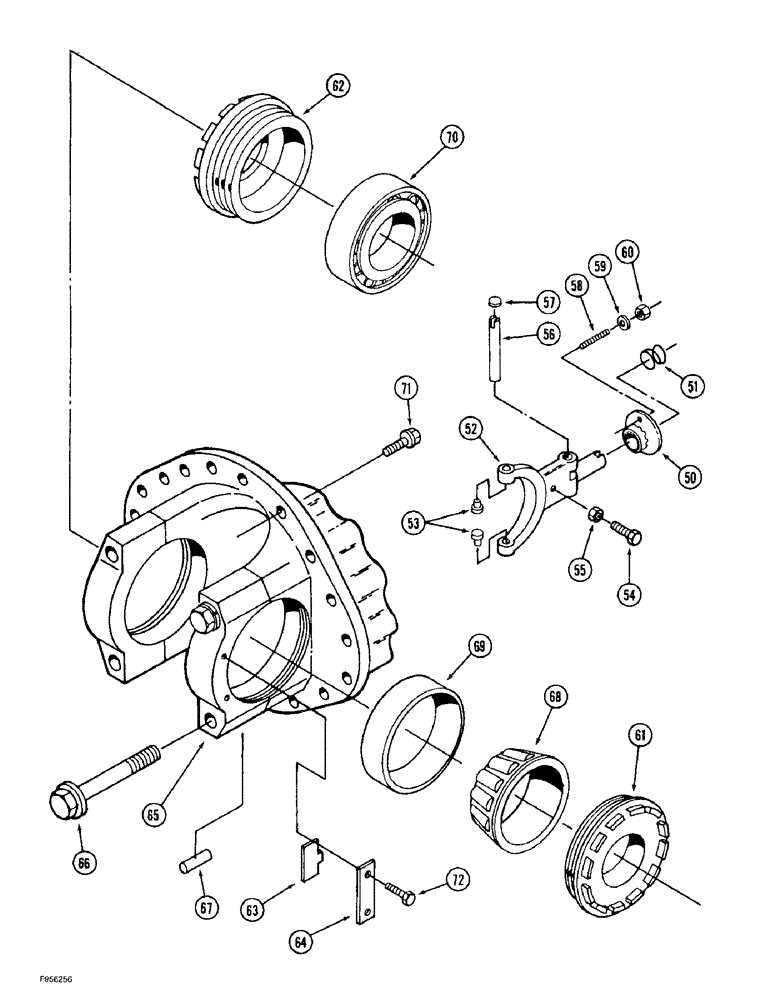

Запчасти Case IH 9350 (6-184) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITH LIMITED SLIP, (CONT) (06) - POWER TRAIN

90-7804T91

AXLE

ASSEMBLY - front, with limited slip differential, 694.70 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 50 - 72, 1 - 25 on Fig. 6-180, and 26 - 37 on Fig. 6-182

1шт.

90-7805T91

AXLE

ASSEMBLY - rear, with limited slip differential, 694.60 axle, parts list Figures 6-176, 6-178, and 6-184 - 6-188, continued, Includes: Ref. 50 - 72, 1 - 25 on Fig. 6-180, and 26 - 37 on Fig. 6-182

1шт.

90-8063T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, front, use with 694.70 axle, parts list Figures 6-184 - 6-188, Includes: Ref. 50 - 72, 1 - 25 on Fig. 6-180, and 26 - 37 on Fig. 6-182

1шт.

90-8062T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, rear, use with 694.60 axle, parts list Figures 6-184 - 6-188, Includes: Ref. 50 - 72, 1 - 25 on Fig. 6-180, and 26 - 37 on Fig. 6-182

1шт.

33-1291T1

SEAL

- shift fork, Includes: Ref. 50 and 51

1шт.

50

NSS

NOT SOLD SEPARAT

SEAL - shift fork

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - shift fork

1шт.

52

90-8069T1

SHIFTER FORK

FORK - shift, traction control

1шт.

53

33-1290T1

PIN

- thrust

2шт.

54

90-8070T1

SCREW,M10 x 45mm

BOLT - hex, special

1шт.

55

90-8071T1

NUT

- hex, special

1шт.

56

90-8072T1

SHAFT

- shift fork

1шт.

57

90-8073T1

CAP

PLUG - cap

2шт.

58

90-7151T1

STUD

- shift fork

2шт.

59

33-1294T1

WASHER

- flat, special

2шт.

60

90-7152T1

NUT

- hex, lock, special

2шт.

61

90-8068T1

NUT

- bearing retainer

2шт.

62

90-7230T1

SLOTTED NUT

NUT - bearing retainer

1шт.

63

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut, tab 15 degrees from horizontal

1шт.

63

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut, tab 0 degrees from horizontal

1шт.

63

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut, tab 7.5 degrees from horizontal

1шт.

64

16-1524

LARGE PLATE

PLATE - locking

2шт.

65

90-8064T91

DIFFERENTIAL

HOUSING ASSEMBLY - differential, Includes: Ref. 66 and 67

1шт.

66

90-7138T1

FLANGE BOLT

BOLT - hex flange, special

2шт.

67

90-8162T1

DOWEL

PIN - dowel

2шт.

68

L35045

ROLLER BEARING

BEARING - tapered roller

1шт.

69

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - tapered roller bearing

1шт.

70

A48105

TAPERED BEARING,100mm ID x 150mm OD x 32mm W

BEARING - tapered roller

1шт.

71

90-7371T1

FLANGE BOLT,M14 x 1.5 x 45mm

BOLT - flange, 14 mm - 1.5 x 45 mm, grade 10.9

20шт.

72

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

4шт.
