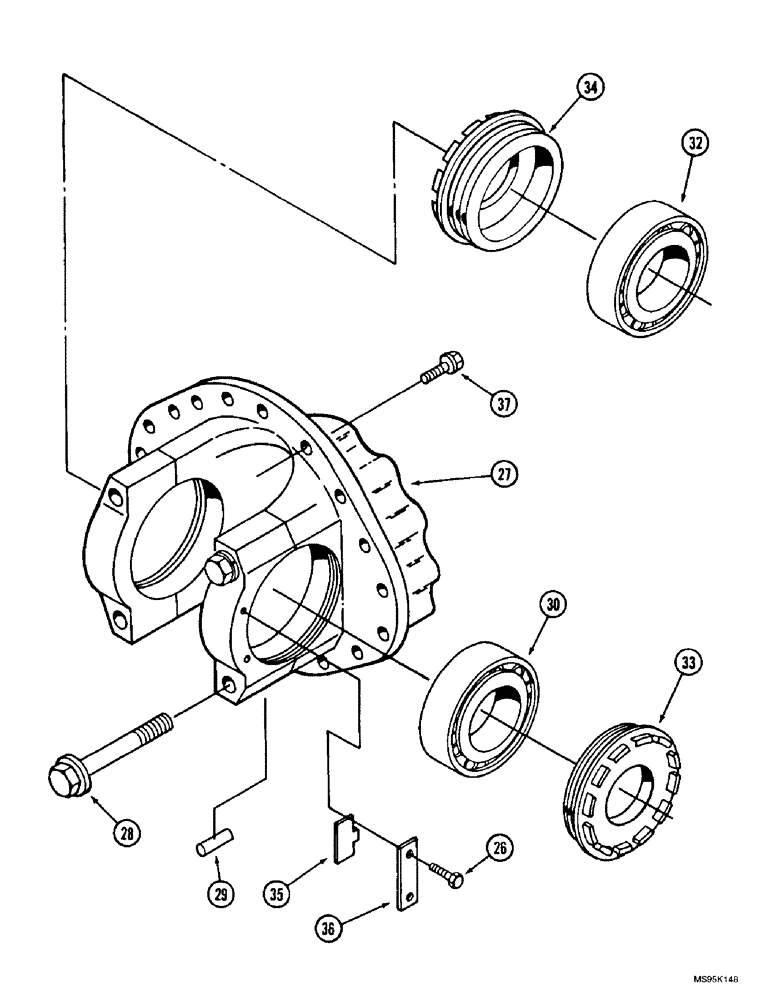

Запчасти Case IH 9350 (6-182) - RIGID AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER WITHOUT LIMITED SLIP, (CONT) (06) - POWER TRAIN

90-7803T91

AXLE

ASSEMBLY - front, without limited slip differential, 694.72 axle, parts list Figures 6-176 - 6-182, continued, Includes: Ref. 26 - 37, 1 - 25 on Fig. 6-180 and 50 - 72 on Fig. 6-184

1шт.

90-7802T91

AXLE

ASSEMBLY - rear, without limited slip differential, 694.62 axle, parts list Figures 6-176 - 6-182, continued, Includes: Ref. 26 - 37, 1 - 25 on Fig. 6-180 and 50 - 72 on Fig. 6-184

1шт.

90-8129T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, front, use with 694.72 axle, continued, Includes: Ref. 26 - 36

1шт.

90-8128T91

DIFFERENTIAL

CARRIER ASSEMBLY - differential, rear, use with 694.62 axle, continued, Includes: Ref. 26 - 36

1шт.

26

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

4шт.

27

90-8130T91

HOUSING

CARRIER ASSEMBLY - housing, front or rear, Includes: Ref. 28 and 29

1шт.

28

90-7138T1

FLANGE BOLT

BOLT - hex flange, special

2шт.

29

90-8162T1

DOWEL

PIN - dowel

2шт.

30

90-8277T1

TAPERED BEARING

BEARING - tapered roller

1шт.

32

A48105

TAPERED BEARING,100mm ID x 150mm OD x 32mm W

BEARING - tapered roller

1шт.

33

90-8068T1

NUT

- bearing retainer

2шт.

34

90-7230T1

SLOTTED NUT

NUT - bearing retainer

1шт.

35

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut, tab 15 degrees from horizontal

1шт.

35

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut, tab 0 degrees from horizontal

1шт.

35

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut, tab 7.5 degrees from horizontal

1шт.

36

16-1524

LARGE PLATE

PLATE - locking

2шт.

37

90-7371T1

FLANGE BOLT,M14 x 1.5 x 45mm

BOLT - flange, 14 mm - 1.5 x 45 mm, grade 10.9

20шт.
