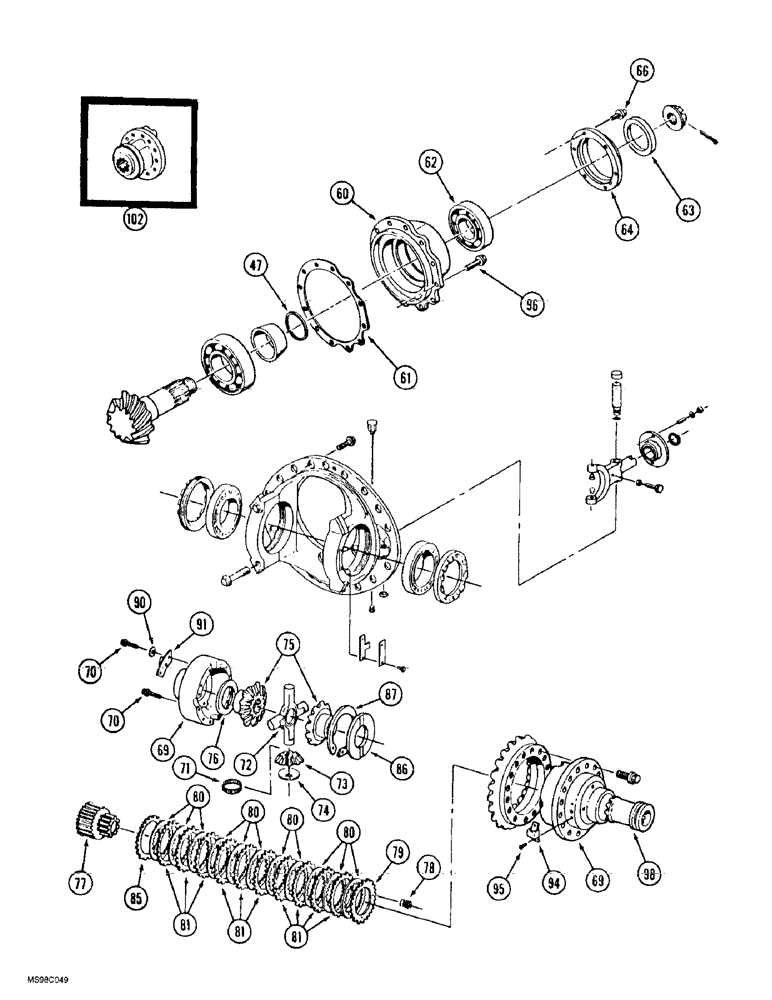

Запчасти Case IH 9350 (6-174) - FRONT STEERABLE AXLE, DIFFERENTIAL ASSEMBLY, WITH LIMITED SLIP, (CONT) (06) - POWER TRAIN

90-8060T91

AXLE

ASSEMBLY - front, with limited slip differential, 695.72, parts list Figures 6-156 - 6-166, 6-172 and 6-174, continued, Includes: Ref. 47 - 98 and 1 - 47 on Fig.6-172

1шт.

90-7848T91

DIFFERENTIAL

ASSEMBLY - front, use with 695.72 axle, continued, Includes: Ref. 47 - 98 and 1 - 47 on Fig.6-174

1шт.

47

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

47

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

47

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

60

90-4515T1

HOUSING

- bearing

1шт.

61

16-1566

SHIM

- housing, 1.0 mm thick

1шт.

61

16-1567

SHIM

- housing, 0.5 mm thick

1шт.

61

16-1568

SHIM

- housing, 0.3 mm thick

1шт.

61

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

61

16-1569

SHIM

- housing, 0.2 mm thick

1шт.

62

16-1582

TAPERED BEARING

BEARING - tapered roller

1шт.

63

90-2509T2

SEALING RING,85mm ID x 110.35mm OD x 12mm Thk

SEAL - oil, input

1шт.

64

90-4517T1

COVER

- seal retainer

1шт.

66

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 30 mm, class 10.9

6шт.

90-8035T91

PACKAGE

DIFFERENTIAL ASSEMBLY - axle, front, Includes: Ref. 69 - 87

1шт.

69

90-7865T91

HOUSING

- differential, includes both halves, front axle, Includes: Ref. 70

1шт.

70

90-7154T1

SCREW

BOLT - hex flange, special

12шт.

71

90-7870T1

BEARING, NEEDLE

NEEDLE - bearing, 29 per gear

116шт.

72

90-7855T1

TOGGLE

SPIDER - gear

1шт.

73

90-7856T1

PINION

GEAR - pinion

4шт.

74

90-7857T1

WASHER

- thrust, pinion gear

4шт.

75

16-1559

PINION

GEAR - pinion, axle drive

2шт.

76

90-7162T1

WASHER

- pinion gear, 4.6 mm thick

1шт.

77

90-7165T2

HUB

- splined

1шт.

78

90-7166T1

SPRING

- compression

16шт.

79

90-7167T1

THRUST WASHER

PLATE - thrust

1шт.

80

90-7168T1

DISC

PLATE - clutch, with inner teeth

11шт.

81

90-7169T1

DISC

PLATE - clutch, with outer teeth

10шт.

85

90-7170T1

THRUST WASHER

PLATE - thrust

1шт.

86

90-7171T1

WASHER

- thrust

1шт.

87

90-7172T1

RING, SNAP

RING - snap

1шт.

90

90-7156T1

WASHER

- flat, special

4шт.

91

90-7158T1

LARGE PLATE

BAFFLE - oil, front axle

2шт.

94

90-7173T1

LARGE PLATE

PLATE - oil bath, front axle

2шт.

95

90-7174T1

SCREW,CSK, M6 x 12mm, Cl 5.6

- flat head, 6 x 12 mm

4шт.

96

16-1621T1

BOLT,Flng, M14 x 1.5 x 45mm, Cl 10.9

BOLT - hex flange, 14 - 1.5 x 45 mm, grade 10.9

12шт.

98

90-7164T1

SLEEVE

- clutch

1шт.

98

90-6784T1

HUB

YOKE - flanged, 8C, use with front axle

1шт.
