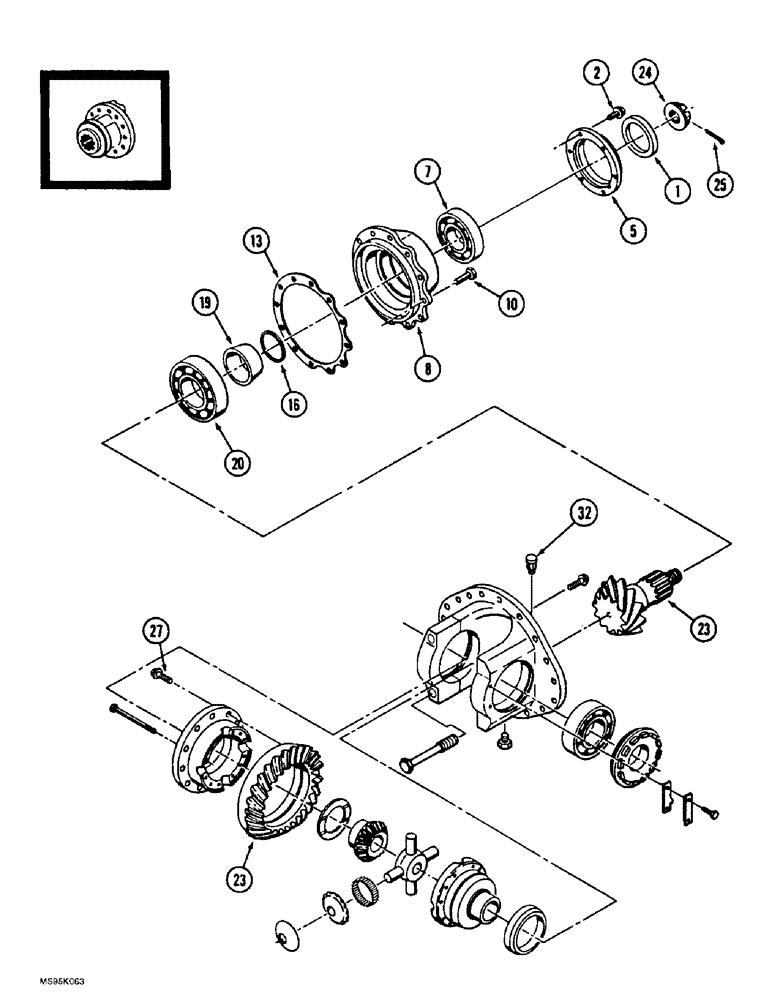

Запчасти Case IH 9350 (6-168) - FRONT STEERABLE AXLE, DIFFERENTIAL ASSEMBLY, WITHOUT LIMITED SLIP (06) - POWER TRAIN

90-8061T91

AXLE

ASSEMBLY - front, without limited slip differential, 695.75, parts list Figures 6-156 - 6-170, continued, Includes: Ref. 1 - 32 and 40 - 78 on Fig. 6-170

1шт.

90-7851T91

DIFFERENTIAL

ASSEMBLY - front, without limited slip, use with 695.75 axle, Includes: Ref. 1 - 32 and 40 - 78 on Fig. 6-170

1шт.

1

90-2509T2

SEALING RING,85mm ID x 110.35mm OD x 12mm Thk

SEAL - oil

1шт.

2

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 30 mm, class 10.9

6шт.

5

90-4517T1

COVER

- seal retainer

1шт.

7

16-1582

TAPERED BEARING

BEARING - tapered roller

1шт.

8

90-4515T1

HOUSING

- bearing

1шт.

10

16-1621T1

BOLT,Flng, M14 x 1.5 x 45mm, Cl 10.9

BOLT - hex flange, 14 - 1.5 x 45 mm, grade 10.9

12шт.

13

16-1569

SHIM

- housing, 0.2 mm thick

1шт.

13

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

13

16-1568

SHIM

- housing, 0.3 mm thick

1шт.

13

16-1567

SHIM

- housing, 0.5 mm thick

1шт.

13

16-1566

SHIM

- housing, 1.0 mm thick

1шт.

16

90-4504T1

SPACER

- bearing, 4.00 mm thick

1шт.

16

90-4505T1

SPACER

- bearing, 4.04 mm thick

1шт.

16

90-4506T1

SPACER

- bearing, 4.08 mm thick

1шт.

16

90-4507T1

SPACER

- bearing, 4.12 mm thick

1шт.

16

90-4508T1

SPACER

- bearing, 4.16 mm thick

1шт.

16

90-4509T1

SPACER

- bearing, 4.20 mm thick

1шт.

16

90-4510T1

SPACER

- bearing, 4.40 mm thick

1шт.

16

90-4511T1

SPACER

- bearing, 4.60 mm thick

1шт.

16

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

16

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

16

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

19

90-4503T1

SPACER

SLEEVE - bearing spacer

1шт.

20

16-1565

TAPERED BEARING

BEARING - tapered roller

1шт.

23

90-4502T91

GEAR, BEVEL

GEAR SET - ring and pinion, front axle, Includes: Ref. 24, 25 and 27

1шт.

24

16-1589

NUT

NUT - hex slotted, special

1шт.

25

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

27

90-7858T1

FLANGE BOLT

BOLT - hex, flange, special

12шт.

32

1-6693

BREATHER

- differential, continued

1шт.
