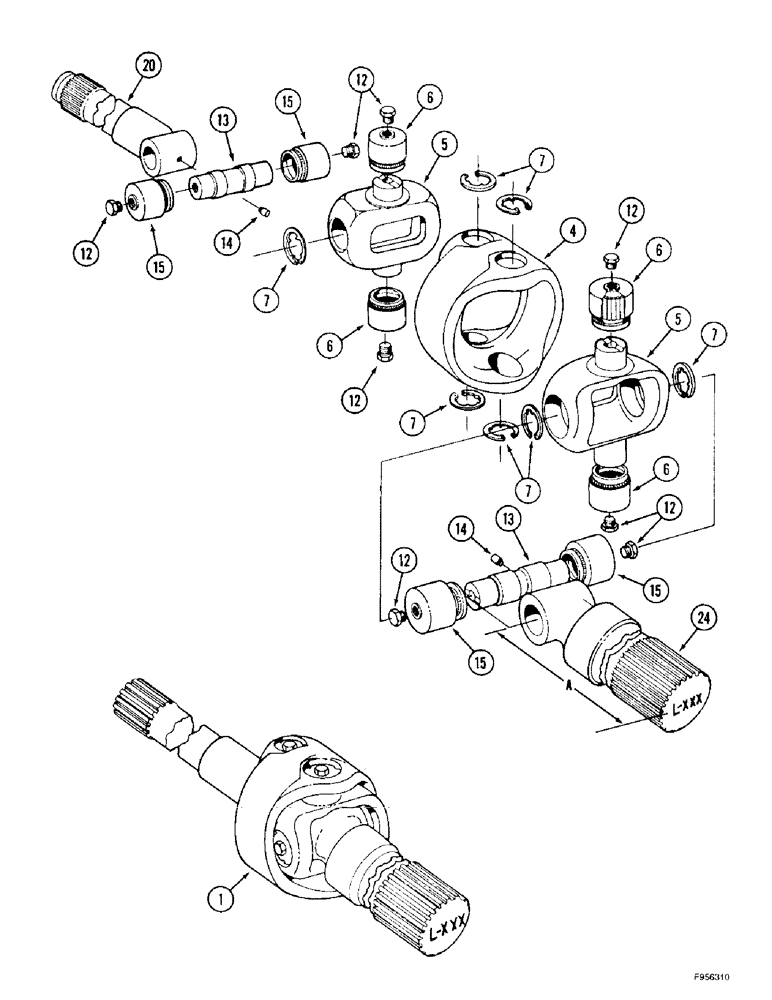

Запчасти Case IH 9350 (6-162) - FRONT STEERABLE AXLE, AXLE SHAFT (06) - POWER TRAIN

90-8061T91

AXLE

ASSEMBLY - front, without limited slip differential, 695.75, parts list Figures 6-156 - 6-170, continued, Includes: Ref. 1 - 24

1шт.

90-8060T91

AXLE

ASSEMBLY - front, with limited slip differential, 695.72, parts list Figures 6-156 - 6-166, 6-172 and 6-174, continued, Includes: Ref. 1 - 24

1шт.

1

90-7416T91

DRIVE SHAFT

SHAFT ASSEMBLY - axle, with short inner shaft, with and without limited slip differential, Includes: Ref. 1 - 24

1шт.

For identification of correct inner axle shaft.

1шт.

1

90-7415T91

DRIVE SHAFT

SHAFT ASSEMBLY - axle, with long inner shaft, with and without limited slip differential, Includes: Ref. 1 - 24

1шт.

For identification of correct inner axle shaft.

1шт.

90-7419T91

JOINT

ASSEMBLY - double universal, with and without limited slip differential, Includes: Ref. 4 - 15

1шт.

4

90-7425T1

HUB

- double universal joint

1шт.

5

90-7426T1

CROSS

- universal joint

2шт.

6

90-7427T1

NEEDLE BEARING

BEARING - needle

4шт.

7

90-7428T1

RING, SNAP

RING - snap, yellow, 2.050 mm thick

1шт.

7

90-7429T1

RING, SNAP

RING - snap, blue, 2.075 mm thick

1шт.

7

90-7430T1

RING, SNAP

RING - snap, white, 2.100 mm thick

1шт.

12

90-7431T1

PLUG

- hex, 12 mm - 1.5

8шт.

13

90-7432T1

SHAFT

- universal joint pin

2шт.

14

90-7433T1

PIN

- threaded

2шт.

15

90-7434T1

NEEDLE BEARING

BEARING - needle

4шт.

20

90-7420T1

SHAFT

- axle, 510 mm long

1шт.

24

90-7422T1

SHAFT

- axle, inner, dimension "A" is 747 mm long, with and without limited slip differential

1шт.

For identification of correct inner axle shaft.

1шт.

24

90-7421T1

SHAFT

- axle, inner, dimension "A" is 795 mm long, with and without limited slip differential

1шт.

For identification of correct inner axle shaft.

1шт.

24

90-7423T1

HALF SHAFT

- axle, inner, dimension "A" is 836 mm long, with and without limited slip differential

1шт.

For identification of correct inner axle shaft

1шт.
