(6-160) - FRONT STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY, (CONT)

Запчасти Case IH 9350 (6-160) - FRONT STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY, (CONT) (06) - POWER TRAIN

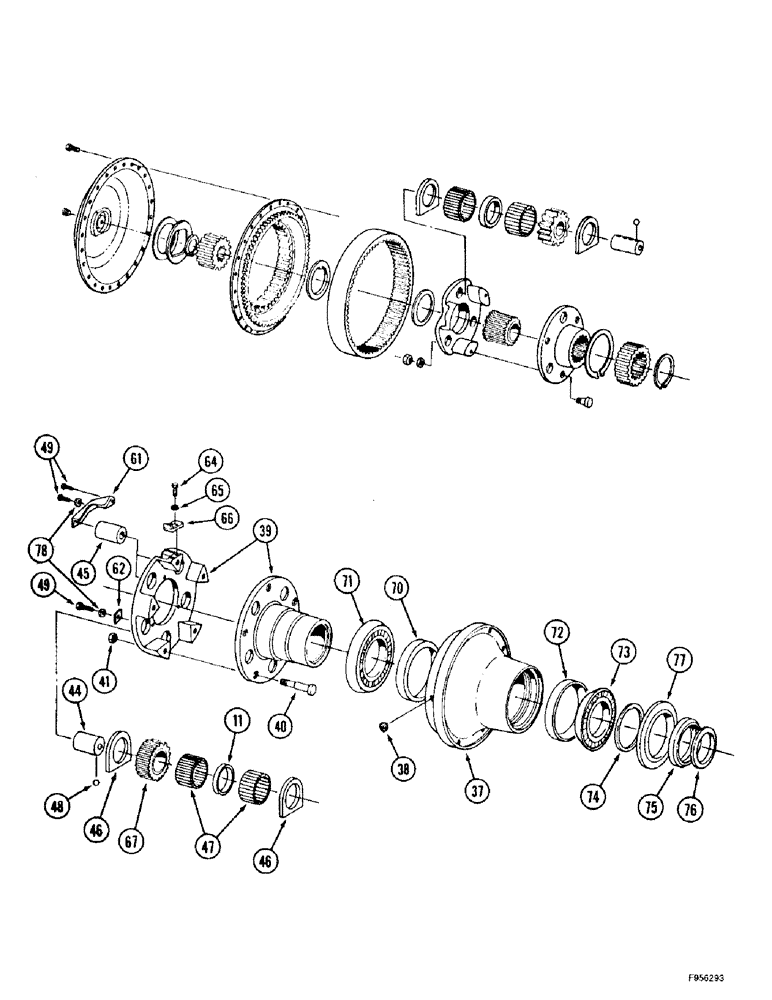

Схема запчастей Case IH 9350 - (6-160) - FRONT STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY, (CONT) (06) - POWER TRAIN
64
41
78
40
45
70
48
61
71
67
75
38
66
77
44
47
62
46
73
39
72
46
37
49
76
74
65
11
49
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-8061T91

AXLE

ASSEMBLY - front, without limited slip differential, 695.75, parts list Figures 6-156 - 6-170, continued, Includes: Ref. 37 - 78 and 1 - 30 on Fig. 6-158

1шт.

90-8060T91

AXLE

ASSEMBLY - front, with limited slip differential, 695.72, parts list Figures 6-156 - 6-166, 6-172 and 6-174, continued, Includes: Ref. 37 - 78 and 1 - 30 on Fig. 6-158

1шт.

37

90-8285T1

HUB

- wheel, left or right

2шт.

38

90-4484T1

PLUG

- magnetic, 24 mm - 1.5

2шт.

90-8283T91

PINION CARRIER

CARRIER ASSEMBLY - inner planetary, Includes: Ref. 39 - 67

2шт.

39

90-8284T91

PINION CARRIER

CARRIER ASSEMBLY - inner planetary, includes both halves, Includes: Ref. 40 and 41

1шт.

40

90-4538T2

SCREW

BOLT - shoulder

5шт.

41

90-8127T1

NUT

- hex, special

5шт.

44

90-7833T1

PIN

SHAFT - planetary pinion, with lube hole

3шт.

45

90-7835T1

PIN

SHAFT - planetary pinion, without lube hole

2шт.

46

90-7831T1

LARGE PLATE

PLATE - wear

10шт.

47

90-7832T1

NEEDLE

- bearing, 44 per gear

220шт.

48

16-1607

BALL

- steel

8шт.

49

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

6шт.

61

90-4530T1

LARGE PLATE

PLATE - baffle

1шт.

62

90-7817T1

LARGE PLATE

TAB - locking, 4 mm thick

3шт.

64

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

65

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm

2шт.

66

90-4532T1

LARGE PLATE

PLATE - oil

1шт.

67

90-7836T1

PINION

GEAR - pinion, 19 teeth

5шт.

70

90-7761T1

BEARING CUP

CUP - tapered roller bearing

1шт.

71

90-7762T1

TAPERED BEARING

- tapered roller

1шт.

72

90-7759T1

TAPERED BEARING,230mm OD x 31mm W

CUP - tapered roller bearing

1шт.

73

90-7760T1

TAPERED BEARING,170mm ID x 38mm W

BEARING - tapered roller

1шт.

74

90-4477T2

DISC

WASHER - thrust

2шт.

75

90-7086T1

RING

- bearing adjusting

2шт.

76

90-5989T2

SEALING RING,158mm ID x 172.5mm OD x 9mm Thk

SEAL - spindle, oil

2шт.

77

90-5988T1

SEALING RING

- hub, includes wear sleeve

2шт.

78

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

9шт.
