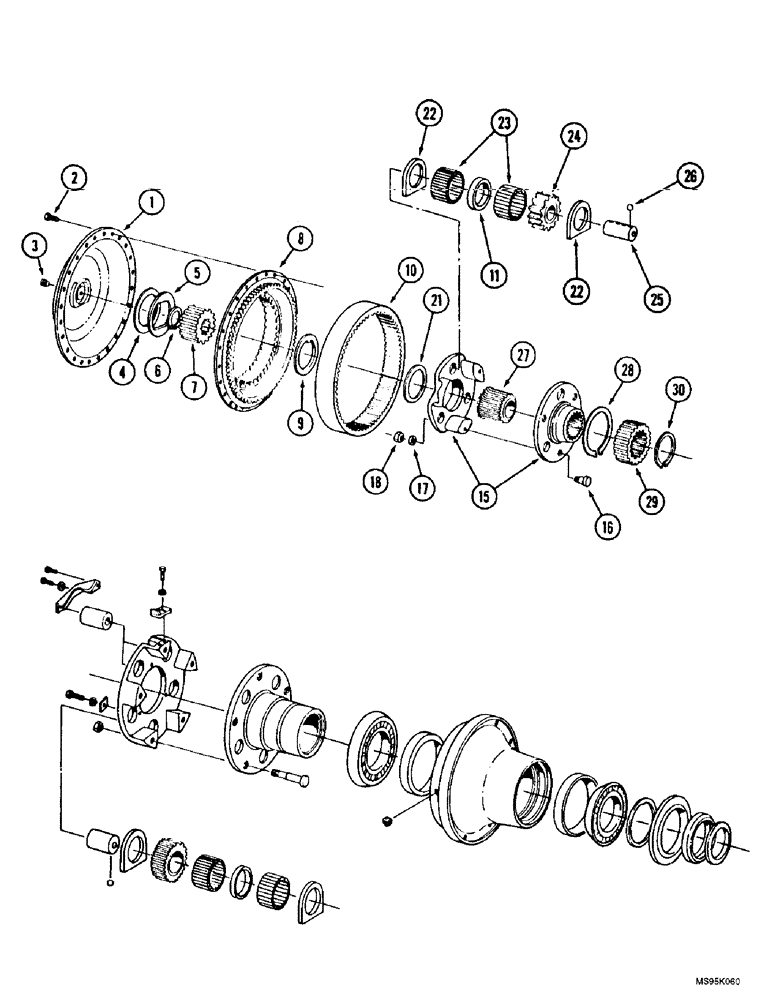

Запчасти Case IH 9350 (6-158) - FRONT STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY (06) - POWER TRAIN

90-8061T91

AXLE

ASSEMBLY - front, without limited slip differential, 695.75, parts list Figures 6-156 - 6-170, continued, Includes: Ref. 1 - 30 and 37 - 78 on Fig. 6-160

1шт.

90-8060T91

AXLE

ASSEMBLY - front, with limited slip differential, 695.72, parts list Figures 6-156 - 6-166, 6-172 and 6-174, continued, Includes: Ref. 1 - 30 and 37 - 78 on Fig. 6-160

1шт.

1

90-7461T1

COVER

- axle end

2шт.

2

90-7371T1

FLANGE BOLT,M14 x 1.5 x 45mm

BOLT - flange, 14 mm - 1.5 x 45 mm, grade 10.9

48шт.

3

90-2523T1

PLUG

- special, socket head, 24 mm - 1.5

2шт.

4

90-7462T1

SHIM

- dish, l.0 mm thick

1шт.

5

90-7435T1

DISC

DISK - wheel end

2шт.

6

16-1596

RING, SNAP

RING - snap

2шт.

7

90-4519T1

PINION

GEAR - sun, 45 teeth

2шт.

8

90-4521T1

GEAR, RING

GEAR - double ring

2шт.

9

90-4497T1

DISC

RING - spacer

2шт.

10

90-4529T1

GEAR, RING

GEAR - ring

2шт.

11

90-7837T1

RING

- distance

6шт.

90-8281T91

PINION CARRIER

CARRIER ASSEMBLY - planetary, Includes: Ref. 15 - 30

2шт.

15

90-8282T91

PINION CARRIER

CARRIER ASSEMBLY - planetary, includes both halves, Includes: Ref. 16 - 18

1шт.

16

16-1608T1

CAPTIVE WASHER SCREW

BOLT - hex shoulder, special

3шт.

17

16-1599

WASHER

- flat, special

3шт.

18

90-8126T1

NUT

- hex, special

3шт.

21

90-7438T1

SPACER

RING - spacer

1шт.

22

90-7831T1

LARGE PLATE

PLATE - wear, spacer

6шт.

23

90-7832T1

NEEDLE

- bearing, 44 per gear

132шт.

24

90-7840T1

PINION

GEAR - pinion, 26 teeth

3шт.

25

90-7833T1

PIN

SHAFT - planetary pinion, with lube hole

3шт.

26

16-1607

BALL

- steel

8шт.

27

90-4526T1

PINION

GEAR - sleeve

1шт.

28

90-4528T1

RING, SNAP

RING - snap

1шт.

29

90-7841T1

PINION

GEAR - sun

1шт.

30

16-1623

RING, SNAP

RING - snap, continued

1шт.
