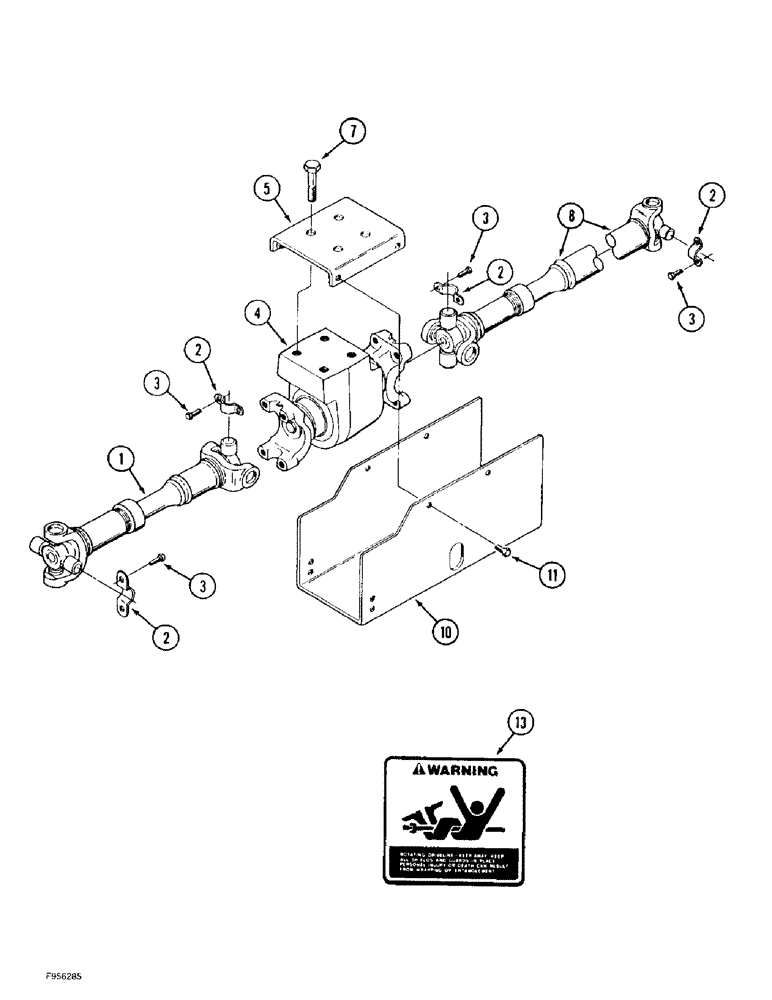

Запчасти Case IH 9350 (6-148) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

90-7008T91

SHAFT

ASSEMBLY - drive, PTO, clutch to hanger bearing, parts list Figure 6-150

1шт.

2

L116943

SECURING STRAP

RETAINER - drive shaft

8шт.

3

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, 12 pt Flg Hd, 3/8"-16 x 3/4, G8

16шт.

4

90-7037T91

CHUTE (DOWNWARD)

HANGER ASSEMBLY - drive shaft bearing, parts list Figure 6-150

1шт.

5

90-7603T1

LARGE PLATE

PLATE - mounting, drive shaft shield

1шт.

7

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, grade 8

4шт.

8

90-7009T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, PTO, hanger bearing to transfer case, parts list Figure 6-150

1шт.

10

90-7356T1

GUARD

SHIELD - drive shaft

1шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

13

2-7126T1

DECAL

- Warning, rotating driveline

2шт.
