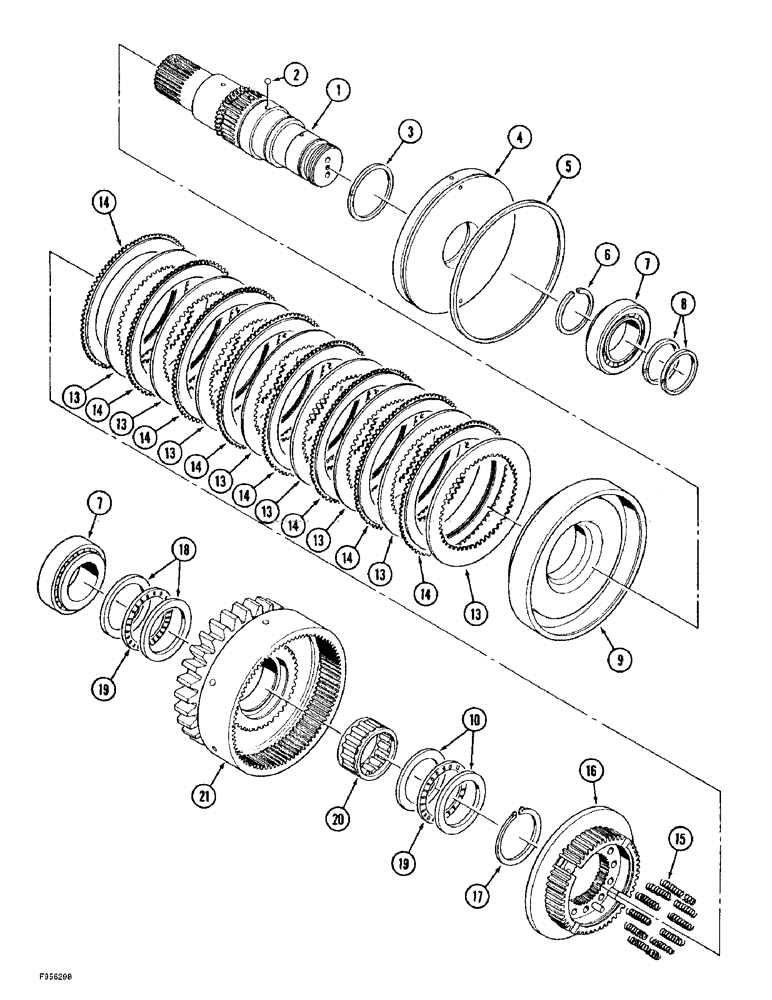

Запчасти Case IH 9350 (6-144) - PTO CLUTCH ASSEMBLY, CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

90-7045T93

REAR PTO ASSY

CLUTCH ASSEMBLY - PTO, includes parts listed on Figures 6-140 - 6-146, continued, Includes: Ref. 1 - 21

1шт.

S8590S01A

CLUTCH

PACK ASSEMBLY - clutch, PTO, replaces S8590S00A pack, Includes: Ref. 1 - 21

1шт.

1

S8610S01A

SHAFT

- input, PTO

1шт.

2

SM3272036

BALL

- steel

1шт.

3

S2610S00F

RING

- piston

1шт.

Part of PTO clutch overhaul kit P/N S9870S01F

1шт.

4

S9190S00F

LARGE PLATE

PLATE - reaction

1шт.

5

S2630S00F

RING

- sealing

1шт.

Part of PTO clutch overhaul kit P/N S9870S01F

1шт.

6

S2240S00F

RING, SNAP

RING - retaining

1шт.

7

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

BEARING - roller

2шт.

8

S3070S00F

RING

- sealing

2шт.

Part of PTO clutch overhaul kit P/N S9870S01F

1шт.

9

33-1526T1

PISTON

- clutch

1шт.

10

S2220S00F

THRUST WASHER

WASHER - thrust, 2.4 mm

2шт.

13

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick, flat

8шт.

14

33-1518T2

NOTCHED DISK

PLATE - friction

8шт.

15

S8690S00F

SPRING

- compression

12шт.

16

S9850S00A

HUB

- clutch

1шт.

17

S2100S00F

RING, SNAP

RING - snap

1шт.

18

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

- thrust, bearing, 3.2 mm, replaces S2200S00F washer

2шт.

19

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust, replaces S2230S00F bearing

2шт.

20

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

21

S8700S00A

PINION

GEAR - drive

1шт.

S9870S01F

KIT

- overhaul, PTO clutch, Includes: Refs. 3, 5, 8 and Figures 6-140 - 6-146.

1шт.
