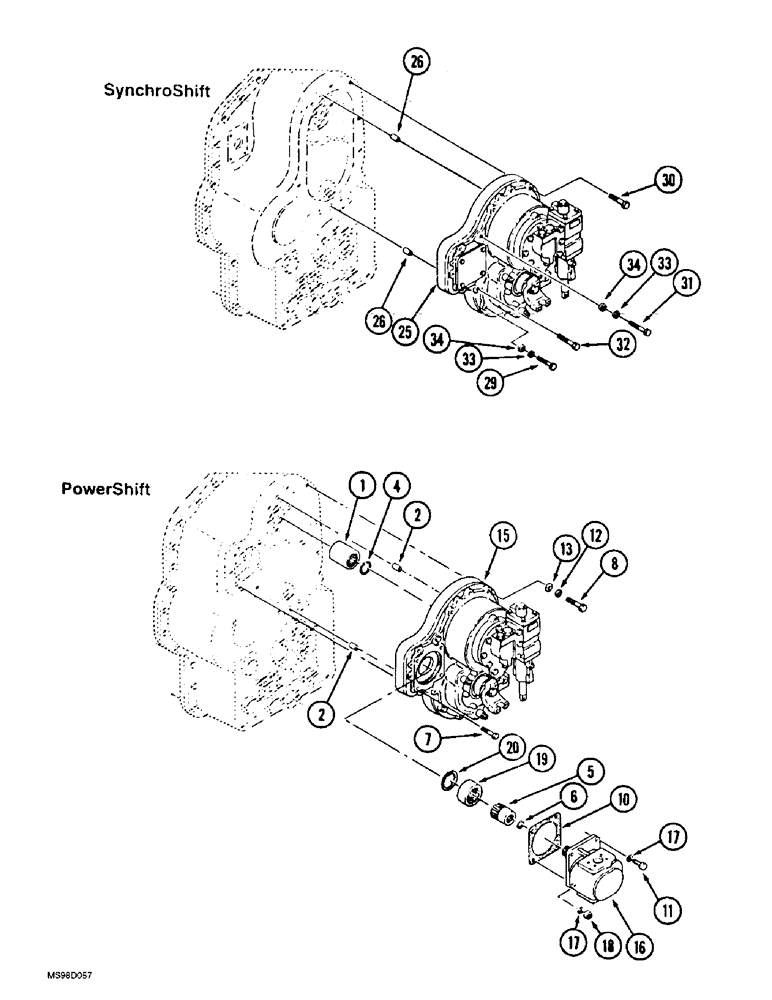

Запчасти Case IH 9350 (6-138) - PTO CLUTCH MOUNTING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
90-7517T1
SLEEVE
- drive coupling
1шт.
2
33-1467T1
DOWEL
PIN - dowel
2шт.
4
SM922247
RING, SNAP
RING - snap
1шт.
5
33-1528T1
COUPLING
ADAPTER - pump drive, used only on transmissions with PTO, see Figure 6-6 for adapter on transmissions without PTO
1шт.
6
33-1446T1
RING, SNAP
RING - snap
1шт.
7
SM8124280
BOLT
BOLT - hex, 12 - 1.25 x 95 mm
4шт.
8
SM8124290
BOLT
BOLT - hex, 12 - 1.25 x 90 mm
8шт.
8
SM8124295
BOLT
BOLT - hex, 12 - 1.25 x 95 mm
2шт.
8
SM8124285
BOLT
BOLT - hex, 12 - 1.25 x 85 mm
1шт.
10
50-1388T2
GASKET
- pump
1шт.
11
SM8124460
BOLT
BOLT - hex, 8 - 1.50 x 60 mm
2шт.
12
SM8915342
LOCK WASHER
WASHER - lock, 12 mm
3шт.
15
90-7045T93
REAR PTO ASSY
CLUTCH ASSEMBLY - PTO, parts list Figures 6-140 - 6-146
1шт.
16
33-1524T91
PUMP, HYDRAULIC
PUMP ASSEMBLY - transmission lubrication, parts list Figure 6-32
1шт.
33-1524T91R
REMAN-HYD PUMP
9350 (6/95-8/00)
1шт.
33-1524T91C
CORE-HYDRAULIC PUMP
Return Number
1шт.
17
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER - lock, 14 mm
4шт.
18
SM8911244
NUT
- hex, 14 mm - 1.5
2шт.
19
33-1452T1
COUPLING
- pump
1шт.
20
33-1445T1
RING, SNAP
RING - snap
1шт.
25
90-7045T93
REAR PTO ASSY
CLUTCH ASSEMBLY - PTO, parts list Figures 6-140 - 6-146, SynchroShift Tractor
1шт.
26
33-1467T1
DOWEL
PIN - dowel, SynchroShift Tractor
2шт.
29
SM8124295
BOLT
BOLT - hex, 12 - 1.25 x 95 mm, SynchroShift Tractor
2шт.
30
SM8124290
BOLT
BOLT - hex, 12 - 1.25 x 90 mm, SynchroShift Tractor
10шт.
31
SM8124285
BOLT
BOLT - hex, 12 - 1.25 x 85 mm, SynchroShift Tractor
1шт.
32
SM8124280
BOLT
BOLT - hex, 12 - 1.25 x 95 mm, SynchroShift Tractor
1шт.
33
SM8915342
LOCK WASHER
WASHER - lock, 12 mm, SynchroShift Tractor
5шт.
34
WASHER,13.5mm ID x 24mm OD x 2.5mm Thk
- flat, 13.5 x 24 x 2.5 mm, Synchroshift tractor
5шт.
Выбрано товаров: 29
