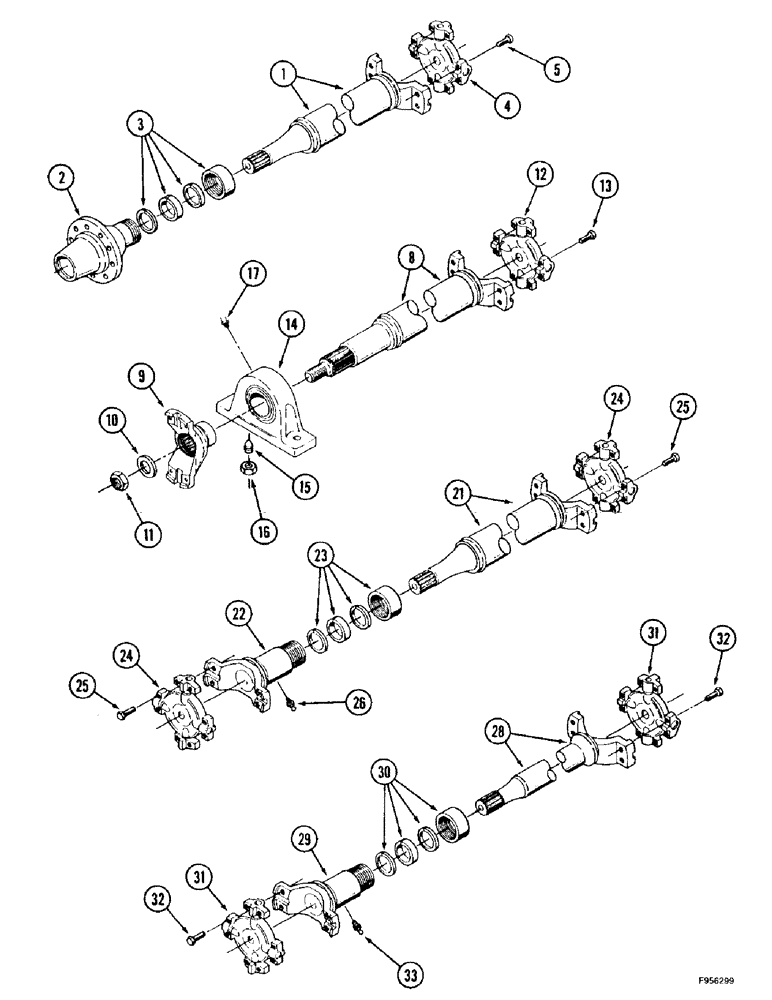

Запчасти Case IH 9350 (6-134) - DRIVE SHAFT, SYNCHROSHIFT TRANSMISSION TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7746T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, input 7C, engine to transmission, Includes: Ref. 1 - 5 Rear Axle
1шт.
1
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke, Rear Axle
1шт.
2
NSS
NOT SOLD SEPARAT
SHAFT - flanged, Rear Axle
1шт.
3
2-3843T1
RING, SET
SEAL - shaft retainer, Rear Axle
1шт.
4
90-5882T2
U-JOINT SPIDER
SPIDER - shaft, 7C, Rear Axle
1шт.
5
328-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
Rear Axle Hex, 1/2"-20 x 2", G8
4шт.
90-7629T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, intermediate to rear axle, Includes: Ref. 8 - 13
1шт.
8
NSS
NOT SOLD SEPARAT
SHAFT - tube, intermediate to rear axle
1шт.
9
90-4658T1
JAW
YOKE - shaft, intermediate to rear axle
1шт.
10
396-11131
WASHER,1 5/16" x 2 1/2" x .150"
- flat, 1-5/16 x 2-1/2 x 9/64 inch, hardened, Intermediate to rear axle
1шт.
11
131-487
LOCK NUT,1 1/4"-18
NUT - heavy hex, self-locking, 1-1/4 - 18 inch, intermediate to rear axle
1шт.
12
90-5882T2
U-JOINT SPIDER
SPIDER - shaft, 7C, intermediate to rear axle
1шт.
13
328-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
Intermediate to rear axle Hex, 1/2"-20 x 2", G8
4шт.
14
90-4657T1
BEARING CARRIER
- pillow block, shaft, Includes: Ref. 15, 16, intermediate to rear axle
1шт.
15
84-23812
SET SCREW,Hex Soc, 3/8"-24 x 3/4"
SCREW - set, hex socket headless, 3/8 NF x 3/4 inch, cone point, intermediate to rear axle
1шт.
16
425-156
JAM NUT,Jam, 3/8"-24, G5
- hex, jam, 3/8 inch NF, Intermediate to rear axle
1шт.
17
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Intermediate to rear axle 90º, 1/8" NPT x .84" lg
1шт.
90-6180T92
DRIVE SHAFT
SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 21 - 26, intermediate to rear axle
1шт.
21
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke, intermediate to rear axle
1шт.
22
NSS
NOT SOLD SEPARAT
SHAFT - tube, intermediate to rear axle
1шт.
23
2-3843T1
RING, SET
SEAL - shaft retainer, intermediate to rear axle
1шт.
24
A182457
JOINT
SPIDER - shaft, intermediate to rear axle
2шт.
25
328-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
Intermediate to rear axle Hex, 1/2"-20 x 2", G8
8шт.
26
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch, intermediate to rear axle
1шт.
90-6181T92
DRIVE SHAFT
SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 28 - 33, intermediate to rear axle
1шт.
28
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke, intermediate to rear axle
1шт.
29
NSS
NOT SOLD SEPARAT
SHAFT - tube, intermediate to rear axle
1шт.
30
2-3843T1
RING, SET
SEAL - shaft retainer, intermediate to rear axle
1шт.
31
A182457
JOINT
SPIDER - shaft, intermediate to rear axle
2шт.
32
328-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
Intermediate to rear axle Hex, 1/2"-20 x 2", G8
8шт.
33
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch, intermediate to rear axle
1шт.
Выбрано товаров: 31
