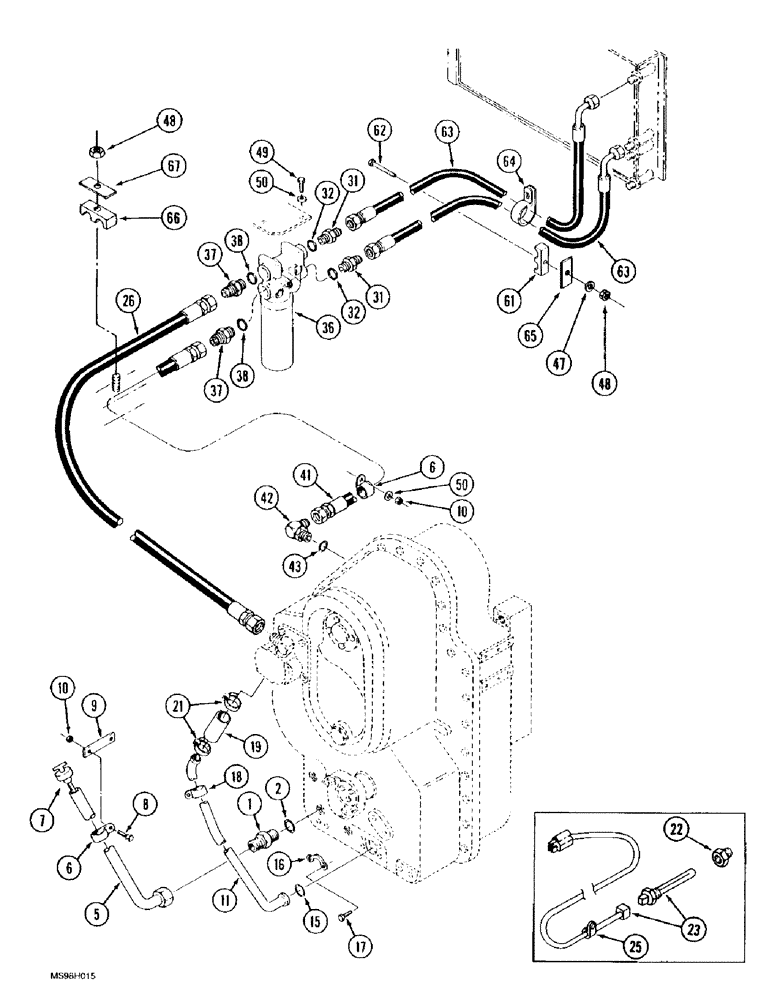

Запчасти Case IH 9350 (6-116) - TRANSMISSION LUBRICATION, TRANSMISSION TO OIL COOLER, POWER SHIFT TRACTOR (06) - POWER TRAIN

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

90-7023T1

TUBE,1.25" OD x 24.15" L

- dipstick

1шт.

6

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

7

90-6546T1

DIPSTICK

- oil check

1шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

5шт.

9

90-6588T1

SUPPORT

BRACKET - support, clamp mounting

1шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

90-7064T1

TUBE,1.5" OD

- pump to transmission, without PTO system

1шт.

11

90-7063T1

TUBE,1.5" OD

- pump to transmission, with PTO system

1шт.

15

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

16

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

17

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

18

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

19

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below

1шт.

21

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

22

50-3675T1

FITTING

ADAPTER - drain plug, special

1шт.

Part of heater maintainer kit P/N 35-2016T91

1шт.

23

A164503

HEATER ASSY.

HEATER - transmission, with cordset

1шт.

Part of heater maintainer kit P/N 35-2016T91

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Not shown

7шт.

Part of heater maintainer kit P/N 35-2016T91

1шт.

25

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

Part of heater maintainer kit P/N 35-2016T91

1шт.

26

31-3014

HOSE,25.4mm ID x 2082.8mm L

- 2058 mm ( 82 inch) long, replaces 31-2911 hose

1шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 32

2шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

50-3494T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - oil, transmission, parts list Figure 8-34

1шт.

37

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 38

2шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

41

31-2911

HOSE

- 1321 mm (52 inch) long, filter to transmission, replaces 31-3014 hose

1шт.

42

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 43

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

47

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

49

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

50

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

61

50-2534T1

CLAMP

- split, one-half

1шт.

62

426-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

1шт.

63

31-2985

HOSE

- filter to oil cooler

2шт.

64

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

- P-type 2 1/2", Insul, 1/2" Bolt

1шт.

65

50-2533T1

PLATE

- clamp support

1шт.

66

50-2965T1

HOSE CLAMP

CLAMP - double

1шт.

67

50-2668T1

PLATE

- clamp support

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

35-2016T91

UNIT HEATER

KIT - heater maintainer, Includes: Refs. 22 - 25.

1шт.
