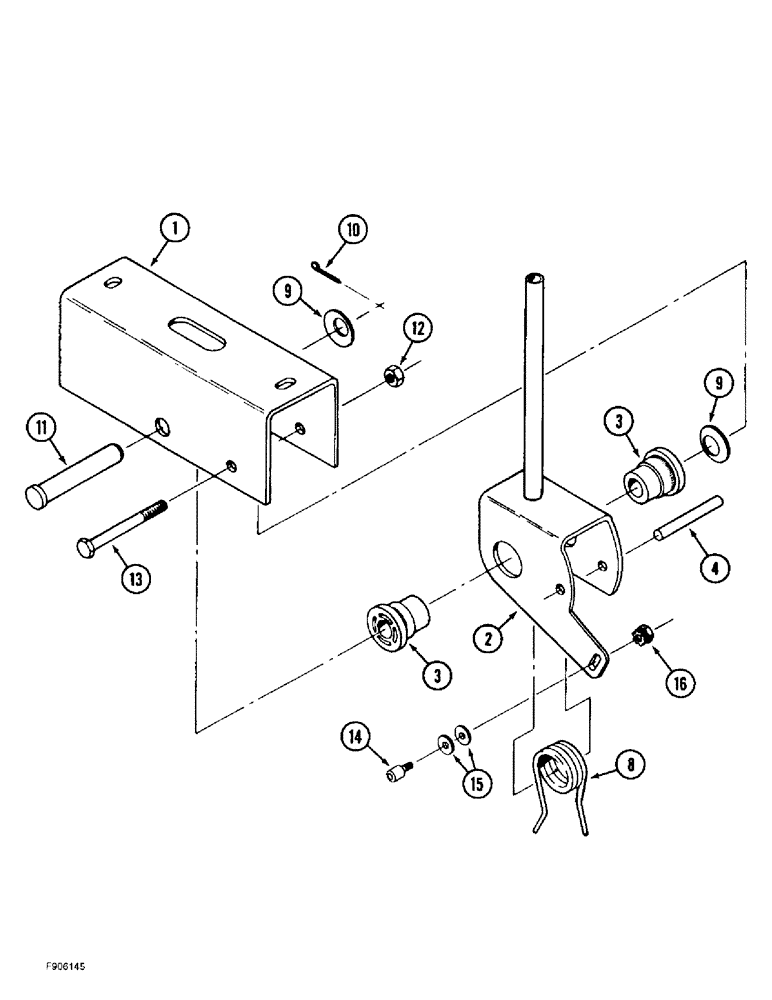

Запчасти Case IH 9350 (6-108) - TRANSMISSION SHIFT CONTROLS, PULSER CONTROL ASSEMBLY, POWER SHIFT TRACTOR (06) - POWER TRAIN

60-6483T92

CONTROL

ASSEMBLY - pulser, upshift or downshift, Includes: Ref. 1 - 13

1шт.

1

60-6485T1

SUPPORT

BRACKET - pulser control

1шт.

2

60-6484T2

CONTROL LEVER

LEVER - control, pulser

1шт.

3

60-6141T1

BUSHING

- flanged, nylon

2шт.

4

60-5892T1

PIN

- spring tension

1шт.

8

60-6197T1

SPRING

- return

1шт.

9

19-6034

SPRING WASHER

- spring, 1/2 x 1 x 1/64 inch

2шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

H382416

CLEVIS PIN

PIN - clevis, 1/2 x 2-1/4 inch

1шт.

12

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC

1шт.

13

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

14

20-1316T1

ACTUATOR

- mode, magnet

1шт.

15

495-21019

WASHER,#8

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

1шт.
