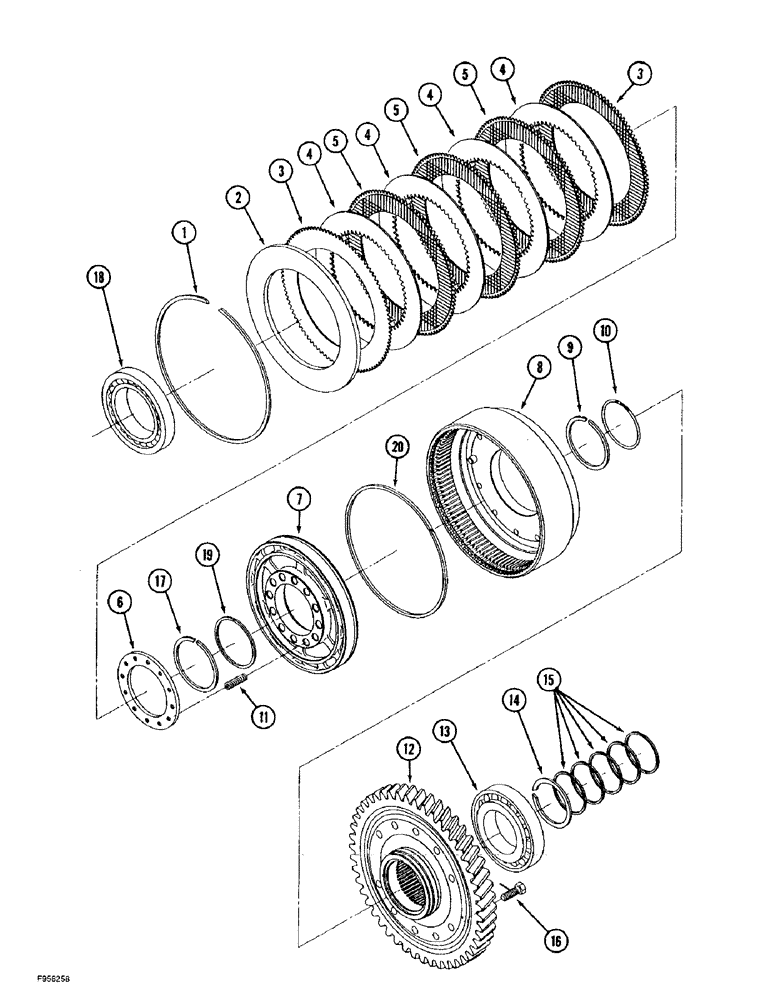

Запчасти Case IH 9350 (6-088) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, INPUT SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

90-7813T91

TRANSMISSION

ASSEMBLY - mechanical shift, 24-speed, parts list Figures 6-68 - 6-102, continued, Includes: Ref. 1 - 20

1шт.

90-8252T91

SHAFT ASSY.

SHAFT ASSEMBLY - input, continued, Includes: Ref. 1 - 20

1шт.

1

90-8233T1

RING, SNAP

RING - snap

1шт.

2

90-8234T1

PLATE

- end, clutch

1шт.

3

90-8235T1

CLUTCH DISC

PLATE - faced, clutch

2шт.

4

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 4, a total of four pieces must be used.

1шт.

4

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick

1шт.

Steel plates, Ref. 4, a total of four pieces must be used.

1шт.

5

33-1519T2

NOTCHED DISK

PLATE - faced

3шт.

6

90-8236T1

PLATE

- spring

1шт.

7

90-8237T1

PISTON

- clutch

1шт.

8

90-8238T1

CLUTCH HOUSING

DRUM - clutch

1шт.

9

33-1416T1

RING, SNAP

RING - retaining

1шт.

10

90-8239T1

O-RING

- special

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

11

S2640S00F

SPRING

- return

12шт.

12

90-8240T1

PINION

GEAR - drive, input

1шт.

13

90-7937T1

BEARING, ROLLER

CONE - tapered roller bearing

1шт.

14

33-1823T1

RING, SNAP

RING - retaining, external, 2.5 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

14

33-1824T1

RING, SNAP

RING - retaining, external, 2.6 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

14

33-1825T1

RING, SNAP

RING - retaining, external, 2.7 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

14

33-1826T1

RING, SNAP

RING - retaining, external, 2.8 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

14

33-1827T1

RING, SNAP

RING - retaining, external, 2.9 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

14

33-1828T1

RING, SNAP

RING - retaining, external, 3.0 mm

1шт.

Part of retaining ring kit P/N 90-8038T91.

1шт.

15

90-7938T1

SEALING RING

RING - seal

5шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

16

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 30 mm

10шт.

17

S5040S00F

RING

- retaining

1шт.

18

90-8230T1

TAPERED BEARING

BEARING - tapered roller

1шт.

19

S4410S00F

RING

- piston

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

20

S2630S00F

RING

- sealing

1шт.

90-8401T91

GASKET KIT

KIT gasket, transmission, Includes Ref. 10, 15, 19 on parts on Figures 6-068 - 6-102, Start Serial: JEE0071001

1шт.

90-8038T91

PACKAGE,SERVICE

KIT retaining ring, fourth shaft, Includes: Ref. 14

1шт.

Выбрано товаров: 41
