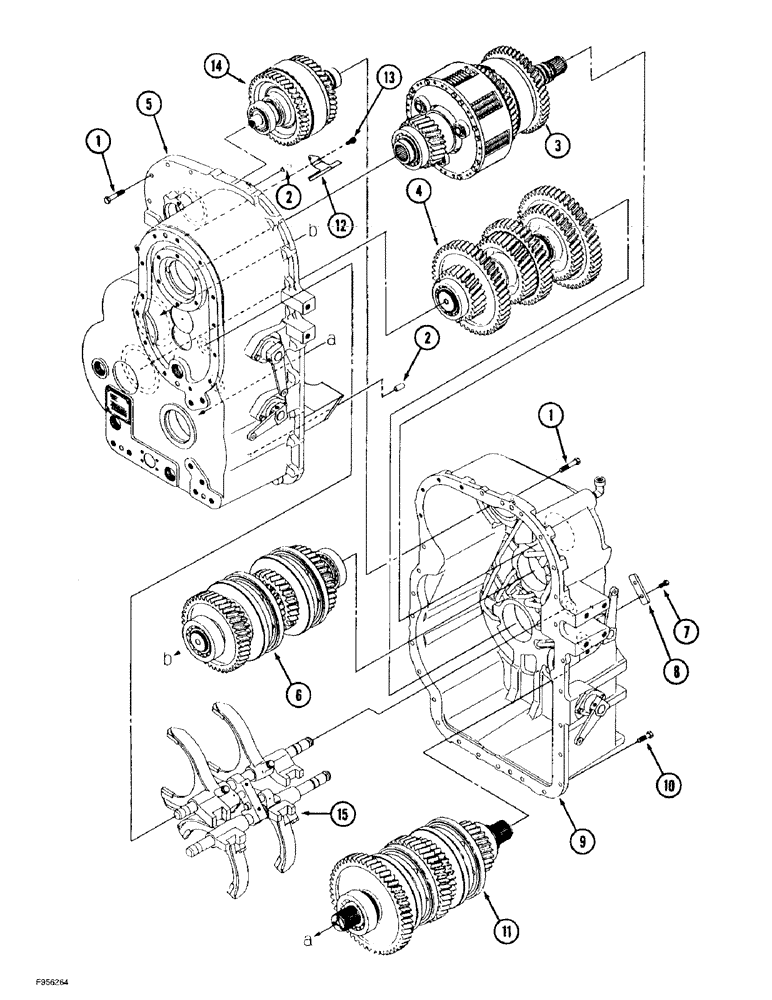

Запчасти Case IH 9350 (6-080) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, OIL GUTTER, SHAFT ASSEMBLIES AND SHIFTER ASSEMBLY (06) - POWER TRAIN

90-7813T91

TRANSMISSION

ASSEMBLY - mechanical shift, 24-speed, parts list Figures 6-68 - 6-102, continued, Includes: Ref. 1 - 15

1шт.

1

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

13шт.

2

33-1467T1

DOWEL

PIN - dowel

2шт.

3

90-8252T91

SHAFT ASSY.

SHAFT ASSEMBLY - input, parts list Figures 6-84 - 6-86

1шт.

4

90-7986T91

SHAFT ASSY.

SHAFT ASSEMBLY - fourth, parts list Figure 6-94

1шт.

5

90-7987T1

HOUSING

- rear, transmission

1шт.

6

90-7988T91

SHAFT ASSY.

SHAFT ASSEMBLY - third, parts list Figure 6-92

1шт.

7

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

33-1746T1

LARGE PLATE

PLATE - lock

1шт.

9

90-8422T1

HOUSING

- front, transmission, replaces 90-7989T1 housing

1шт.

10

514-830

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

Hex, M12 x 1.25 x 40, 8.8, Full Thd

16шт.

11

90-7990T91

SHAFT ASSY.

SHAFT ASSEMBLY - fifth, parts list Figure 6-96

1шт.

12

33-1812T1

CONDUIT

LIP - oil, reverse gear

1шт.

13

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

14

90-8251T91

SHAFT ASSY.

SHAFT ASSEMBLY - pump drive, parts list Figure 6-90

1шт.

15

90-7944T1

SHIFTER FORK

FORK - shift, first-reverse, parts list Figure 6-82

1шт.
