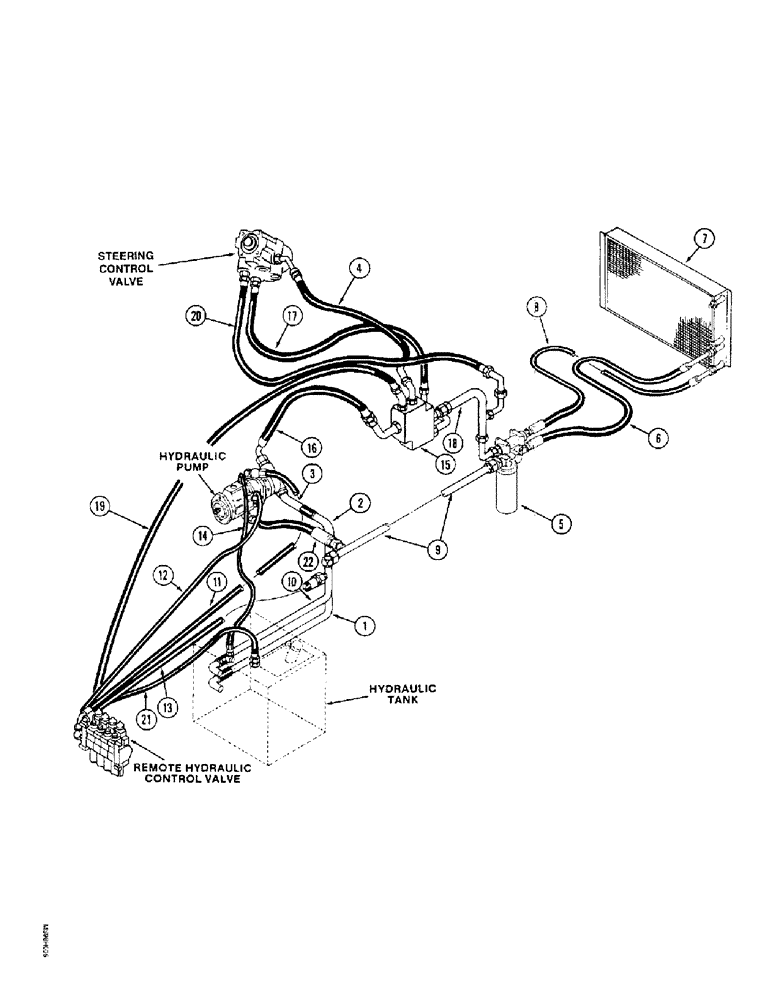

Запчасти Case IH 9350 (1-14) - PICTORIAL INDEX, HIGH OUTPUT HYDRAULICS, 9350 MODELS EXCEPT ROW CROP SPECIAL (00) - PICTORIAL INDEX

1

Gear Pump Inlet Tube, 8-9

1шт.

2

Gear Pump Inlet Elbow, 8-9

1шт.

3

Gear Pump Inlet Elbow, 8-9

1шт.

4

Steering Control Supply Line, 5-15, 8-15

1шт.

5

Oil Filter, 8-15, 8-17, 8-35

1шт.

6

Oil Cooler Supply Hose, 8-15

1шт.

7

Oil Cooler , 8-37

1шт.

8

Oil Cooler Return Hose, 8-15

1шт.

9

Filter Drain Tube, 8-15

1шт.

10

Drain Tube to Tank, 8-15

1шт.

11

Control Valve Supply Hose, 8-15

1шт.

12

Hydraulic Pump Sensing Hose, 8-9

1шт.

13

Control Valve Drain Hose, 8-15

1шт.

14

Hydraulic Pump Drain Hose, 8-9

1шт.

15

Priority Valve, 8-9, 8-31

1шт.

16

Gear Pump to Priority Valve, 8-15

1шт.

17

Steering Control Sense Line, 5-15, 8-9

1шт.

18

Return Tube, 8-15

1шт.

19

Priority Valve to Hydraulic Control Valve, 8-9

1шт.

20

Steering Valve Return Line, 5-15, 8-15

1шт.

21

Return Hose, 8-9

1шт.

22

Piston Pump Supply Line, 8-15

1шт.
