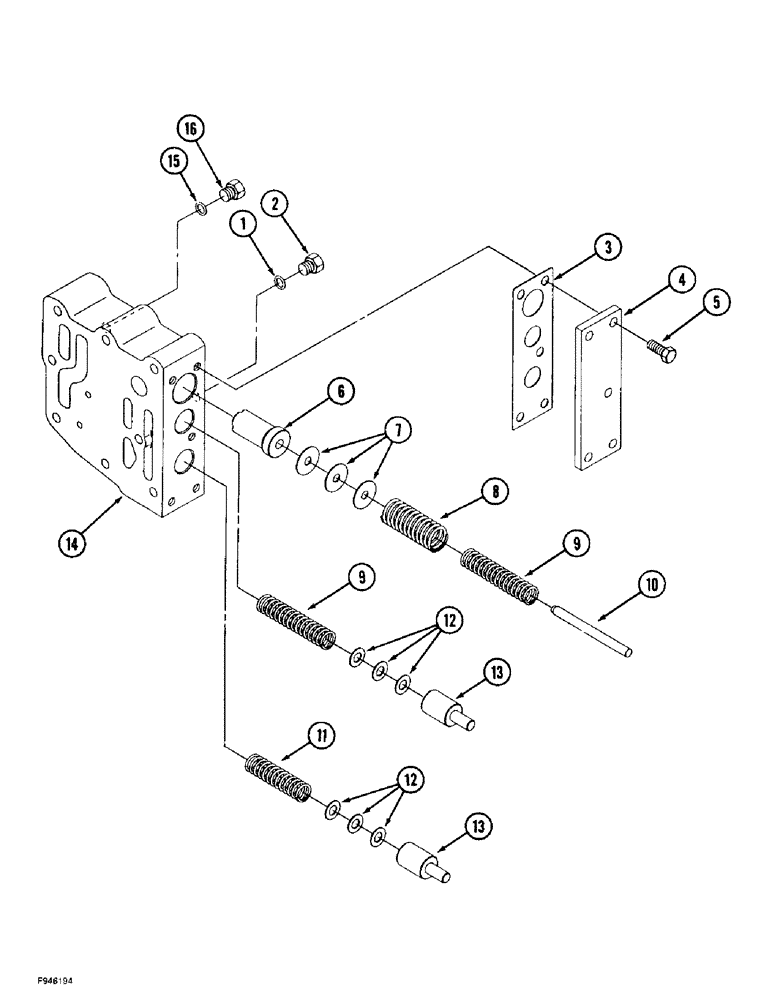

Запчасти Case IH 9350 (6-062) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, REGULATOR VALVE (06) - POWER TRAIN

90-7774T91

TRANSMISSION

ASSEMBLY - manual shift, parts list Figures 6-36 - 6-66

1шт.

S7000S01F

VALVE

ASSEMBLY - regulator

1шт.

1

S1040S00F

O-RING

- plug

9шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

2

S1030S00F

PLUG

- hex, O-ring boss

1шт.

3

S7090S00F

GASKET

- valve cover

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

4

S7110S00F

COVER

- valve body

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

6

S7030S01F

VALVE

- regulator

1шт.

7

S7010S00F

SHIM,.039" Thk

1шт.

8

S7120S00F

SPRING

- compression

1шт.

9

S7050S00F

SPRING

- compression

2шт.

10

S7020S00F

STEM

ROD - pressure

1шт.

11

S7070S00F

SPRING

- compression

1шт.

12

S7080S00F

SHIM,.031" Thk

1шт.

13

S7060S00F

VALVE

- lube

2шт.

14

S7040S00F

VALVE BODY

BODY - regulator valve, no longer available, order S7000S01F valve

1шт.

15

S1320S00F

O-RING

- plug

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

16

S1390S00F

PLUG

- O-ring boss

1шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, Includes Figures 6-36 - 6-66, Serial Range: -JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Refs. 1, 3 and 15. Also see Figures 6-36 - 6-66, Start Serial: JEE0071001

1шт.
