(6-052) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, SHIFTER FORK ASSEMBLY

Запчасти Case IH 9350 (6-052) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, SHIFTER FORK ASSEMBLY (06) - POWER TRAIN

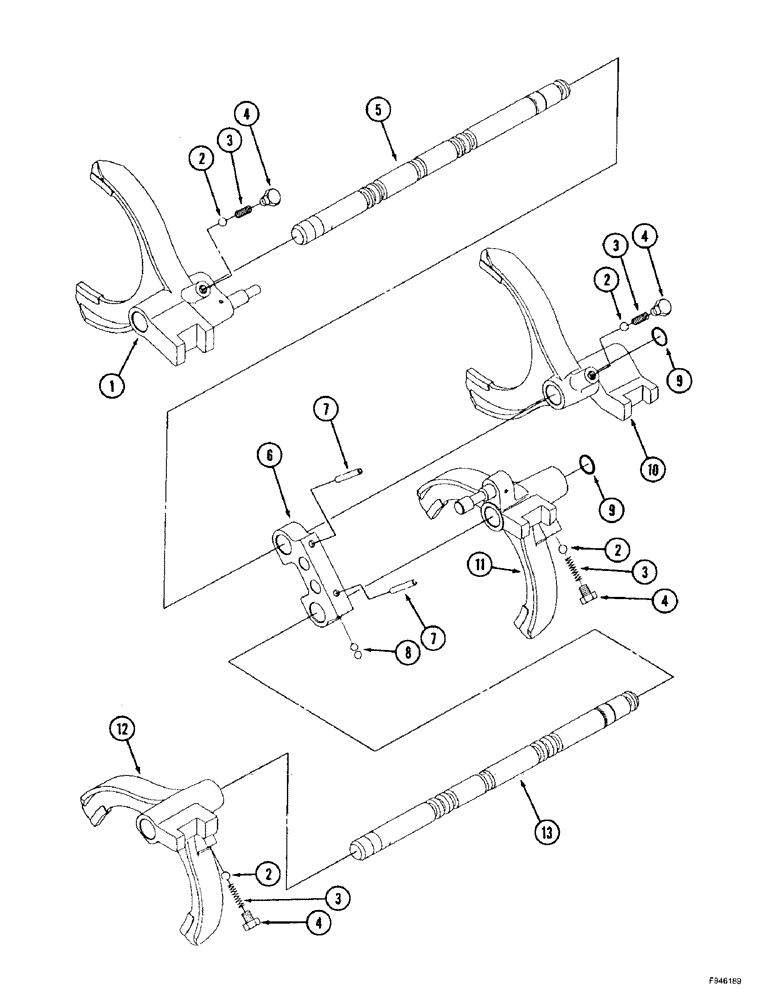

Схема запчастей Case IH 9350 - (6-052) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, SHIFTER FORK ASSEMBLY (06) - POWER TRAIN
12
2
7
13
3
7
4
3
1
11
2
3
4
10
2
2
4
8
5
3
4
6
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-7774T91

TRANSMISSION

ASSEMBLY - manual shift, parts list Figures 6-36 - 6-66, Includes: Ref. 1 - 13

1шт.

1

90-7944T1

SHIFTER FORK

FORK - shift, first-reverse

1шт.

2

33-1757T1

BALL

- steel, fork detent

4шт.

3

33-1786T1

SPRING

- detent ball

4шт.

4

33-1759T1

PLUG

- detent spring

4шт.

5

90-7945T1

ROD

- shift, speed

1шт.

6

90-7946T1

ACTUATING PLATE

PLATE - interlock

1шт.

7

90-7947T1

PIN

- spring

2шт.

8

33-1756T1

BALL

- steel

2шт.

9

33-1745T1

GASKET

O-RING - seal, fork

2шт.

Part of gasket kit P/N 90-8402T91

1шт.

10

90-7949T1

SHIFTER FORK

FORK - shift, second-third speeds

1шт.

11

90-7950T1

SHIFTER FORK

FORK - shift, C-D ranges

1шт.

12

90-7951T1

SHIFTER FORK

FORK - shift, A-B ranges

1шт.

13

90-7952T1

ROD

- shift, range

1шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, also see Figures 6-36 - 6-66, Serial Range: -JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 9. Also see Figures 6-36 - 6-66, Start Serial: JEE0071001

1шт.
