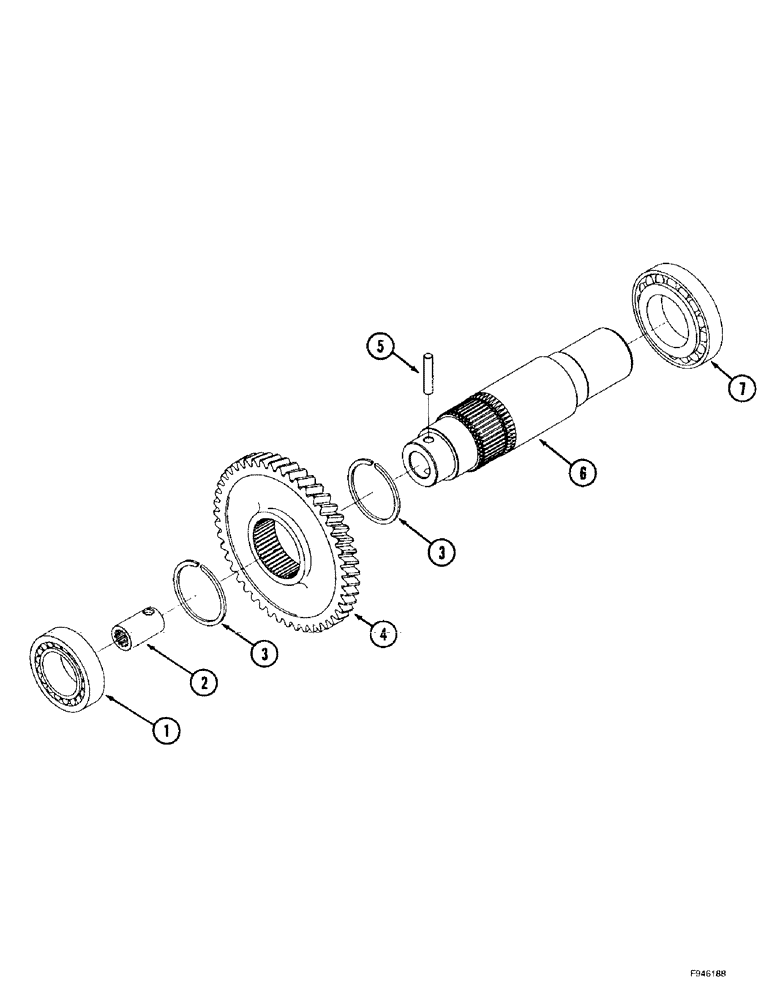

Запчасти Case IH 9350 (6-050) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, PUMP DRIVE SHAFT (06) - POWER TRAIN

90-7774T91

TRANSMISSION

ASSEMBLY - manual shift, parts list Figures 6-36 - 6-66, continued, Includes: Ref. 1 - 7

1шт.

1

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - tapered roller bearing

1шт.

1

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - tapered roller bearing

1шт.

2

90-7939T1

TRANSMISSION SLEEVE

COUPLING - sleeve, pump

1шт.

3

33-1416T1

RING, SNAP

RING - retaining

2шт.

4

90-7940T1

PINION

GEAR - driven, pump drive shaft

1шт.

5

90-7941T1

DOWEL

PIN - dowel

1шт.

6

90-7942T1

SHAFT

- pump drive

1шт.

7

90-7937T1

BEARING, ROLLER

CONE - tapered roller bearing

1шт.
