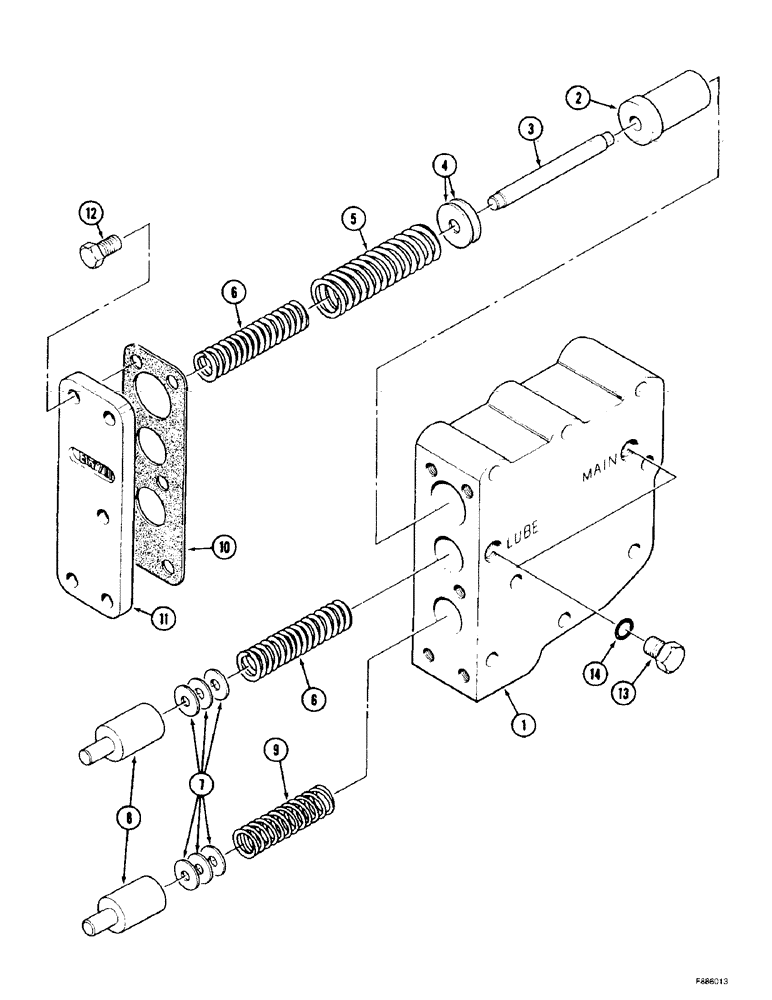

Запчасти Case IH 9350 (6-028) - POWER SHIFT TRANSMISSION ASSEMBLY, REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 1 - 14

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S7000S01F

VALVE

ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

S7040S00F

VALVE BODY

BODY - regulator valve

1шт.

2

S7030S01F

VALVE

- regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

- compression

1шт.

6

S7050S00F

SPRING

- compression

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

- lube

2шт.

9

S7070S00F

SPRING

- compression

1шт.

10

S7090S00F

GASKET

- valve cover

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

11

S7110S00F

COVER

- valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, 8 - 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

- hex, O-ring boss, Includes: Ref. 14

2шт.

14

S1040S00F

O-RING

- plug

2шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 10. Also see Figures 6-6 - 6-28.

1шт.
