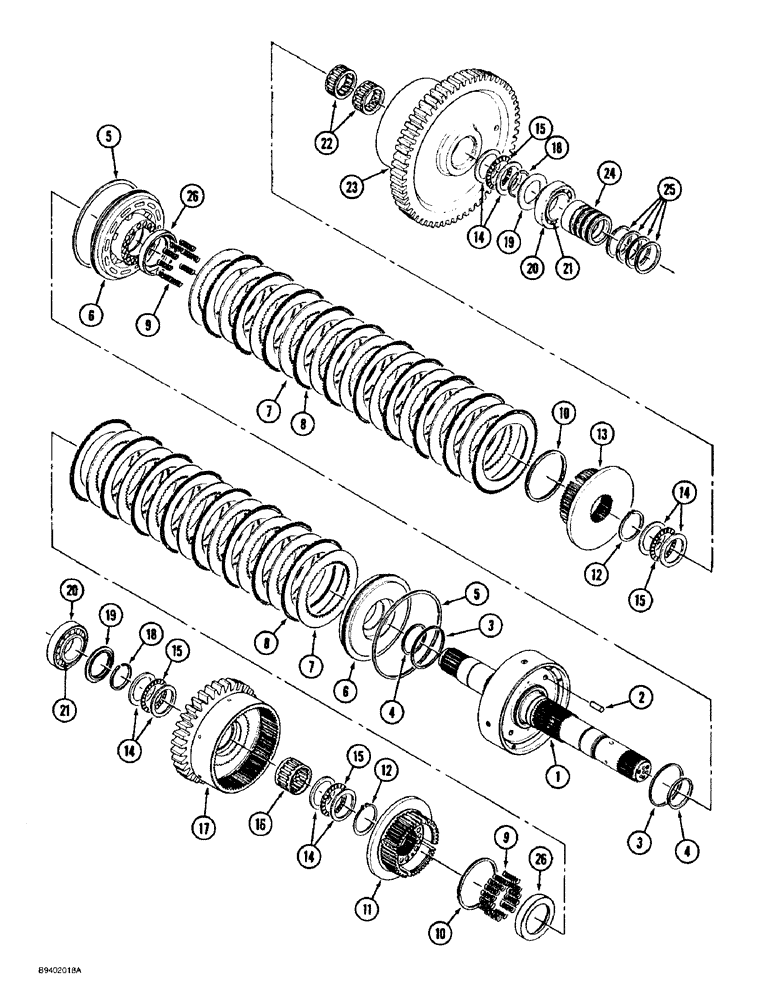

Запчасти Case IH 9350 (6-022) - POWER SHIFT TRANSMISSION ASSEMBLY, 8 INCH CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 1 - 26

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S4000S02F

CLUTCH HOUSING

PACK ASSEMBLY - clutch, 8 inch, Includes: Ref. 1 - 26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 2

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

4

S4410S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

5

S4430S00F

RING

- sealing

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

6

S4180S02F

PISTON

- clutch

2шт.

7

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 7, a total of 18 pieces must be used.

1шт.

7

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick

1шт.

Steel plates, Ref. 7, a total of 18 pieces must be used.

1шт.

8

33-1519T2

NOTCHED DISK

PLATE - faced

18шт.

9

S4440S00F

SPRING

- return, piston

22шт.

10

S4390S00F

RING, SNAP

RING - retaining

2шт.

11

S4100S01G

HUB

- clutch

1шт.

12

S2100S00F

RING, SNAP

RING - snap

2шт.

13

S4380S01G

HUB

- clutch

1шт.

14

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

- thrust, bearing, 3.2 mm

8шт.

15

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust

4шт.

16

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING - needle, caged, replaces S2210S00F bearing

1шт.

17

S4210S00F

PINION

GEAR - output, 38 teeth

1шт.

18

S2240S00F

RING, SNAP

RING - retaining

2шт.

19

S4040S00F

SPACER

- bearing

2шт.

20

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

CUP - tapered roller bearing

2шт.

21

ST2016A

BEARING

- tapered roller

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - roller

2шт.

23

S4170S00F

PINION

GEAR - output, 59 teeth

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

- sealing

4шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

26

S4530S02F

LARGE PLATE

PLATE - retaining, spring

2шт.

33-1559T2

GASKET

KIT gasket, transmission rebuild, Includes Ref. 3, 4, 5, 25 and parts on Figures 6-6 - 6-28

1шт.
