Запчасти Case IH 9350 (6-018) - POWER SHIFT TRANSMISSION ASSEMBLY, 7 INCH INPUT CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

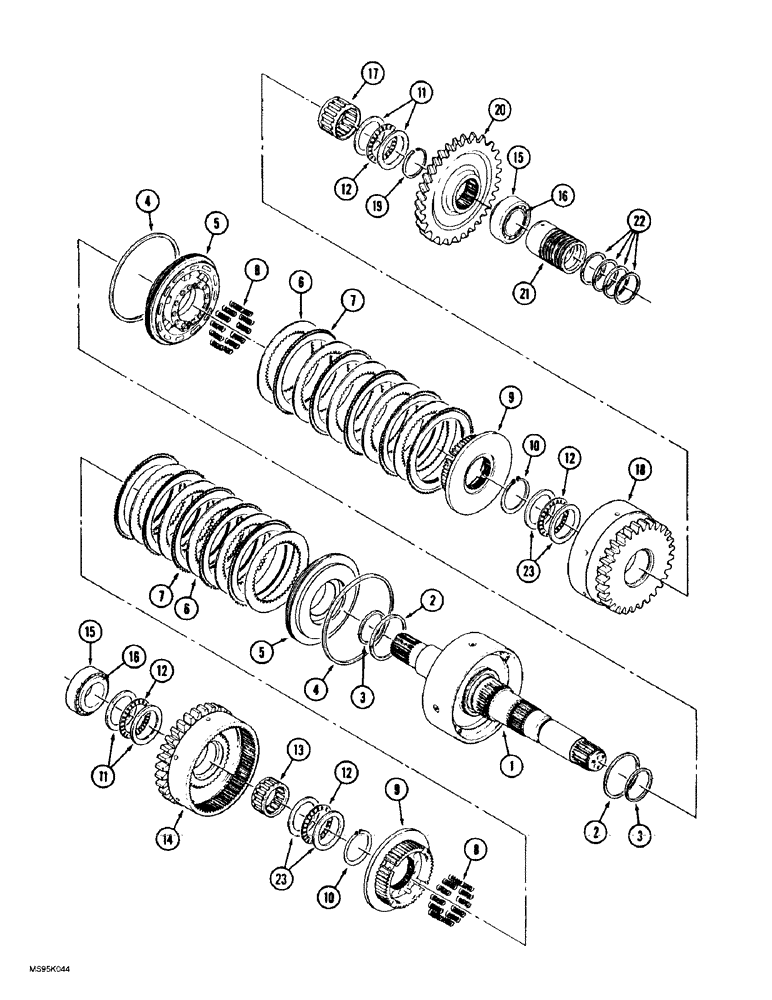

Схема запчастей Case IH 9350 - (6-018) - POWER SHIFT TRANSMISSION ASSEMBLY, 7 INCH INPUT CLUTCH PACK ASSEMBLY (06) - POWER TRAIN
2
12
9
8
11
18
17
2
14
3
23
5
16
19
13
15
8
4
5
10
15
1
9
16
11
12
21
7
12
20
10
4
22
6
6
23
7
3
12

Артикул

Название

Примечание

Количество

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 1 - 23

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S2000S02F

CLUTCH & DISC ASSY

PACK ASSEMBLY - clutch, input, replaces S2000S01A pack, Includes: Ref. 1 - 23

1шт.

1

S2900S01F

SHAFT ASSY.

SHAFT - drum, also order (4) S2220S00F washers, Ref. 23

1шт.

2

S2620S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

3

S2610S00F

RING

- piston

2шт.

4

S2630S00F

RING

- sealing

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

5

33-1521T1

PISTON

- clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 6, a total of ten pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick

1шт.

Steel plates, Ref. 6, a total of ten pieces must be used.

1шт.

7

33-1518T2

NOTCHED DISK

PLATE - friction

10шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00H

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

- thrust, bearing, 3.2 mm

4шт.

12

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S00F

PINION

GEAR - drive, 32 teeth

1шт.

15

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - tapered roller bearing

2шт.

16

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - tapered roller bearing

2шт.

17

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING - needle, caged, replaces S2210S00F bearing

1шт.

18

S2280S00F

PINION

GEAR - drive, 29 teeth

1шт.

19

S2240S00F

RING, SNAP

RING - retaining

1шт.

20

S2270S02F

PINION

GEAR - input, replaces S2270S01F gear

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING - sealing

4шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

23

S2220S00F

THRUST WASHER

WASHER - thrust, bearing, 2.4 mm

4шт.

33-1559T2

GASKET

KIT gasket, transmission rebuild, Includes Ref. 2, 4 and 22 and parts on Figures 6-6 - 6-28

1шт.

Выбрано товаров: 34
