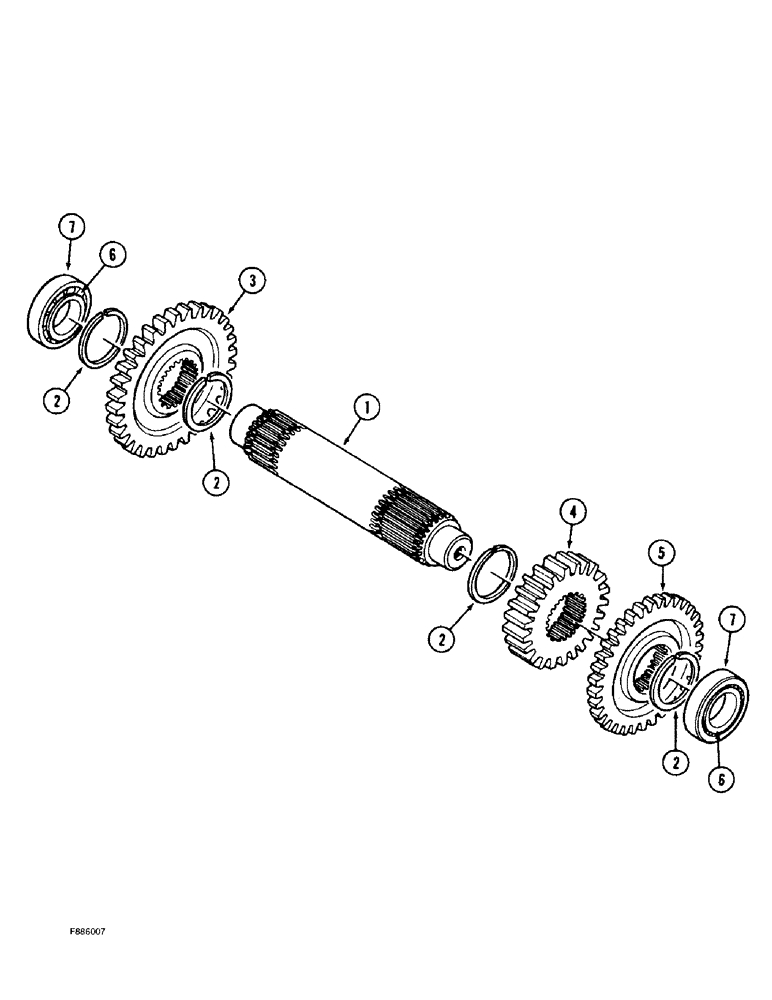

Запчасти Case IH 9350 (6-016) - POWER SHIFT TRANSMISSION ASSEMBLY, COMPOUND SHAFT (06) - POWER TRAIN

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 1 - 7

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

1

33-1436T1

SHAFT

- compound

1шт.

2

33-1416T1

RING, SNAP

RING - retaining

4шт.

3

33-1415T3

PINION

GEAR - compound shaft

1шт.

4

33-1434T1

PINION

GEAR - drive, 22 teeth

1шт.

5

33-1435T1

PINION

GEAR - driven, 29 teeth

1шт.

6

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - tapered roller bearing

2шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - tapered roller bearing

2шт.
