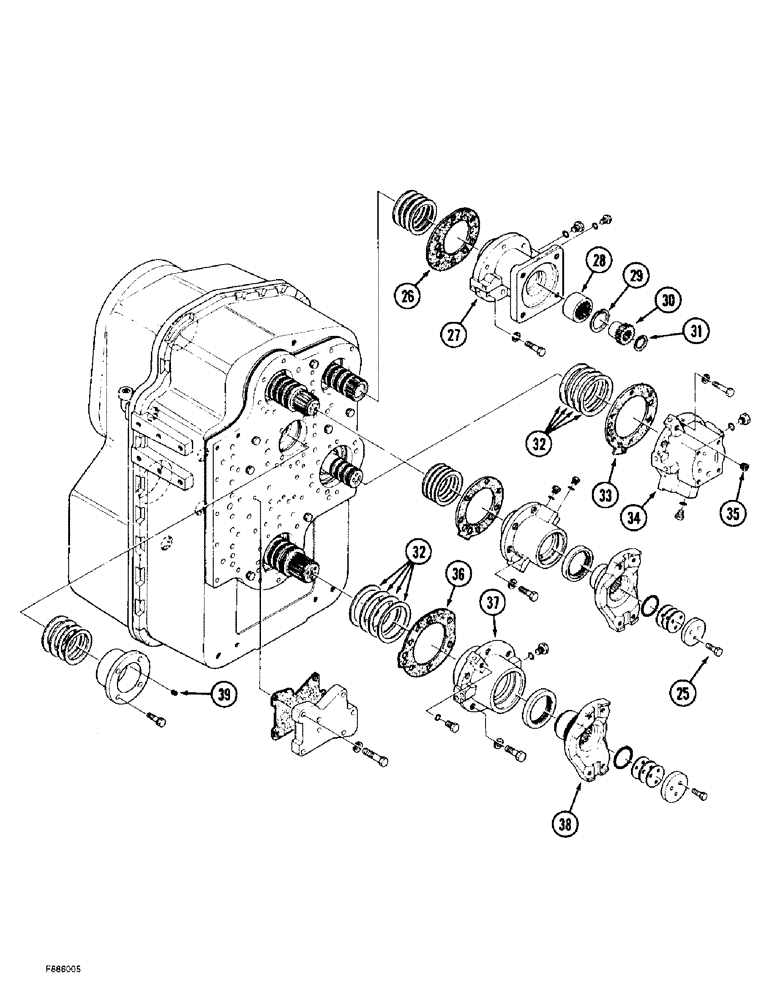

Запчасти Case IH 9350 (6-012) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKE, (CONT) (06) - POWER TRAIN

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 25 - 39 and 1 - 24 on Fig. 6-10

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

25

SM8134035

BOLT

BOLT - hex, 10 mm - 1.25 x 35 mm, class 10.9

3шт.

26

33-1468T2

GASKET

- pump support

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

27

33-1514T1

HOLDER

SUPPORT - oil pump

1шт.

28

33-1444T1

COUPLING

- pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING - snap

1шт.

30

33-1515T1

ADAPTER

- pump drive

1шт.

31

33-1517T1

RING, SNAP

RING - snap

1шт.

32

33-1460T1

SHIM

- bearing, 0.1 mm thick

1шт.

32

33-1461T1

SHIM

- bearing, 0.3 mm thick

1шт.

32

33-1462T1

SHIM

- bearing, 0.5 mm thick

1шт.

32

33-1463T1

SHIM

- bearing, 0.7 mm thick

1шт.

32

33-1475T1

SHIM

- bearing, 0.15 mm thick

1шт.

33

33-1433T2

GASKET

- clutch collector

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

- collector

1шт.

36

33-1426T2

GASKET

- bearing retainer

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1431T1

YOKE

- output

1шт.

39

33-1439T1

PLUG

- orifice

2шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Refs. 1, 2, 16, 18, 20 and 22. Also see Figures 6-6 - 6-28

1шт.

90-8402T91

GASKET KIT

KIT - gasket, Includes: Refs. 9, 13, 26, 33 and 36. Also see Figures 6-6 - 6-12 and 6-30

1шт.
