Запчасти Case IH 9330 (4-046) - FRONT FRAME WORK LAMPS (04) - ELECTRICAL SYSTEMS

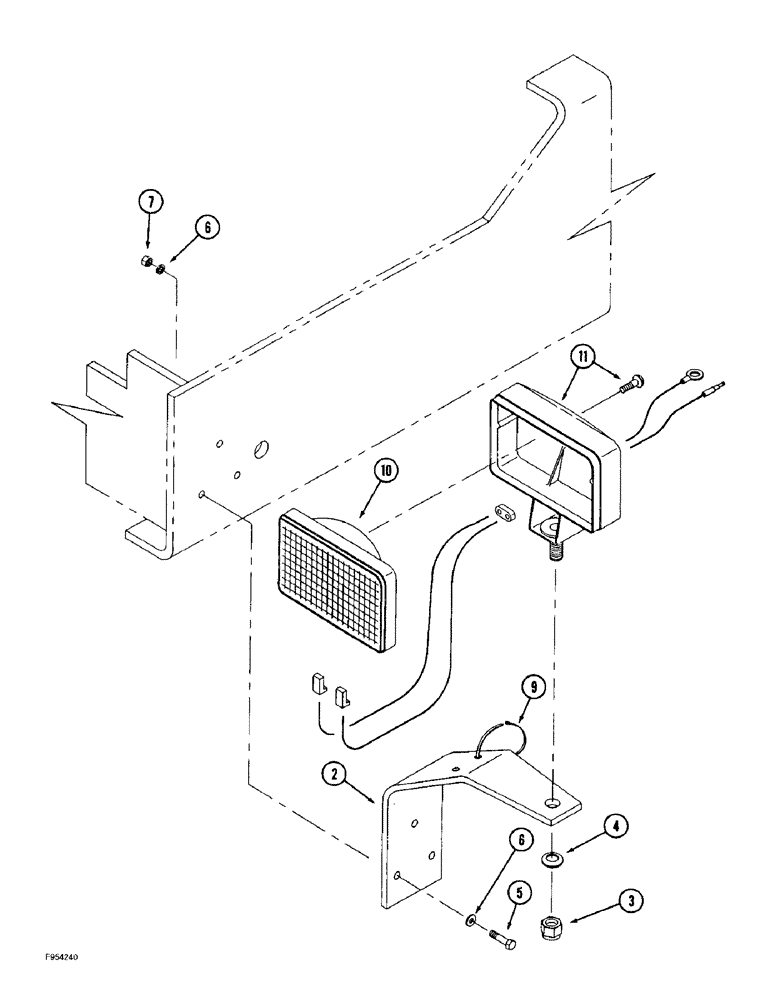

Схема запчастей Case IH 9330 - (4-046) - FRONT FRAME WORK LAMPS (04) - ELECTRICAL SYSTEMS
9
6
11
7
5
4
10
3
6
2

Артикул

Название

Примечание

Количество

2

70-6773T1

SUPPORT

BRACKET - mounting

2шт.

3

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

4

D37049

WASHER

- lock, 1/2 inch

2шт.

5

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

6шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

12шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - work, replaces 20-1730T92 lamp, Includes: Ref. 10 and 11

2шт.

10

20-1822T1

LAMP BASE

LENS - sealed beam

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - bracket

1шт.

Выбрано товаров: 10
