Запчасти Case IH 9330 (4-044) - LAMP ASSEMBLIES - HEAD LAMP / TAIL LAMP (04) - ELECTRICAL SYSTEMS

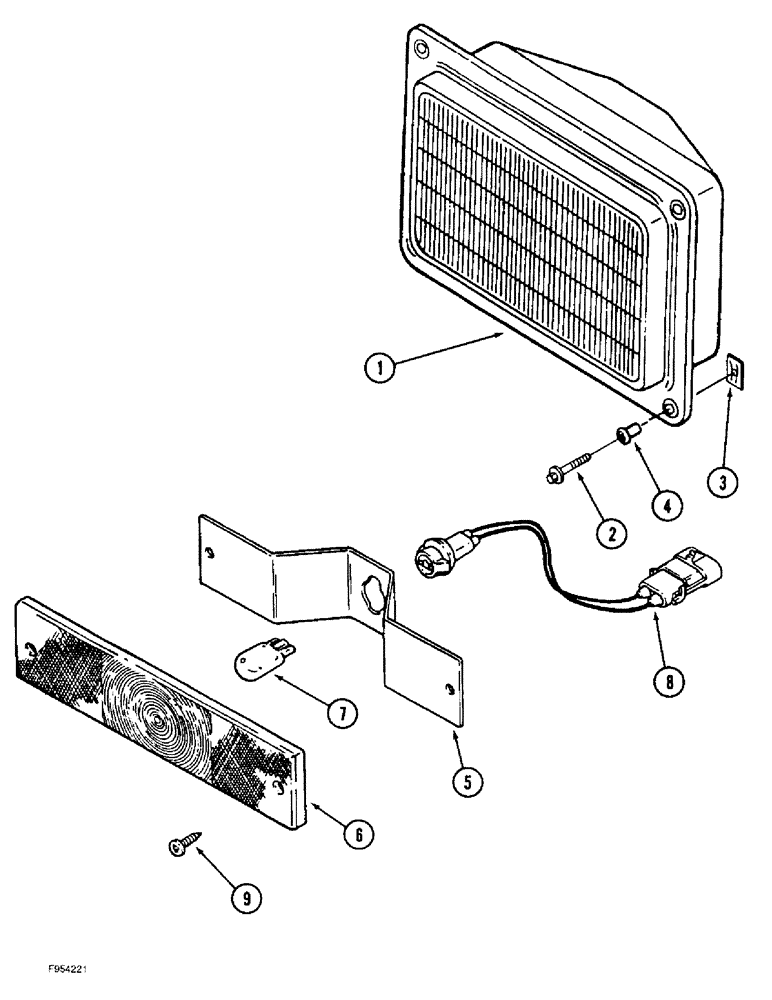

Схема запчастей Case IH 9330 - (4-044) - LAMP ASSEMBLIES - HEAD LAMP / TAIL LAMP (04) - ELECTRICAL SYSTEMS
7
6
8
3
4
5
9
1
2

Артикул

Название

Примечание

Количество

1

60-6730T91

HEADLIGHT

LAMP - head, Incl 1A

2шт.

1a

60-6731T1

LAMP

Sealed Beam W/O Frame

2шт.

2

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch

8шт.

3

60-7095T1

STEEL SHEET NUT

NUT - clip

8шт.

4

60-6843T1

BUSHING

- brass

8шт.

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp, assembly

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - tail lamp, assembly

1шт.

7

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, tail assembly

1шт.

8

A186201

WIRE HARNESS

HARNESS - includes socket, tail lamp assembly

1шт.

9

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAPPING, pan Phillips, No. 8-18 x 1", Tail lamp assy

4шт.

Выбрано товаров: 11
