Запчасти Case IH 9330 (4-038) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

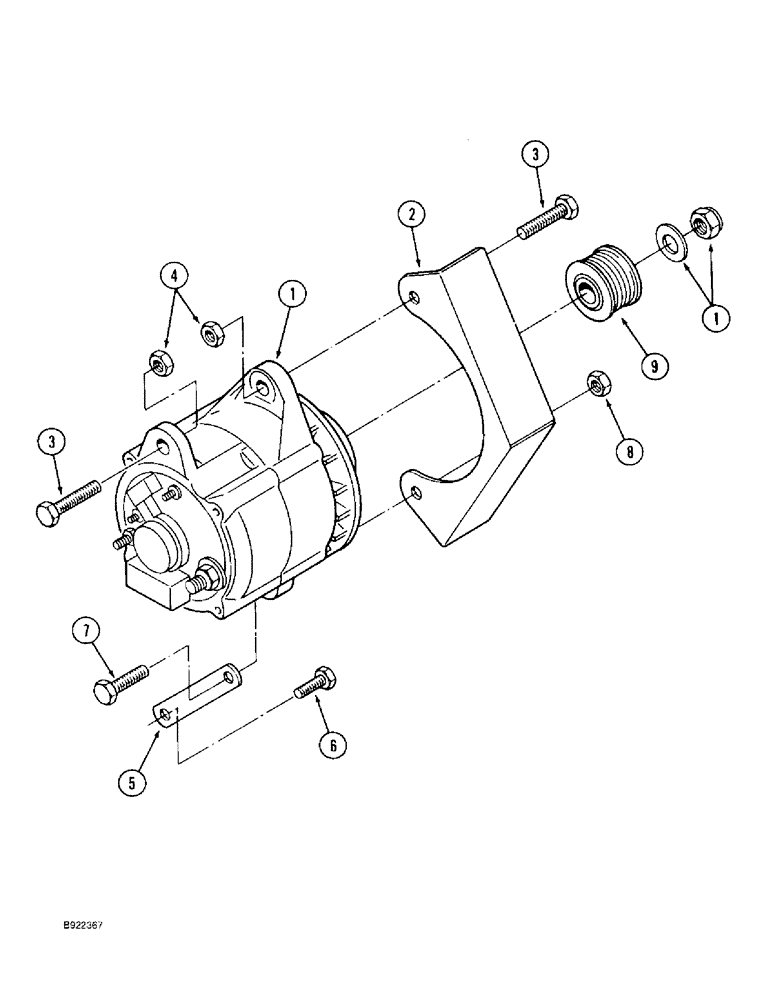

Схема запчастей Case IH 9330 - (4-038) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
8
1
7
5
9
4
6
3
1
3
2

Артикул

Название

Примечание

Количество

1

1987560C1

ALTERNATOR

ASSEMBLY - engine, 125 amp, parts list Figure 4-40

1шт.

1

1987560C1GV

ALTERNATOR

Value, 12V, 125A

1шт.

1

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere,

1шт.

1

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

70-5828T1

GUARD

SHIELD - alternator

1шт.

3

857-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

- hex flange, 12 - 1.75 x 60 mm, class 10.9

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

J911485

SUPPORT

BRACE - alternator

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

9

A189616

PULLEY

- alternator

1шт.

Выбрано товаров: 12
