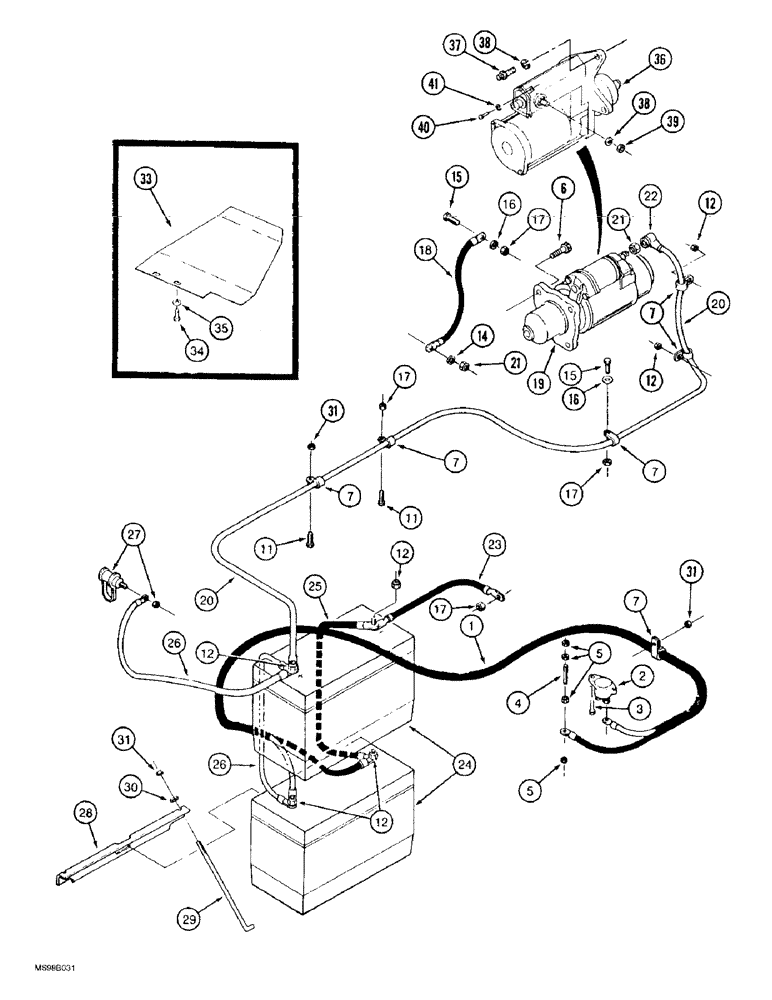

Запчасти Case IH 9330 (4-030) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

20-1972T1

HARNESS

HARNESS - cab power

1шт.

2

20-2041T1

CIRCUIT-BREAKER

BREAKER - circuit

1шт.

3

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

4

60-1880T1

STUD

STUD - ground

1шт.

5

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

4шт.

6

A177921

BOLT,12 Pt Hd, M12 x 1.75 x 50mm, Gr 8.8

BOLT - mounting, starter

3шт.

7

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

CLAMP, , P-type 15/16", Insul, 3/8" Bolt

6шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex, 3/8"-16 x 1", G8, Full Thd

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

6шт.

14

495-11053

WASHER,1/2", SAE

WASHER, (17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

15

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

16

495-21044

WASHER,3/8"

WASHER, (7/16 x 1 x 5/64 inch) 3/8"

1шт.

17

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

7шт.

18

60-6785T1

CABLE

CABLE - starter, ground

1шт.

19

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figures 4-32 and 4-34, Serial Range: -JEE0069097

1шт.

19

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

19

AC187728

CORE-STARTER

Return Part Number

1шт.

19

A187728GV

STARTER MOTOR

Value

1шт.

20

20-2370T1

CABLE

CABLE, Serial Range: --starter

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Use with A187728 starter, Ref. 19 1/2"-13, G5

1шт.

22

20-2424T1

BOOT

BOOT - cable end

1шт.

23

60-6790T1

CABLE

CABLE - battery

1шт.

24

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

2шт.

25

1-4965

CABLE

CABLE - jumper, negative

1шт.

26

20-2425T1

CABLE

CABLE - jumper, positive

2шт.

27

1964554C1

TERMINAL

STUD - positive terminal

1шт.

28

70-5548T1

ANGLE BAR

BRACKET - angle

2шт.

29

198185A1

TRUSS ROD,5/16" - 18 x 9.7"

BOLT - J-type, battery hold down, replaces 377837R1 rod

4шт.

30

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

31

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

33

60-6867T1

COVER

COVER - cab power supply

1шт.

34

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

BOLT - hex, 1/4 NC x 3/4 inch, grade 8

2шт.

35

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

36

193432A1

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-36, Start Serial: JEE0069097

1шт.

36

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

36

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number, Starter 12 volt, 4.0KW

1шт.

37

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange, 12 - 1.75 x 35 mm, class 12.9

3шт.

38

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

39

829-1412

NUT,M12, Cl 10.9

NUT - hex, 12 mm - 1.75, class 10

1шт.

40

258820A1

SCREW

SCREW - special, 5 x 8 mm

1шт.

41

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.
