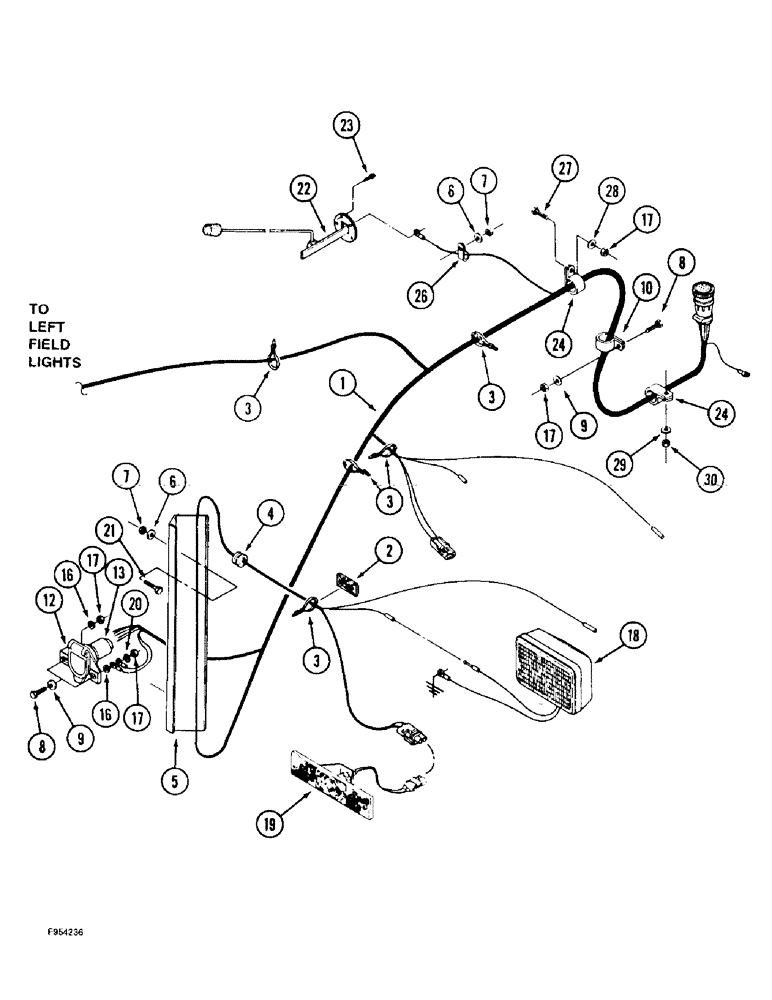

Запчасти Case IH 9330 (4-022) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6786T1

HARNESS

- rear frame

1шт.

2

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

4

31-2242

GROMMET

- protective

2шт.

5

70-6770T1

GUARD

- wire

2шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.

8

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

2шт.

12

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - covered, 7 Pin

1шт.

13

481849C1

PROTECTIVE COVER

BOOT - wiring harness

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - flood, parts list Figure 4-42, replaces 20-1730T92 lamp

2шт.

19

A186202

LAMP

ASSEMBLY - tail, parts list Figure 4-44

2шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

21

426-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 8

- hex, 1/4 NC x 1-3/4 inch, grade 8

4шт.

22

60-6831T91

SENDER UNIT

SENSOR - fuel

1шт.

23

463-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- machine, hex washer head, No. 10 NC x 1/2 inch

5шт.

24

515-23508

CLAMP,2", Insul, 3/8" Bolt

- P-type, 2 inch ID

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

27

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.
