Запчасти Case IH 9330 (4-020) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

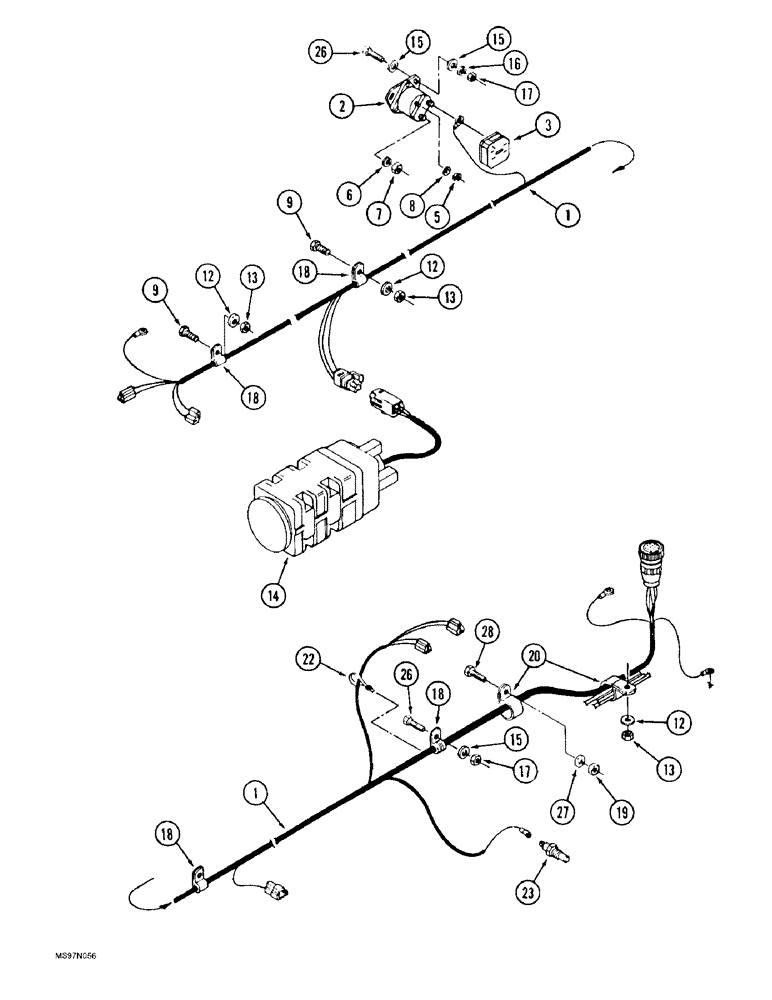

Схема запчастей Case IH 9330 - (4-020) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS
12
23
1
14
18
8
17
18
26
17
13
18
3
15
19
5
9
16
28
15
13
22
12
6
26
12
20
7
15
1
2
18
227
9
13

Артикул

Название

Примечание

Количество

1

60-7075T2

HARNESS

- front frame

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 2 - 9

1шт.

2

183038A1

SOLENOID

SWITCH - solenoid with cover

1шт.

3

178148A1

COVER

- solenoid switch

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, not shown

2шт.

5

225-14210

NUT,#10-32

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

228760A1

RADAR

SENSOR - speed, ground, replaces 1983294C1 sensor

1шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

4шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

20

515-23508

CLAMP,2", Insul, 3/8" Bolt

- P-type, 2 inch ID

2шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

23

20-1989T1

SWITCH

- temperature, hydraulic oil

1шт.

26

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

28

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

Выбрано товаров: 24
