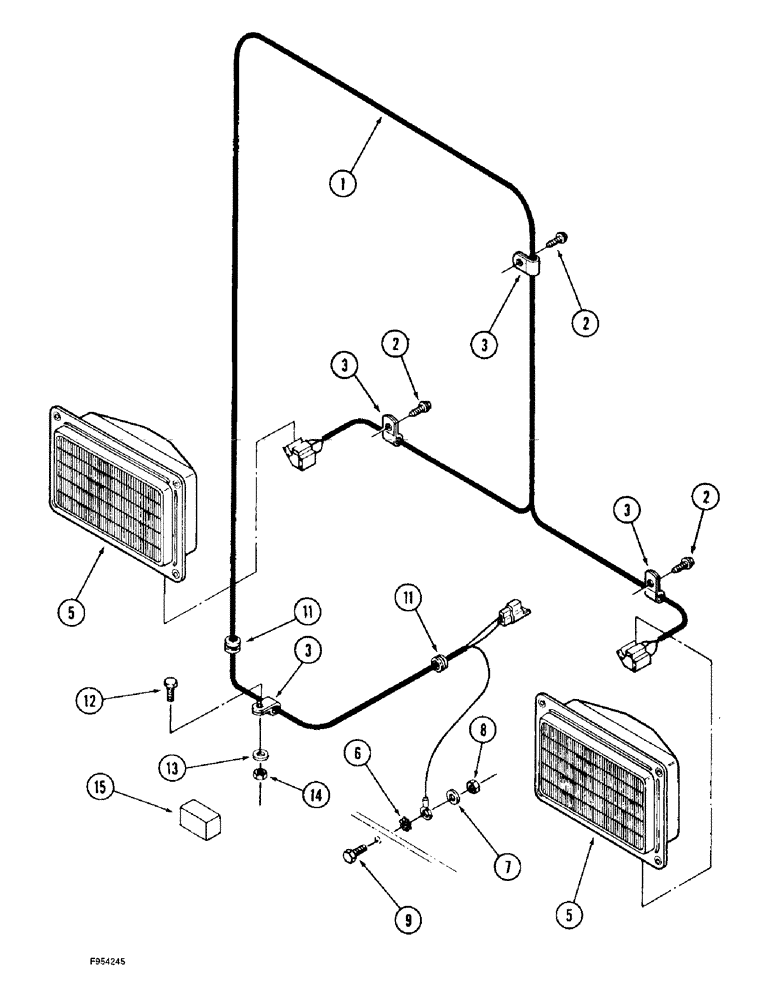

Запчасти Case IH 9330 (4-018) - FRONT HEADLAMP HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6783T2

HARNESS

- headlamp, front

1шт.

2

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

3

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

5

60-6730T91

HEADLIGHT

LAMP - head, see Figure 4-40 for lamp mounting

1шт.

6

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

31-2242

GROMMET

- protective

2шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - foam, 2-1/2 inch, order 70-6214T1 bulk seal, see below

1шт.

70-6214T1

SEAL

- foam, bulk, 25 (1) x 51 (2) x 3048 mm (120 inch) long

1шт.
