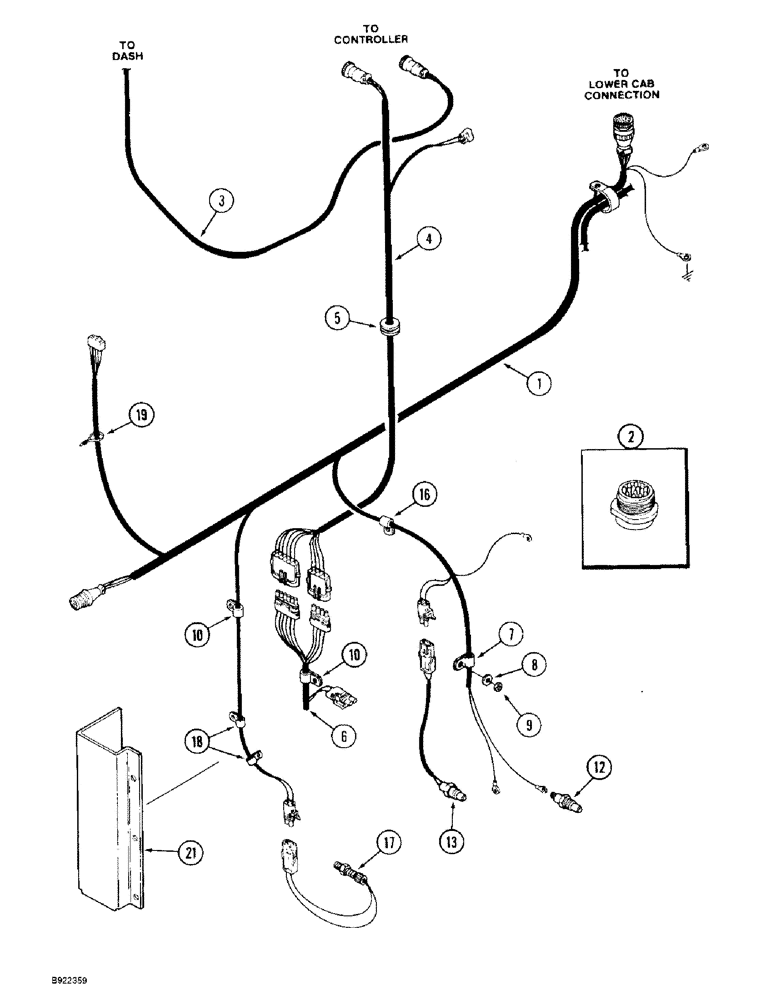

Запчасти Case IH 9330 (4-016) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7163T1

HARNESS

- transmission, Includes: Ref. 2

1шт.

2

60-6638T1

PLUG

CONNECTOR - male plug

1шт.

3

60-6089T1

HARNESS

- dash display

1шт.

4

60-6288T1

HARNESS

- transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

60-6800T1

HARNESS

- transmission solenoid

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

12

20-1989T1

SWITCH

- temperature

1шт.

13

1964538C1

SWITCH

- temperature

1шт.

16

358986R1

CABLE CLIP

CLAMP - P-type, harness

2шт.

17

60-7204T1

SENSOR

- magnetic, RPM

1шт.

18

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

19

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

21

50-3322T2

SHIELD

COVER - protective, transmission solenoids

1шт.
